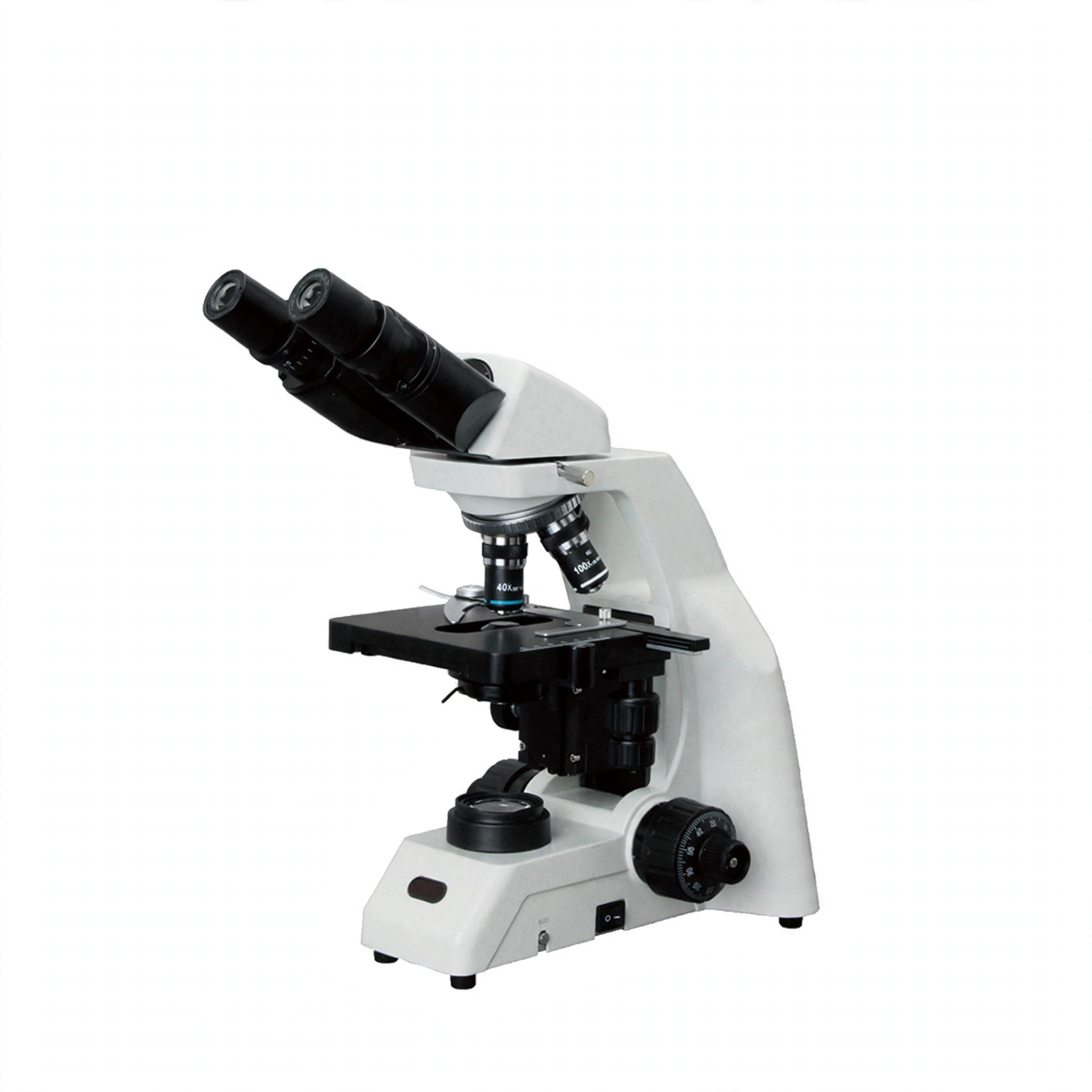

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
DM-125 | DM-300M | |
|
Optical System |
Infinite Optical System | / | √ |
| Finite Optical System | √ | / | |
|
Viewing Head |
Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | √ | / |
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | / | |
| Seidentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | √ | |
| Seidentopf Trinocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | ● | |
| MD101Microscope Camera with HD Monitor, 5M pixels, Colour CMOS | ● | ● | |
|
Eyepiece |
Wide Field Eyepiece WF 10×/18 | √ | √ |
| Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment | / | ● | |
|
Objective |
Achromatic Objective 4×,10×,40×,100× | √ | / |
| Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100× | / | √ | |
| Infinite Plan Achromatic Objectives 4×,10×,40×,100× | / | ● | |
|
Nosepiece |
Backward Quadruple Nosepiece | √ | / |
| Quadruple Nosepiece | / | √ | |
|
Stage |
Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | √ | / |
| Double Layers Mechanical Stage 140mm×130mm/ 75mm×50mm | / | √ | |
|
Condenser |
NA1.25 Abbe Condenser | √ | / |
| Sliding-in Centerable condenser NA1.25 | / | √ | |
| Dark Field Condenser (Dry, Oil) | ● | / | |
|
Focusing System |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,
Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 15mm |
/ | √ |
| Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | √ | / | |
|
Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable | ● | ● |
| S-LED Illumination, Brightness Adjustable | √ | √ | |
| Accessories | Phase Contrast Kit, Fluorescent Attachment, Polarization Set | ● | ● |
| Power Supply | AC 110–220V, 50/60HZ | √ | √ |
| Packing Size(mm) | 380*270*470(DM-125 Main body) 350*350*640(DM-300M) | √ | √ |
| Gross Weight(kg) | 8.5(DM-125 Main body); 12(DM-300M) | √ | √ |
Note: √ Standard Outfit, ● Optional, Without this feature Trinocular microscope can be installed camera and screen.
