Biological microscope is a kind of precision optical instrument used to observe biological sections, biological cells, bacteria and living tissue culture, fluid precipitation, etc. It can also observe other transparent or translucent objects as well as powder, fine particles and other objects. Biological microscope is used for medical and health units, colleges and universities, research institutes for the observation of microorganisms, cells, bacteria, tissue culture, suspension, sediment, etc., can continuously observe the process of reproduction and division of cells, bacteria, etc., in culture medium. It is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:

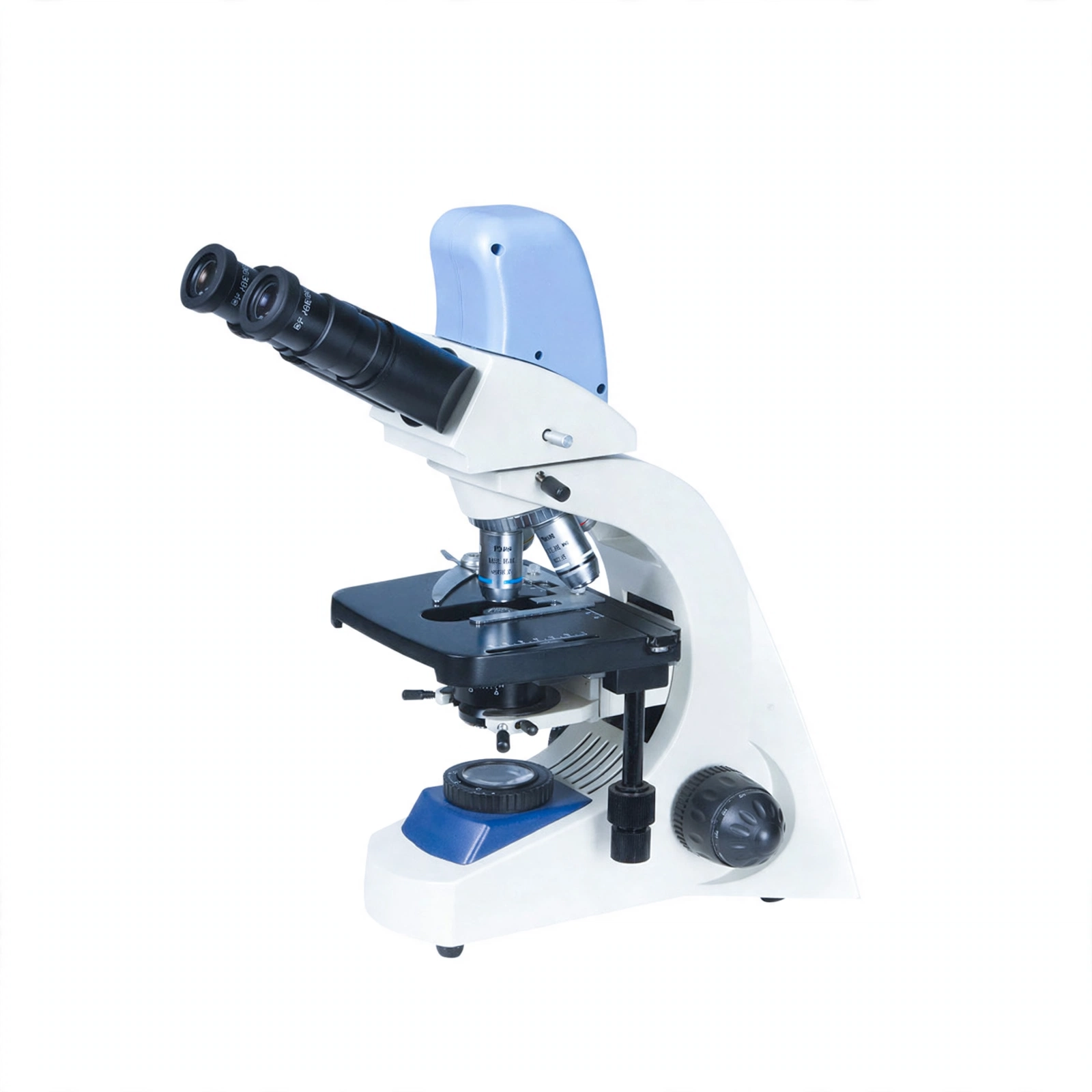

| Model | DM-18NS |
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece | WF10X/22mm |
| Infinite Plan Achromatic Objective | 4X, 10X, 40X(S), 100X(S, Oil) |
| Focusing | Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm |
| Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm＆Filter |
| Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter | Blue, yellow, green |
| Imaging System | 3M CMOS |
| Power Supply | AC85~240V, 50/60Hz |
| Package Size | 380*300*580mm |
| Gross Weight | 8.4kg |
