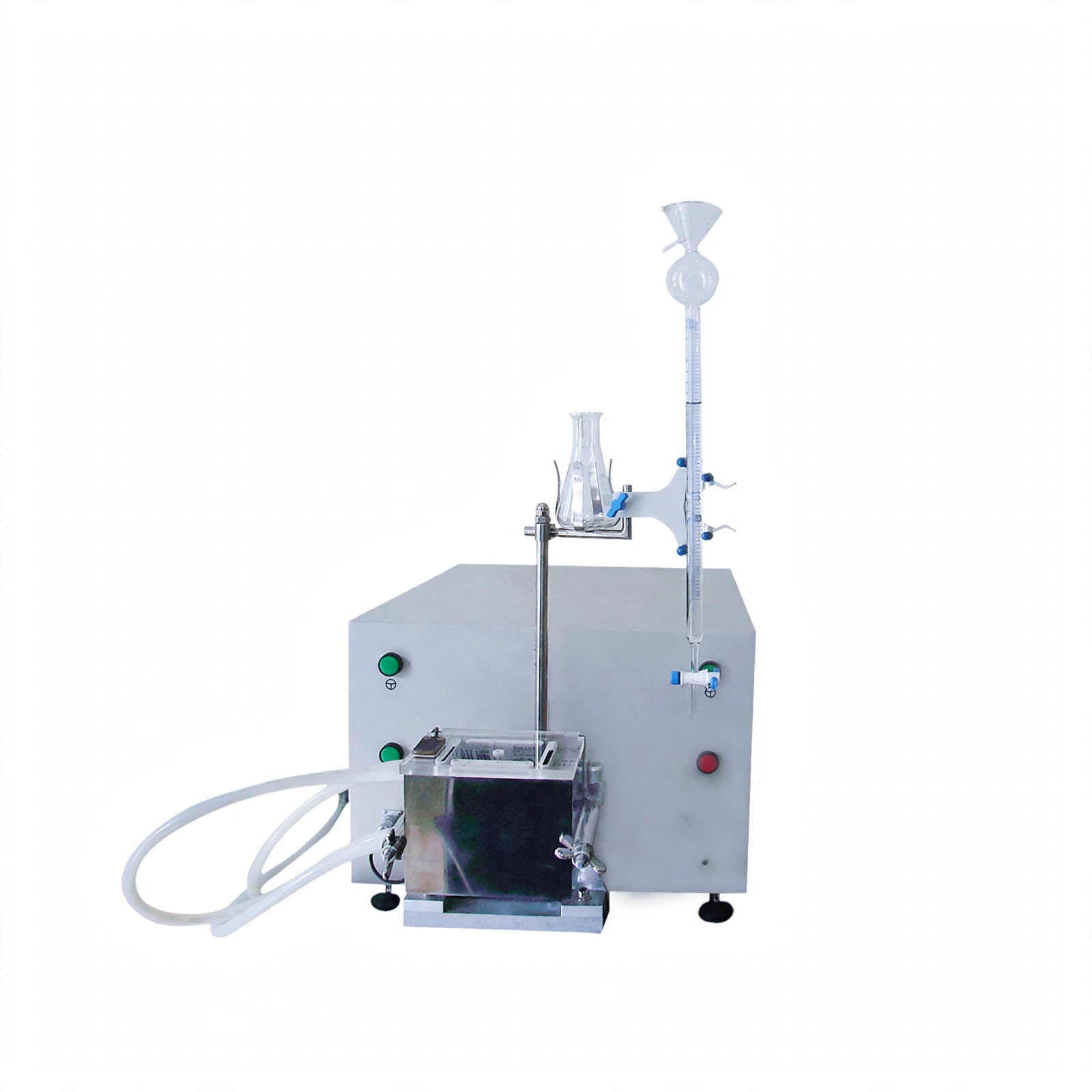

Digital Flour Quality Analyzer FQA-150

Model FQA-150

FQA-150 is a special instrument for wheat flour quality testing. It mainly measures the water absorption rate, formation time, stability time and weakening degree of flour, and comprehensively evaluates the physical characteristics of wheat through the above indexes.

Max. speed
Main douching cutter…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* Flour-rubbing bowl can be changed at will, program automatic identification to bowl type and automatic adjust to corresponding program. * Overload protection function, alarm and shutdown when the mixing torque is too large.* One-button automatic water system,energy-saving and efficient. * Simultaneously display up to 12 flour quality charts, which facilitates contrasting their differences. Results saved in Access database, the consult is convenient. * Multiple security measurements, double-button to start, open the cover, machine will stop  automatically. * Intelligent programs respond to instrument movement. * With data collection, drawing silty curve, analysis of silty test parameters, save and other automatic functions.

* USB interface, really support hot swap, plug and play.

* data saved in Access format, available Microsoft Access, easy access.

Technical Parameter:

Model FQA-150
TorqueRange 1-10NM
Accuracy no more than 0.5% measuring range
Rotating Speed Main douching cutter : 63r/min±1r/m

Sub-douching cutter : 94.5r/min±1r/m

Coordinate Scale Range horizontal axis: 0-20min

vertical axis: 0–1000FU

Horizontal Axis Speed: 1.00mm/min
Sample Weight 300g (300g bowl) or 50g(50g bowl)
Unit Torque 300g: 9.8mN.m/FU

50g: 1.96mN.m/FU

Package Size 1120*720*840mm, 440*500*790mm
Gross Weight 110kg
The details

Specifications

Model
FQA-150
Torque Range
1-10NM
Accuracy
no more than 0.5% measuring range
Rotating Speed
Main douching cutter : 63r/min±1r/m Sub-douching cutter : 94.5r/min±1r/m
Coordinate Scale Range
horizontal axis: 0-20min vertical axis: 0-1000FU
Horizontal Axis Speed:
1.00mm/min
Sample Weight
300g (300g bowl) or 50g(50g bowl)
Unit Torque
300g: 9.8mN.m/FU 50g: 1.96mN.m/FU
Package Size
1120*720*840mm, 440*500*790mm
Gross Weight
110kg
