The principle of the melting point apparatus is based on the phase transition process of matter, that is, the transition from a solid to a liquid state. When measuring with a melting point meter, first place the sample to be tested in the sample chamber and ensure that the sample is in a solid state. Then, heat is applied to the sample through a heating system, gradually increasing the temperature of the sample. At the same time, the observation system records and displays the temperature change curve of the sample. When the sample reaches its melting point, the solid material begins to melt into a liquid state. This process absorbs heat, causing a noticeable steep drop in the temperature curve. The melting point meter determines the melting point of a substance by monitoring this temperature change.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Can connect to a computer for data transferring.
2. Touch screen.
3. Use PID&PWM to control the temperature.
4. Real time melting curve.
5. Equipped with clock function.
6. Calculate average value of initial and final melting points automatically.
Technical Parameters:

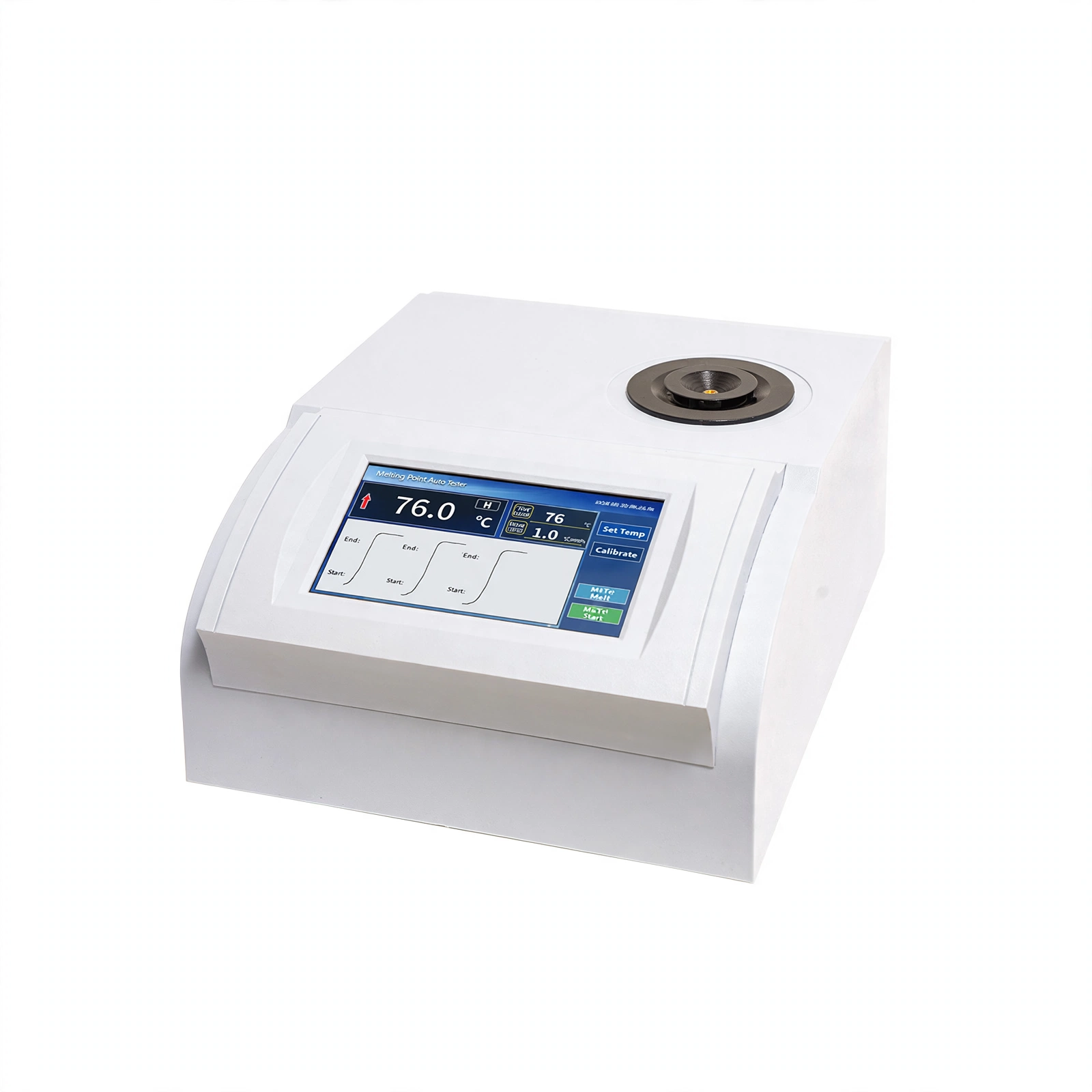

| Model | BMP-1B |
| Measuring Range | RT~320℃ |
| Resolution | 0.1℃ |
| Linear Heating-up Rate | 0.1℃/min~20℃/min |
| Temperature Accuracy | ±0.4℃(≤200℃), ±0.7℃(>200℃) |
| Repeatability | 0.3℃(Heating rate: 1.0℃/min) |
| Capillary Size | φ1.4mm(outside diameter), φ1.0mm(inside diameter), 90mm(length) |
| Sample Loading Height | 3mm |
| Data Storage | / |
| Interface | RS232, USB |
| Optional Accessory | Thermal printer |
| Power Supply | AC100~240V, 50/60Hz |
| External Size(W*D*H) | 360*290*170mm |
| Package Size(W*D*H) | 469*432*315mm |
| Gross Weight | 7.5kg |
