The principle of the melting point apparatus is based on the phase transition process of matter, that is, the transition from a solid to a liquid state.When measuring with a melting point meter, first place the sample to be tested in the sample chamber and ensure that the sample is in a solid state. Then, heat is applied to the sample through a heating system, gradually increasing the temperature of the sample. At the same time, the observation system records and displays the temperature change curve of the sample.When the sample reaches its melting point, the solid material begins to melt into a liquid state.This process absorbs heat, causing a noticeable steep drop in the temperature curve. The melting point meter determines the melting point of a substance by monitoring this temperature change.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. PID&PWM controller.
2. Touch screen.
3. Equipped with clock function.
4. The melting curve can be recorded automatically.
5. It can calculate average value of initial and final melting points automatically.
6. Can connect to a computer for data transferring.
Technical Parameters:
| Model | BMP-2C | BMP-1C |
| Measuring Range | RT~360°C | RT~400°C |
| Resolution |
0.1°C |
|
| Linear Heating-up Rate |
0.1°C/min~20°C/min |
|
| Temperature Accuracy |
±0.4°C(≤200°C), ±0.7°C(>200°C) |
|
| Repeatability |
0.3°C(Heating rate: 1.0°C/min) |
|
| Capillary Size |
φ1.4mm(outside diameter), φ1.0mm(inside diameter), 90mm(length) |
|
| Sample Loading Height |
3mm |
|
| Data Storage |
1000 sets |
|
| Thermal Printer | Standard | Optional |
| Interface |
RS232, USB |
|
| Power Supply |
AC 100~240V, 50/60Hz |
|
| External Size(W*D*H) |
360*290*170mm |
|
| Package Size(W*D*H) | 576*428*306mm | 469*432*315mm |
| Gross Weight | 8.5kg | 7.5kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

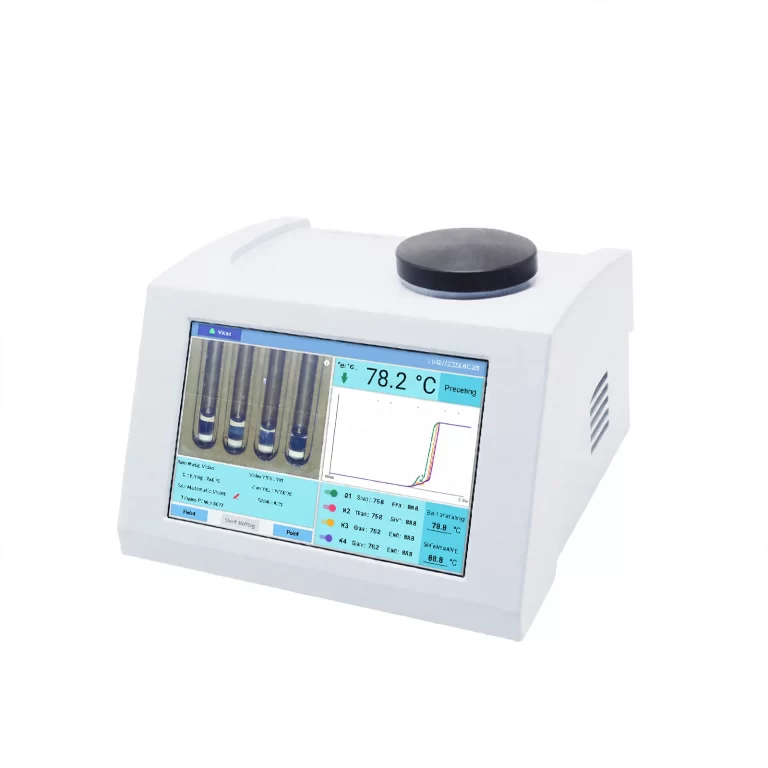

The Video Melting Point Apparatus is a cutting-edge laboratory instrument designed to determine the precise melting point of substances with high accuracy and visual clarity.
Application: This machine is used to determine the melting point of a substance. It is widely used in the chemical industry and pharmacy research. Such as measurement of spices, dyes and measurement of other organic c…
The principle of the melting point apparatus is based on the phase transition process of matter, that is, the transition from a solid to a liquid state. When measuring with a melting point meter, first place the sampl…
