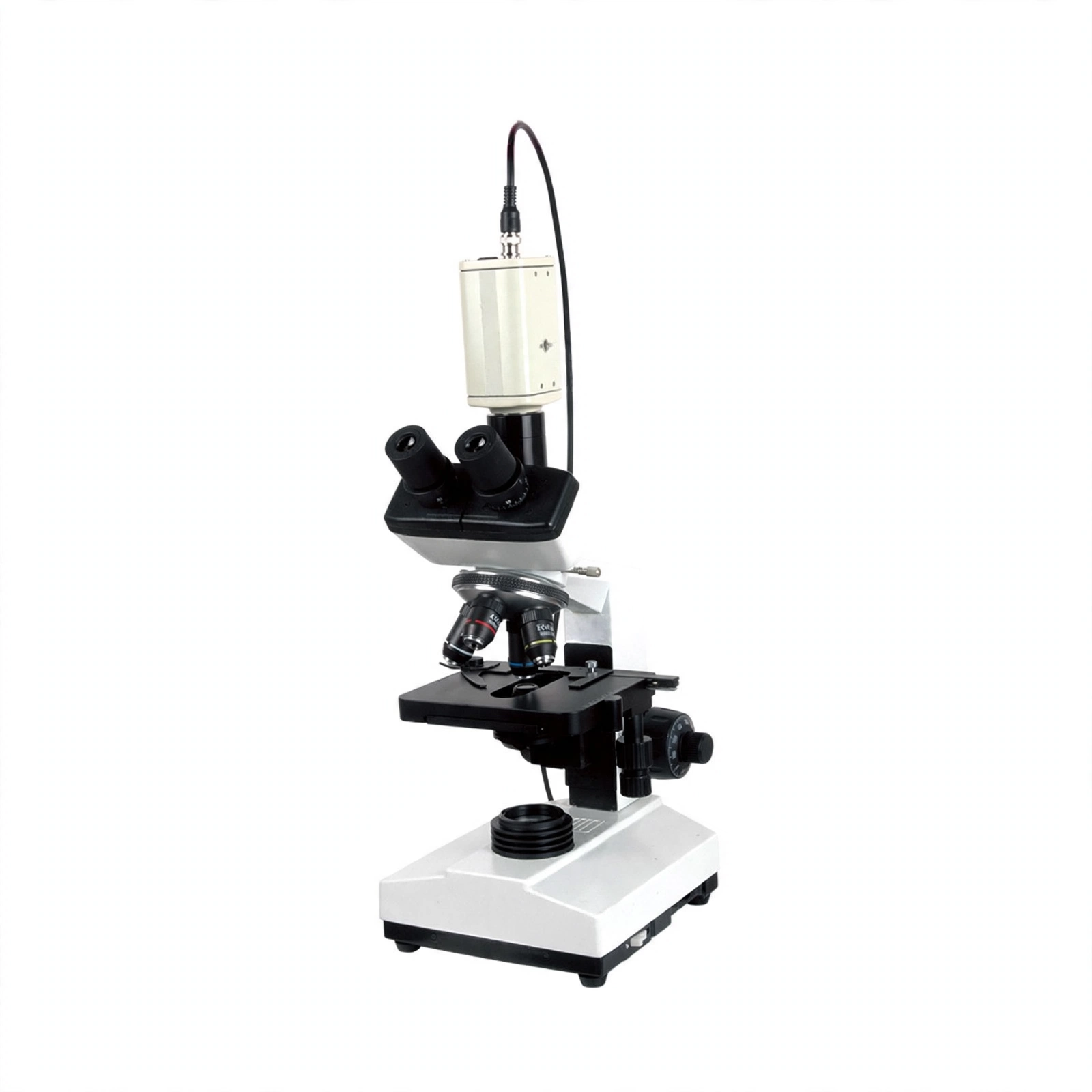

The Digital Microscope is an advanced imaging solution designed to offer high-resolution observation and precise analysis in scientific research, industrial inspection, and educational applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Specification |
Model |
||||
| BXTV-1 | BXTV-1A | BXTV-1B | BXM-1B | ||
|
Observation Head |
Translating trinocular head 45° tilt | √ | √ | ||
| Hinge trinocular head 30° tilt | √ | ||||
|
Camera |
Domestic CCD | √ | √ | ||
| Sony CCD | √ | ||||
| 10-inch LCD screen | √ | ||||
| Nosepiece | Multi-roller four-aperture objective lens converter | √ | √ | √ | √ |
| Eyepiece | WF10X/18mm | √ | √ | √ | |
|
Objective Lens |
Achromatic 4X, 10X, 40X(S), 100X(S, O) | √ | √ | √ | |
| Plan achromatic 4X, 10X, 40X(S), 100X(S, O) | √ | ||||
| Stage | Double-layer mechanical stage, platform size: 135*140mm | √ | √ | √ | √ |
| Condenser | Abbe NA1.25 condenser with variable aperture and filter, rack and pinion adjustable mechanism | √ | √ | √ | √ |
| Illumination | Built-in lighting 3W LED lamp | √ | √ | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
| Package | Foam carton | √ | √ | √ | √ |
| Packing Size(W*D*H) | 250*360*460mm | √ | √ | √ | |
| Gross Weight | 8kg | √ | √ | √ | |
| Packing Size(W*D*H) | 330*280*440mm; 320*270*150mm | √ | |||
| Gross Weight | 6kg; 3kg | √ | |||
Sony CCD:
| Image Sensor | 1/3 inch Sony CCD | Video Output | BNC 1.0VP |
| Signal System | PAL | Backlight Compensation | Off/On |
| Signal-to-noise Ratio | 50dB AGC | Electronic Shutter | Automatic aperture |
| Horizontal Resolution | 480 TV/540 lines/700 lines | Camera Interface | CS |
| Minimum Illumination | 0.01 Lux, F1.2 | White Balance | Automatic |
| Gain Control | Automatic | Power Supply | DC 12V |
Domestic CCD:
| Image Sensor | 1/3 inch Sony CCD | Video Output | BNC 1.0VP |
| Signal System | PAL | Backlight Compensation | Off/On |
| Signal-to-noise Ratio | 50dB AGC | Electronic Shutter | Automatic aperture |
| Horizontal Resolution | 700 lines | Camera Interface | CS |
| Minimum Illumination | 0.01 Lux, F1.2 | White Balance | Automatic |
| Gain Control | Automatic | Power Supply | DC 12V |
