Dispensing Booth

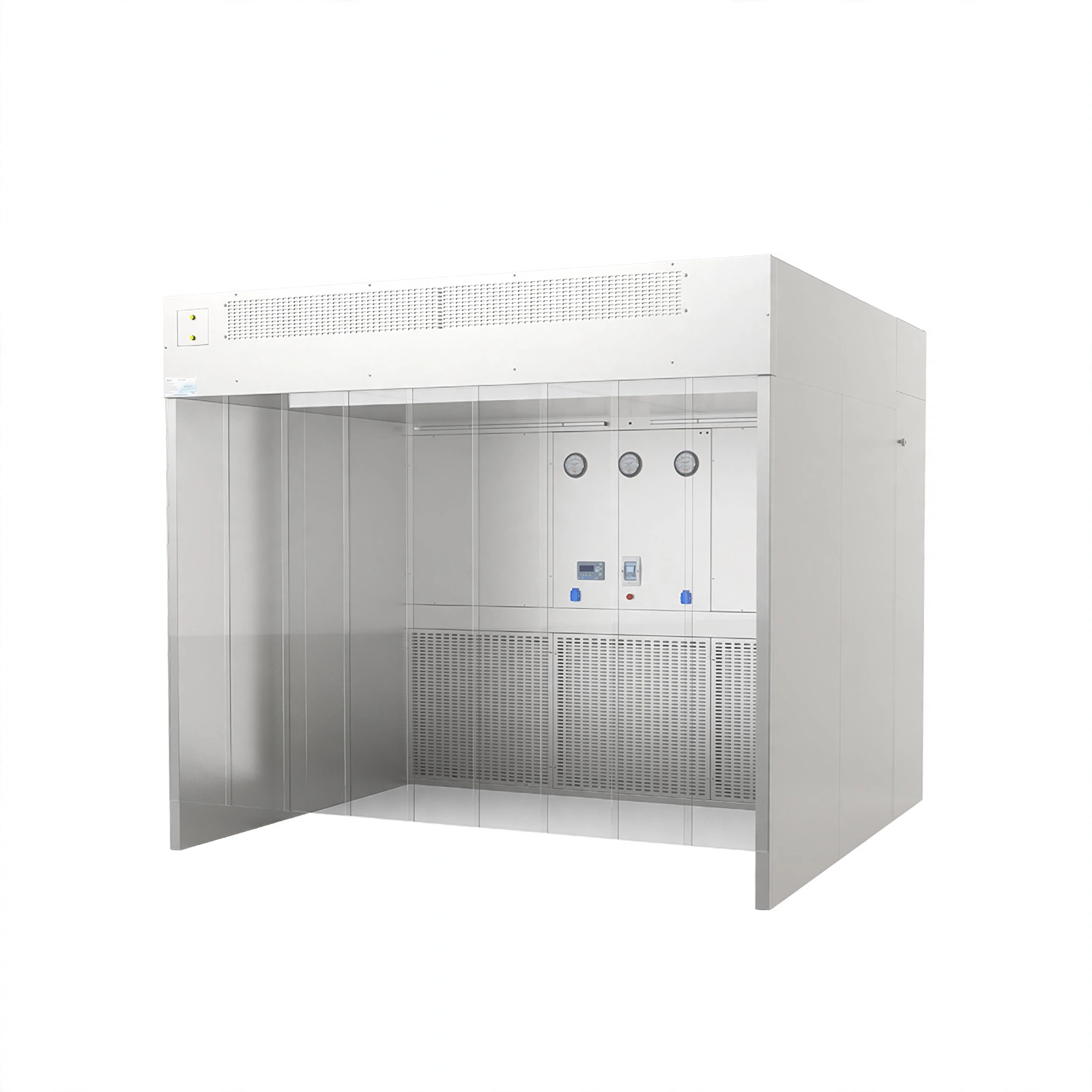

Dispensing Booth (Sampling or Weighing Booth)

Model BKDB-1200 BKDB-1800 BKDB-2400

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.

Technical Parameters:

Model BKDB-1200 BKDB-1800 BKDB-2400
Clean Level

ISO 5(Class 100), Class A
HEPA Filters

99.995% efficiency at 0.3μm
Air Volume

Supply air volume: ≤7500m³/h, Exhaust air volume: ≤2250m³/h, Adjustable
Material

Fully stainless steel
Air Velocity

0.3~0.6m/s, adjustable
Pressure Gauge

3pcs
Noise

≤75dB

UV Lamp

 30W*1 40W*1 30W*2

Emission of 253.7 nanometers, with UV timer

Illuminating Lamp

 14W*4 16W*4 16W*2&14W*4

LED lamp, Illumination: ≥500lux
Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption 500W 1000W 1700W
Sockets

2pcs
Work Area Size(W*D*H) 1200*1200*2000mm 1800*1800*2000mm 2400*1800*2000mm
External Size(W*D*H) 1300*1700*2400mm 1900*2300*2400mm 2500*2400*2400mm
Gross Weight 420kg 750kg 840kg
Package Size(W*D*H) 1440*2540*1980mm 2020*760*2420mm
2020*660*495mm
1950*530*2160mm		 2640*960*2380mm
2640*780*680mm
2640*560*2250mm

Customized design for clean level, size or material is available.
