Neonatal Care Products

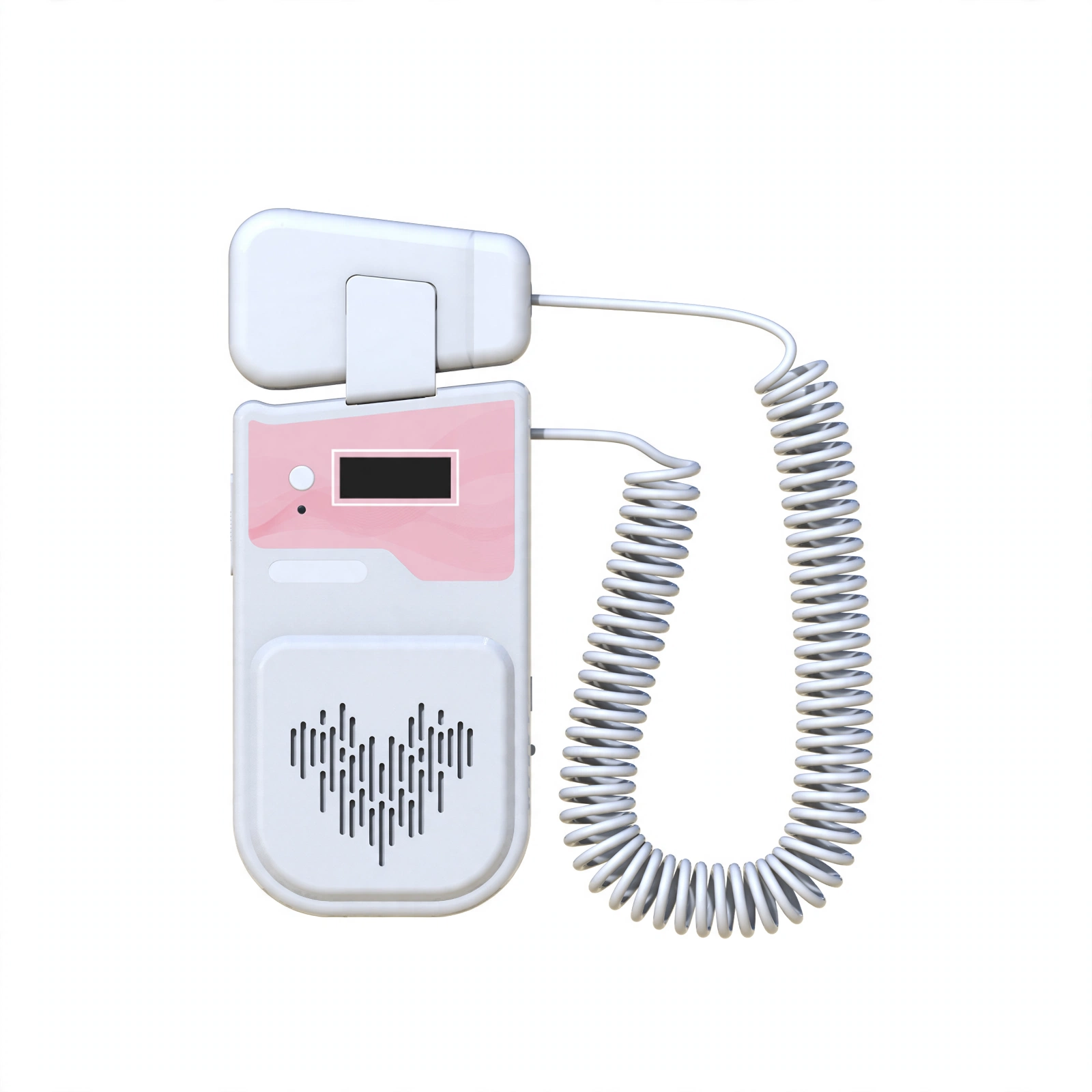

Doppler Fetal Monitor

Model BK-TH-8A Compact & portable

Applications: Doppler Fetal Monitor is a small and portable fetal heart rate monitoring instrument. It is suitable for fetal heart rate detection and fetal heart sound monitoring for middle and late pregnancy women. Using intelligent noise reduction technology, the fetal sound is clear, the measurement is accurate, safe and reliable, and it is a common fetal monitoring instrument for obstetrics and families.

Battery
DC9.6V battery
Net weight
260±20g
Dimensions
75*180*30mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

Technical Parameters:

Model BK-TH-8A
Ultrasonic Output Intensity 10mW/cm2
Ultrasonic Output Power 8mW
Nominal Acoustic Operating Frequency 3.0MHz
Measuring Precision 1bpm
Measuring Accuracy ≤±2bpm
ATM Range 70~106kPa
Ambient Temp. Range 5~40℃
RH Range 30%~80%
Battery Information DC9.6V battery
Power Supply AC100~240V, 50/60Hz
External Size(W*D*H) 75*180*30mm
Net Weight 260±20g(include battery)
Packing Size(W*D*H) 310*225*90mm
Gross Weight 1.1kg
The details

Specifications

Model
BK-TH-8A
Ultrasonic Output Intensity
10mW/cm2
Ultrasonic Output Power
8mW
Nominal Acoustic Operating Frequency
3.0MHz
Measuring Precision
1bpm
Measuring Accuracy
≤±2bpm
ATM Range
70~106kPa
Ambient Temp. Range
5~40℃
RH Range
30%~80%
Battery Information
DC9.6V battery
Power Supply
AC100~240V, 50/60Hz
External Size(W*D*H)
75*180*30mm
Net Weight
260±20g(include battery)
Packing Size(W*D*H)
310*225*90mm
Gross Weight
1.1kg
