Introduction The neonatal jaundice therapy apparatus is widely used in the clinical treatment of neonatal hyperbilirubinemia. Bilirubin is photosensitive; under the combined effect of light and oxygen, fat-soluble bilirubin is oxidized into water-soluble metabolites, which can be excreted from the body via bile or urine, thereby effectively reducing the concentration of serum unconjugated bilirubin.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Application:

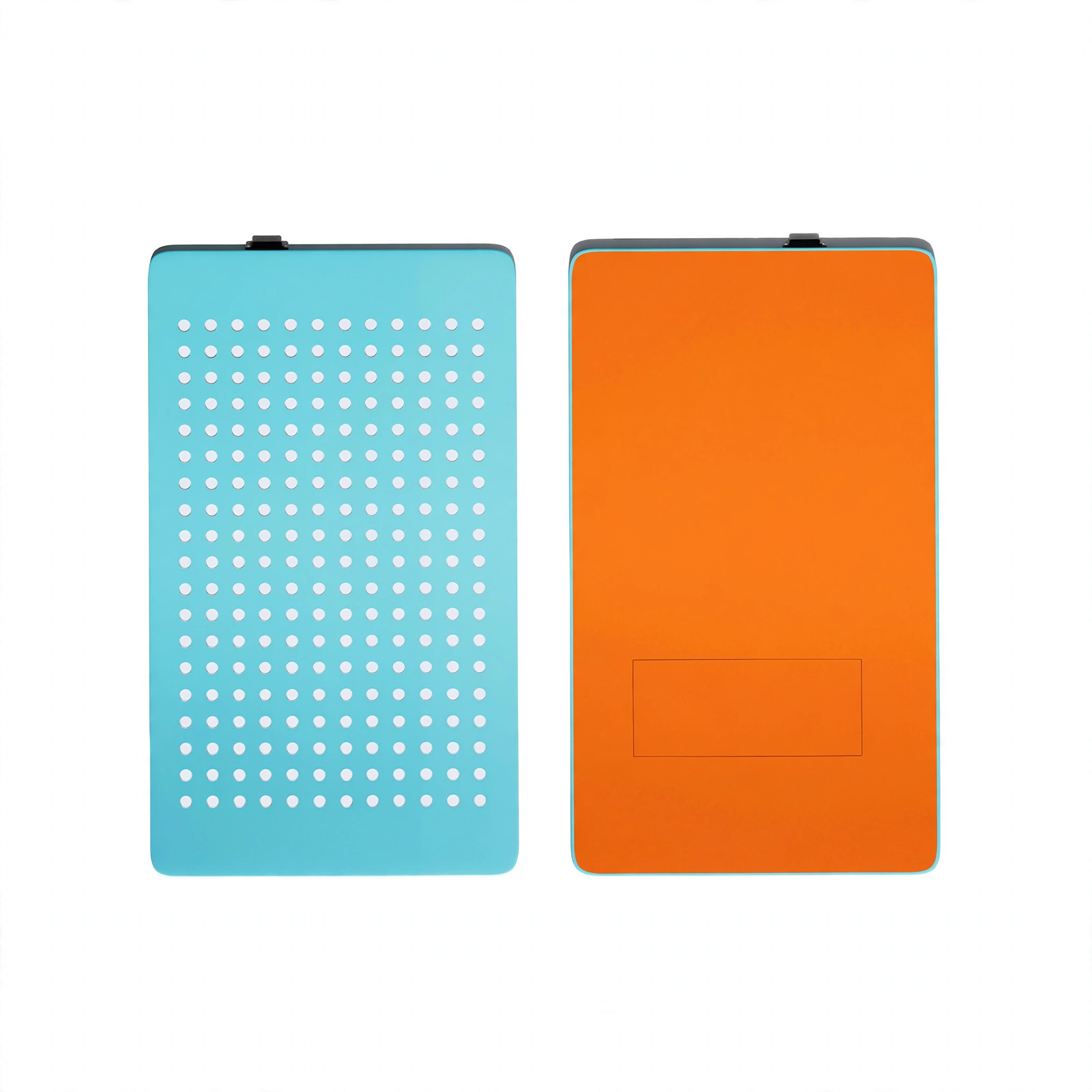

This device is intended for the clinical treatment of neonatal jaundice. It is designed to be positioned beneath the neonate to deliver upward-directed phototherapy.
Technical Parameters：
| Model | BHZ-003 |
| Light Source | LED |
| Dominant Wavelength of Blue Light | 425~475nm |
| LED Lifetime | 50000h |
| Product Service Life | 6 years |
| Timing Operating Modes | 3H, 9H, 12H |
| Irradiance Levels | 3-grade adjustable(H,M,L) |
| Effective Treatment Area | 400* 240mm |
| Total Bilirubin Phototherapy Irradiance | H: 1.8mW/cm² ± 0.5mW/cm²
M: 1.5mW/cm² ± 0.5mW/cm² L: 1mW/cm² ± 0.5mW/cm² |
| Irradiance Uniformity (for Bilirubin Phototherapy) | ≥0.4 |
| Infrared Radiation | ≤10mW/cm² within the effective irradiation area |
| Ultraviolet Radiation | ≤0.00001mW/cm² within the effective irradiation area (180nm < λ ≤ 400nm) |
| Noise | ≤45dB(A) |
| Power Supply | AC100~240V; 50/60Hz |
| External Size(W*D*H) | 475* 277*6mm |
| Packing Size(W*D*H) | 600*315*70mm |
| Net Weight | 1kg |
| Gross Weight | 2kg |
