Fume Hood

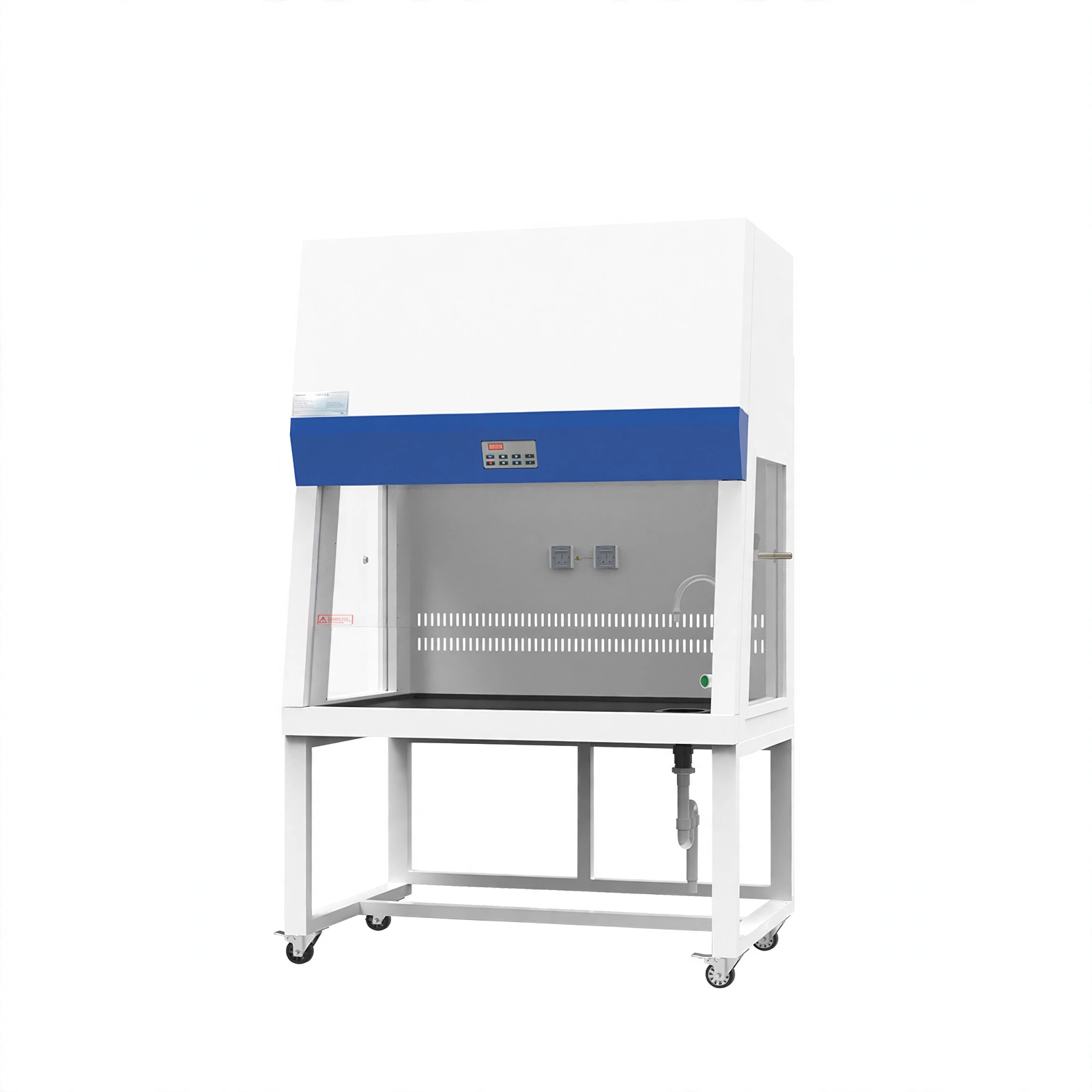

Ducted Fume Hood FH(X) series

Model FH1000(X) FH1200(X) FH1500(X) FH1800(X)

Fume Hood is a kind of negative pressure ventilation system for protecting operator and laboratory environment. Room air flows inward from the front opening of the Fume Hood and is consistently ventilated by the extract blower. Therefore, contaminated fumes, vapors, toxic gasses, aerosol and corrosive substance which are probably generated during experiments could be prevented from spreading to the operator or into the laboratory room. In addition, the polluted air could be purified by the active carbon filter before exhausting through the duct. Thus, the outdoor environment could also be protected.

Power
400W / 400W / 500W /…
Noise
≤68dB
Dimensions
1000*840*2150mm / 120…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:
1. UV lamp for sterilization.
2. Motorized front glass window.
3. Resistant to weak acid and alkali.
4. Adjustable air speed: 9 levels.
5. Alarm when filter working time 3500 hours.
6. With memory function in case of power-failure.
7. Back side air compensation, to avoid turbulence in work area.
8. 8°slope front ergonomics design, fatigue-free working posture.

9. Microprocessor control system, LED display shows filter working time.

10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.

Technical Parameters:

Model FH1000(X) FH1200(X) FH1500(X) FH1800(X)
External Size(W*D*H) 1000*840*2150mm 1200*840*2150mm 1500*840*2150mm 1800*840*2150mm
Internal Size(W*D*H) 880*730*745mm 1080*730*745mm 1380*730*745mm 1680*730*745mm
Max Opening

520mm
Work Surface Height

750mm
Blower

Built-in centrifugal blowers, Speed adjustable with 9 levels
Air Velocity

0.3~0.8m/s
System Exhaust Volume 630m³/h 780m³/h 990m³/h 1210m³/h
Noise

≤68dB
LED Lamp 8W*1 for 110V

20W*1 for 220V

 12W*1 for 110V

20W*1 for 220V

 16W*1 for 110V

40W*1 for 220V

 16W*1 for 110V

40W*1 for 220V

UV Lamp

20W

 30W
Emission of 253.7 nanometers for most efficient decontamination

Front Window

Motorized; 5 mm toughened glass, anti-UV
Material

Exterior body: Cold-rolled steel with anti-bacteria powder coating.

Work table: Chemical resistant phenolic resin
Waterproof Socket 1pc 2pcs 2pcs 2pcs
Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption 400W 400W 500W 500W
Standard Accessory

Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch
Optional Accessory

HEPA filter
Gross Weight 230kg 253kg 290kg 340kg
Package Size(W*D*H) 1150*1120*1680mm 1350*1120*1680mm 1650*1120*1680mm 1950*1120*1680mm
The details

Specifications

Model
FH1000(X) / FH1200(X) / FH1500(X) / FH1800(X)
External Size(W*D*H)
1000*840*2150mm / 1200*840*2150mm / 1500*840*2150mm / 1800*840*2150mm
Internal Size(W*D*H)
880*730*745mm / 1080*730*745mm / 1380*730*745mm / 1680*730*745mm
Max Opening
520mm
Work Surface Height
750mm
Blower
Built-in centrifugal blowers, Speed adjustable with 9 levels
Air Velocity
0.3~0.8m/s
System Exhaust Volume
630m³/h / 780m³/h / 990m³/h / 1210m³/h
Noise
≤68dB
LED Lamp
8W*1 for 110V20W*1 for 220V / 12W*1 for 110V20W*1 for 220V / 16W*1 for 110V40W*1 for 220V / 16W*1 for 110V40W*1 for 220V
UV Lamp
20W / 30W / 30W / 30W
UV Lamp
Emission of 253.7 nanometers for most efficient decontamination
Front Window
Motorized; 5 mm toughened glass, anti-UV
Material
Exterior body: Cold-rolled steel with anti-bacteria powder coating.Work table: Chemical resistant phenolic resin
Waterproof Socket
1pc / 2pcs / 2pcs / 2pcs
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption
400W / 400W / 500W / 500W
Standard Accessory
Water tap, Gas tap, Water sink, Base stand, UV lamp*2, LED lamp, Socket, 5 meters exhaust duct, Active carbon filter, Foot switch
Optional Accessory
HEPA filter
Gross Weight
230kg / 253kg / 290kg / 340kg
Package Size(W*D*H)
1150*1120*1680mm / 1350*1120*1680mm / 1650*1120*1680mm / 1950*1120*1680mm
