Fume Hood

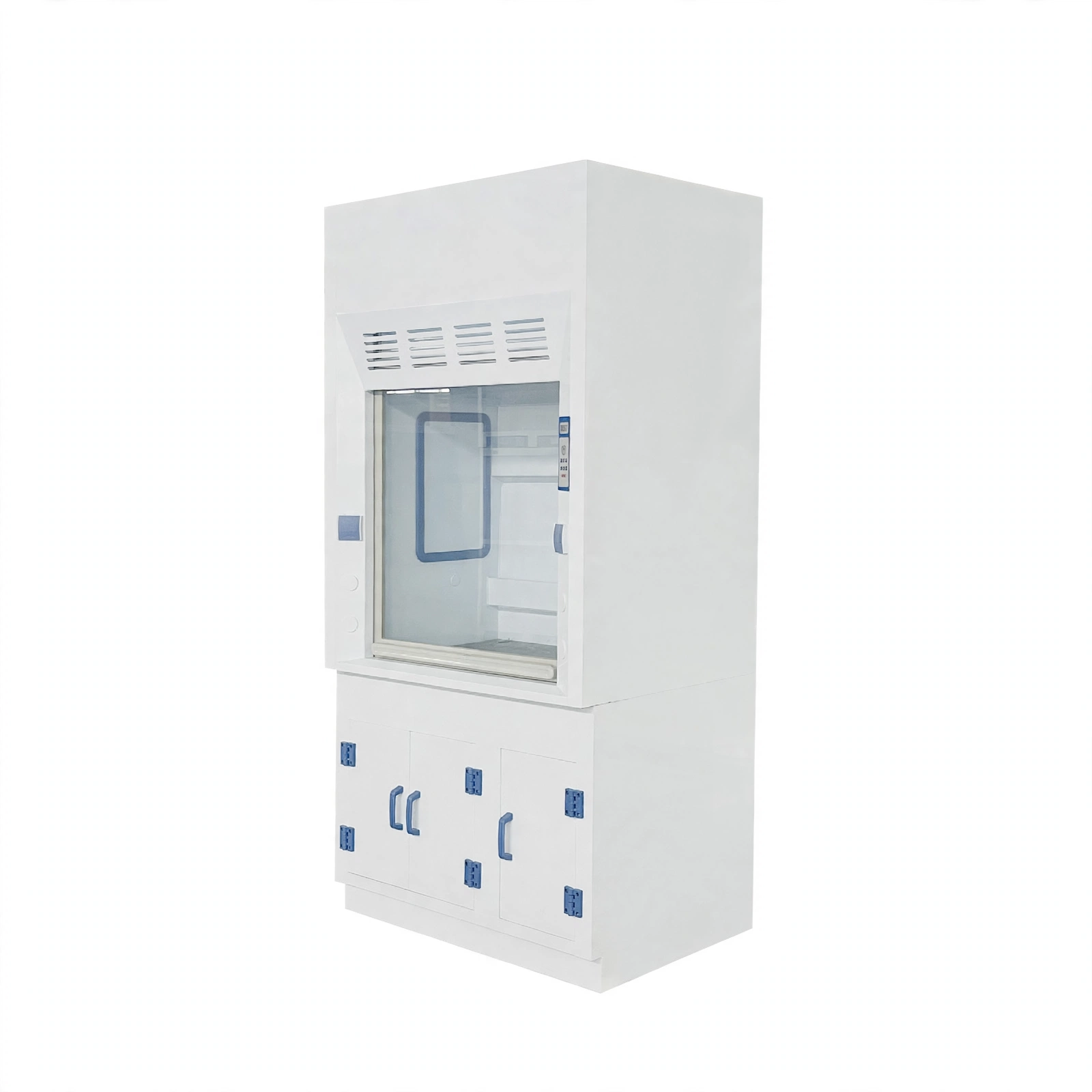

PP Spray Fume Hood FH1000(PL) FH1200(PL) FH1500(PL) FH1800(PL)

Model FH1000(PL) FH1200(PL) FH1500(PL) FH1800(PL)

This style fume hood is a custom-made fume hood for perchloric acid. The alkaline water neutralization and circulation system behind the deflector of the fume hood is the primary neutralization system, and its function is to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby causing chemical reactions such as combustion, explosion or a lot of heat.

Power
400W+370W / 500W+370W…
Noise
≤68dB
Dimensions
1047*800*2675mm / 124…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Made of PP material, integrally welded.

2. Resistant to strong acid, alkali and strong corrosion.

3. Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional.

4. The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then discharge it.

5. The control panel can control the lighting system, circuit system, and air volume adjustment system.

6. Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet structure, and complete circulating water circuit.

Technical Parameters:

Model FH1000(PL) FH1200(PL) FH1500(PL) FH1800(PL)
External Size(W*D*H) 1047*800*2675mm 1247*800*2675mm 1547*800*2675mm 1847*800*2675mm
Internal Size(W*D*H) 787*470*700mm 987*470*700mm 1287*470*700mm 1587*470*700mm
Work Surface Height

820mm
Max. Opening

740mm
Material

Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion

Work Table: Solid core physical and chemical board
Airflow Velocity

0.3~0.8m/s
Exhaust volume 560m³/h 700m³/h 920m³/h 1130m³/h
Consumption

400W+370W(Pump)

 500W+370W(Pump) 700W+370W(Pump)
Waterproof Socket

Two, total load≤500W
Noise

≤68dB(A)
Illumination

≥400lx
LED Lamp

24W

 30W 38W
Blower

Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable;  300W
Front Window

Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable
Operators 1~2 1~2 2~3 2~3
Standard Accessory

LED light;

Work table: Chemical resistant phenolic resin;

5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm;

Pipe strap*2(4pcs for FH1800(P) only);

Base cabinet;

PP centrifugal blower*1(2 for FH1800(P) only)

Waterproof socket*2;

Water tap(PP);

Gas tap(PP);

Water sink
Optional Accessory

PP work table, epoxy resin board or ceramic board;

UV lamp;

Electric glass door
Power Supply

220V, 50/60Hz(Standard); 110V, 60Hz(Optional)
Package Size(W*D*H) Main Body:

1188*938*1690mm

Base Cabinet:

1188*888*1000mm

 Main Body:

1388*938*1690mm

Base Cabinet:

1388*888*1000mm

 Main Body:

1688*938*1690mm

Base Cabinet:

1688*888*1000mm

 Main Body:

1988*938*1690mm

Base Cabinet:

1988*888*1000mm
Gross Weight 137kg92kg 155kg102kg 180kg118kg 206kg

140kg
The details

Specifications

Model
FH1000(PL) / FH1200(PL) / FH1500(PL) / FH1800(PL)
External Size(W*D*H)
1047*800*2675mm / 1247*800*2675mm / 1547*800*2675mm / 1847*800*2675mm
Internal Size(W*D*H)
787*470*700mm / 987*470*700mm / 1287*470*700mm / 1587*470*700mm
Work Surface Height
820mm
Max. Opening
740mm
Material
Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosionWork Table: Solid core physical and chemical board
Airflow Velocity
0.3~0.8m/s
Exhaust volume
560m³/h / 700m³/h / 920m³/h / 1130m³/h
Consumption
400W+370W(Pump) / 500W+370W(Pump) / 700W+370W(Pump) / 700W+370W(Pump)
Waterproof Socket
Two, total load≤500W
Noise
≤68dB(A)
Illumination
≥400lx
LED Lamp
24W / 30W / 38W / 38W
Blower
Built-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300W
Front Window
Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable
Operators
1~2 / 1~2 / 2~3 / 2~3
Standard Accessory
LED light;Work table: Chemical resistant phenolic resin;5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250mm;Pipe strap*2(4pcs for FH1800(P) only);Base cabinet;PP centrifugal blower*1(2 for FH1800(P) only)Waterproof socket*2;Water tap(PP);Gas tap(PP);Water sink
Optional Accessory
PP work table, epoxy resin board or ceramic board;UV lamp;Electric glass door
Power Supply
220V, 50/60Hz(Standard); 110V, 60Hz(Optional)
Package Size(W*D*H)
Main Body:1188*938*1690mmBase Cabinet:1188*888*1000mm / Main Body:1388*938*1690mmBase Cabinet:1388*888*1000mm / Main Body:1688*938*1690mmBase Cabinet:1688*888*1000mm / Main Body:1988*938*1690mmBase Cabinet:1988*888*1000mm
Gross Weight
137kg92kg / 155kg102kg / 180kg118kg / 206kg140kg
