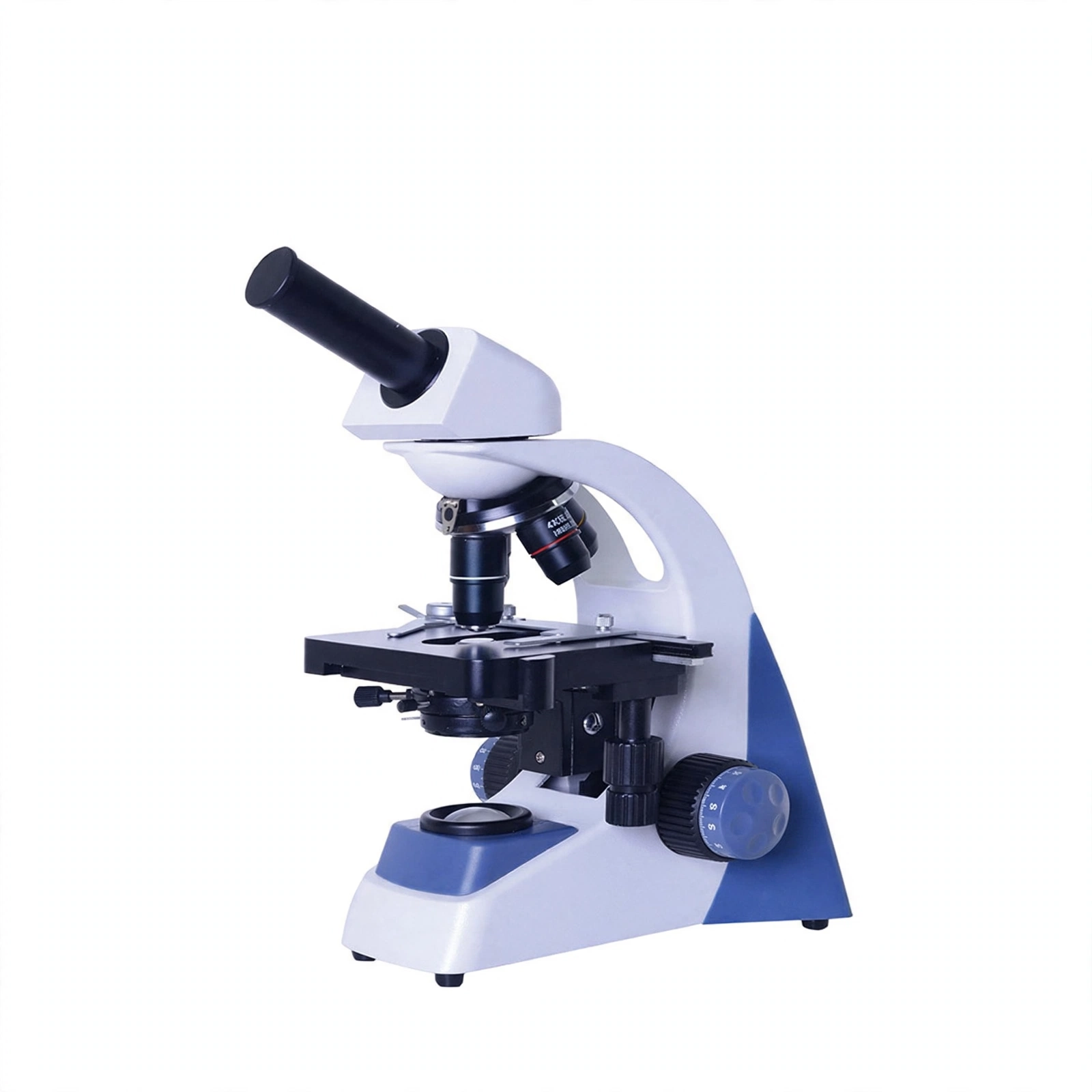

Economical biological microscope designed for education and basic laboratory use. This affordable compound microscope offers clear imaging, making it ideal for students, teaching, and routine observation applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BME-500D |
BME-20E |
BME-30SM |
BME-500V |
||
| Viewing Head | Monocular head
inclined at 30°, 360° rotatable |
Compensation free binocular head inclined at 30°, 360° rotatable |
Compensation free trinocular head inclined at 30°, 360° rotatable |
Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable |
||
| Achromatic Objectives |
4X, 10X, 40X(Spring), 100X(Spring, Oil) |
|||||
| Eyepiece |
WF10X(WF16X optional) |
WF10X(WF25X optional) |
WF10X(WF16X optional) | |||
| Stage |
Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM |
|||||
| Focusing |
Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm |
Coaxial coarse and fine adjustment, focusing range 20mm, focusing interval 0.002mm |
Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm | |||
| Condenser |
Abbe NA=1.25 with Iris diaphragm &filter |
|||||
| Illumination |
LED |
|||||
| Power Supply | AC100~240V, 50/60Hz | |||||
| Packing Size(W*D*H) |
450*360*240mm |
300*230*460mm |
450*360*240mm | |||
| Gross Weight |
5kg |
4.65kg |
5kg | |||
Note: Trinocular microscope can be installed camera and screen.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
