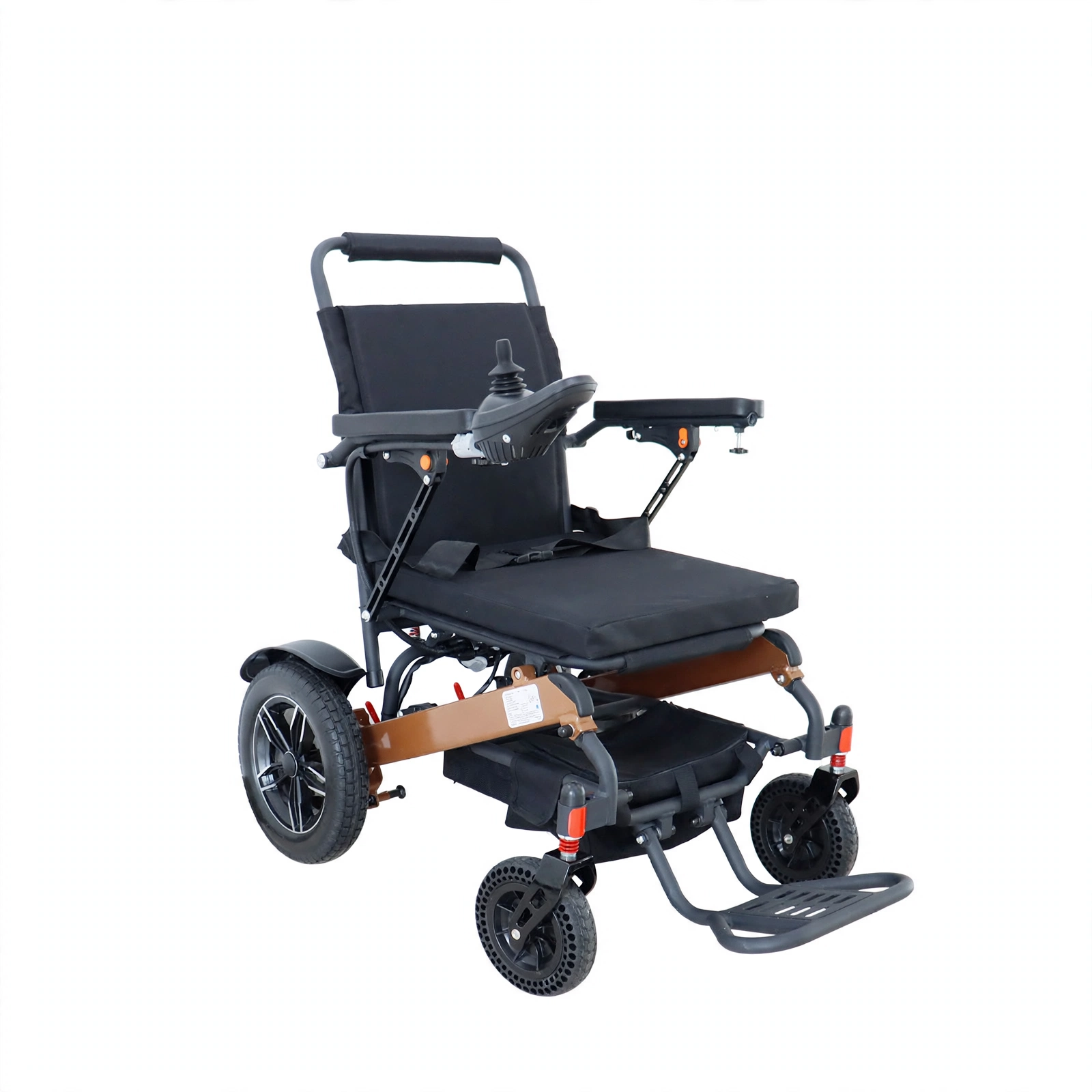

Electric Wheelchair MFN803 Series

Model MFN803A MFN803B MFN803C MFN803D MFN803E MFN803F Electric

The Electric Wheelchair is designed for individuals with mobility challenges, offering an easy-to-use, comfortable, and reliable solution for both indoor and outdoor navigation. Powered by a rechargeable battery, this wheelchair provides smooth movement with minimal effort, enabling users to maintain their independence.

Max. speed
4.5km/h
Max. load
120kg
Battery
Lithium batteryStanda…
Net weight
29kg / 30kg / 29kg /…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Humanized intelligent controller, 360°sensitive control, mobile APP control.

2. Front wheel honeycomb wheel, rear wheel aluminum alloy hub tires, good shock absorption function.

3. High efficiency energy-saving dual motor, hand/electric mode one key switch.

4. Intelligent electromagnetic brake system.

5. Durable lithium battery, stable power supply performance, easy to disassemble.

6. High elastic memory sponge back cushion, cushion comfortable and smooth.

7. Aviation aluminum alloy frame, bearing 120KG, optional color can be customized.

Technical Parameters:

Model MFN803A MFN803B MFN803C MFN803D MFN803E MFN803F
Front Wheel Diameter

8 inches
Rear Wheel Diameter

12 inches
Seat Width

460mm
Seat Depth

420mm
Seat Height

510mm
Instrument Size(W*D*H)

1040*630*980mm
Max Speed

4.5km/h
Endurance Mileage

Standard: 12~15km;

Optional: 20~25km
Climbing Ability

6°
Loading Capacity

120kg
Fold Mode Manual Electric Manual Electric Electric Manual
Back Lying Mode

/

Manual

Electric
Back Lying Angle

/

100~135°
Battery

Lithium battery

Standard: 24V12Ah

Optional: 24V20Ah
Power Supply

AC100~240V, 50/60Hz
Standard Accessory

/

Adjustable headrest
Optional Accessory

Honeycomb rear wheel, adjustable headrest, leg lift device, water cup holder, umbrella stand
Package Size(W*D*H)

680*450*880mm(±20mm)
Net Weight 29kg 30kg 29kg 31kg 33kg 30kg
Gross Weight 35kg 37kg 37kg 39kg 41kg 38kg
The details

Specifications

Model
MFN803A / MFN803B / MFN803C / MFN803D / MFN803E / MFN803F
Front Wheel Diameter
8 inches
Rear Wheel Diameter
12 inches
Seat Width
460mm
Seat Depth
420mm
Seat Height
510mm
Instrument Size(W*D*H)
1040*630*980mm
Max Speed
4.5km/h
Endurance Mileage
Standard: 12~15km;Optional: 20~25km
Climbing Ability
6°
Loading Capacity
120kg
Fold Mode
Manual / Electric / Manual / Electric / Electric / Manual
Back Lying Mode
/ / Manual / Electric / Electric / Electric / Electric
Back Lying Angle
/ / 100~135° / 100~135° / 100~135° / 100~135° / 100~135°
Battery
Lithium batteryStandard: 24V12AhOptional: 24V20Ah
Power Supply
AC100~240V, 50/60Hz
Standard Accessory
/ / Adjustable headrest / Adjustable headrest / Adjustable headrest / Adjustable headrest / Adjustable headrest
Optional Accessory
Honeycomb rear wheel, adjustable headrest, leg lift device, water cup holder, umbrella stand
Package Size(W*D*H)
680*450*880mm(±20mm)
Net Weight
29kg / 30kg / 29kg / 31kg / 33kg / 30kg
Gross Weight
35kg / 37kg / 37kg / 39kg / 41kg / 38kg
