Biological Safety Cabinet

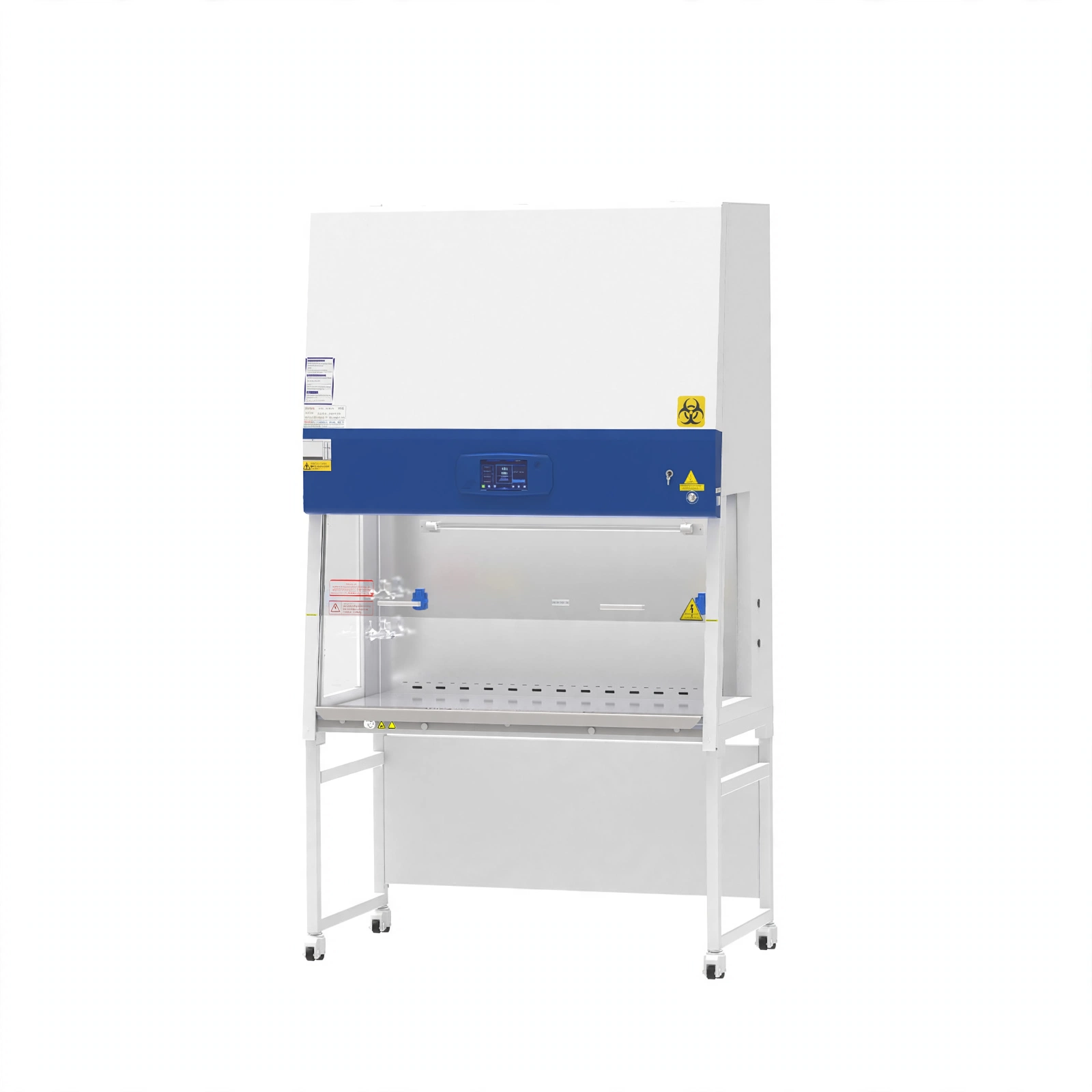

EN Certified Biological Safety Cabinet BSC-4FA2-HA

Model BSC-4FA2-HA

Biological safety cabint is air purification negative pressure safety device that can prevent the aerosol escape of certain hazardous or unknown biological particles during experimental handling. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

I. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-off memory, restore the state before power-off, and have a visual reminder to alarm.

5. Side windows on both sides for easy observation.

6. The operation area is integrally formed, which is easy to disassemble and clean.

7. A breeze speed sensor is equipped at the working area and the outer exhaust air outlet to detect the wind speed in real time.

8. It can be used both manually and electrically, and the glass door can be pulled down to close the front window when the power is off.

9. The cabinet is separated from the base. The height of the adjustable base can be customized.

10. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.

11. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

12. The closing of the front window can double trigger the signal, so that the sterilization and disinfection function of the UV lamp can be turned on normally.

13. The cabinet is designed with a 10° inclination angle, which conforms to the principle of ergonomics, has a larger viewing angle, is easy to operate and is more user-friendly.

14. Anti-paper dust structure at the air inlet to prevent paper dust from entering the air cavity.

15. Split countertop is easier to clean.

16. One button front window lifting function.

Technical Parameters:

Model

BSC-4FA2-HA

External Size(W*D*H)

1383*800*2260mm

Internal Size(W*D*H)

1280*600*650mm

Work Surface Height

750mm

Max Opening

500mm

Tested Opening

200mm

Airflow Volume

Inflow 490m³/h(289cfm)
Down Flow 70%: 1145m³/h(673cfm)
Exhaust 30%: 490m³/h(289cfm)

Front Window

Manual and electric, glass thickness≥6mm, anti-ultraviolet

ULPA Filter

2pcs, filtration efficiency for 0.12μm, particles≥99.9995%

Illumination

≥1000Lux

Noise

EN12469≤63dB

Display

Color touch screen

European Standard Socket

230V, 3A

Power Supply

AC230V, 50/60Hz

Rated Power

1200W

Alarm

Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure

Motor

AC motor, 230V acceptable, adjustable speed, high efficiency, low power

Material

Working area: 304 stainless steel, side window glass

Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating

LED Lamp

14W*2

UV Lamp

30W

Standard Accessory

Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, S.S. water tap*1, S.S. gas tap*1, Drain ball valve*1, European standard socket*2, Remote control

Optional Accessory

Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, S.S. water tap*1, S.S. gas tap*1, Foot switch

Package Size(W*D*H)

1530*1060*1880mm

Gross Weight

345kg
The details

Specifications

Ask our team for the full specification sheet for this model.
