Fat Analyzer

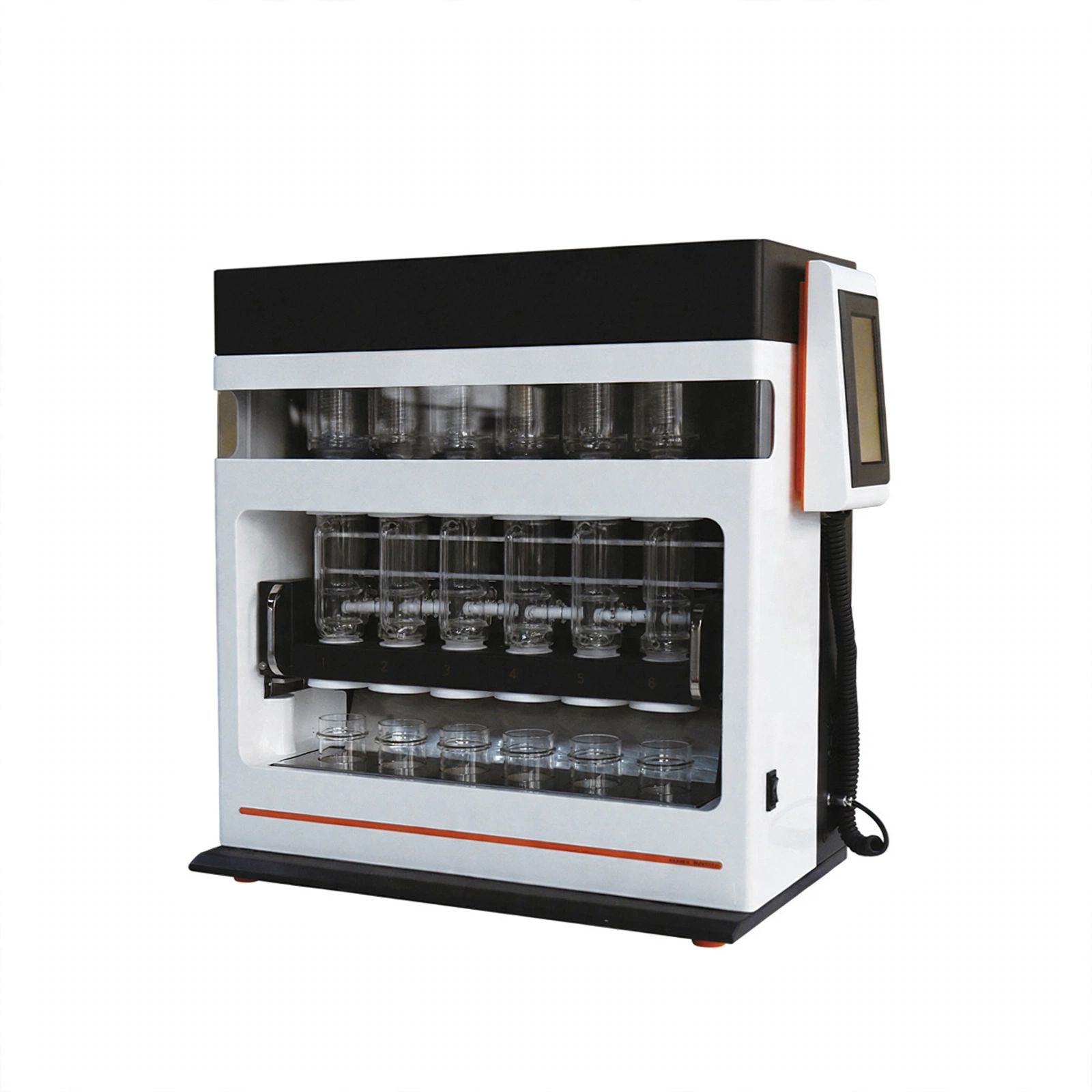

Fat Analyzer BFA-1S

Model BFA-1S Refrigerated

BFA-1S Fat Analyzer, designed based on the Soxhlet extraction principle, is an automatic crude fat analyzer in which weight method is used to determine the fat content.

Capacity
6pcs/batch
Temperature
RT+5°C-300°C
Power
2.6KW
Dimensions
650*380*720mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* Automatic process after weighting the sample.

* 7″ LCD Touch screen control panel, easy to operate.

* Five extraction methods: Soxhlet standard extraction, Soxhlet hot extraction, continue flow extraction,

hot extraction, Soxhlet CH standard method.

* Ether leakage automatic alarm.

* Water temperature and water flow monitoring.

* Automatic solvent recovery.

Technical Parameters:

Model BFA-1S
Temp. Range RT+5°C-300°C
Measuring Range 0.1-100%
Temperature Accuracy ±1°C
Repeatability Relative error 1%
Sample Weight 0.5~15g
Capacity 6pcs/batch
Solvent Cup Volume 150ml
Solvent Recovery 285%
Consumption 2.6KW
Power Supply AC220V±10%» 50Hz
External Size(W*D*H) 650*380*720mm
Package Size(W*D*H) Main Body: 840*550*940mm / Accessories: 580*320*300mm
Gross Weight Main Body: 95kg / Accessories: 5.5kg
The details

Specifications

Model
BFA-1S
Temp. Range
RT+5°C-300°C
Measuring Range
0.1-100%
Temperature Accuracy
±1°C
Repeatability
Relative error 1%
Sample Weight
0.5~15g
Capacity
6pcs/batch
Solvent Cup Volume
150ml
Solvent Recovery
285%
Consumption
2.6KW
Power Supply
AC220V±10%» 50Hz
External Size(W*D*H)
650*380*720mm
Package Size(W*D*H)
Main Body: 840*550*940mm / Accessories: 580*320*300mm
Gross Weight
Main Body: 95kg / Accessories: 5.5kg
