Fat Analyzer

Fat Analyzer

Model BFA-2 Refrigerated

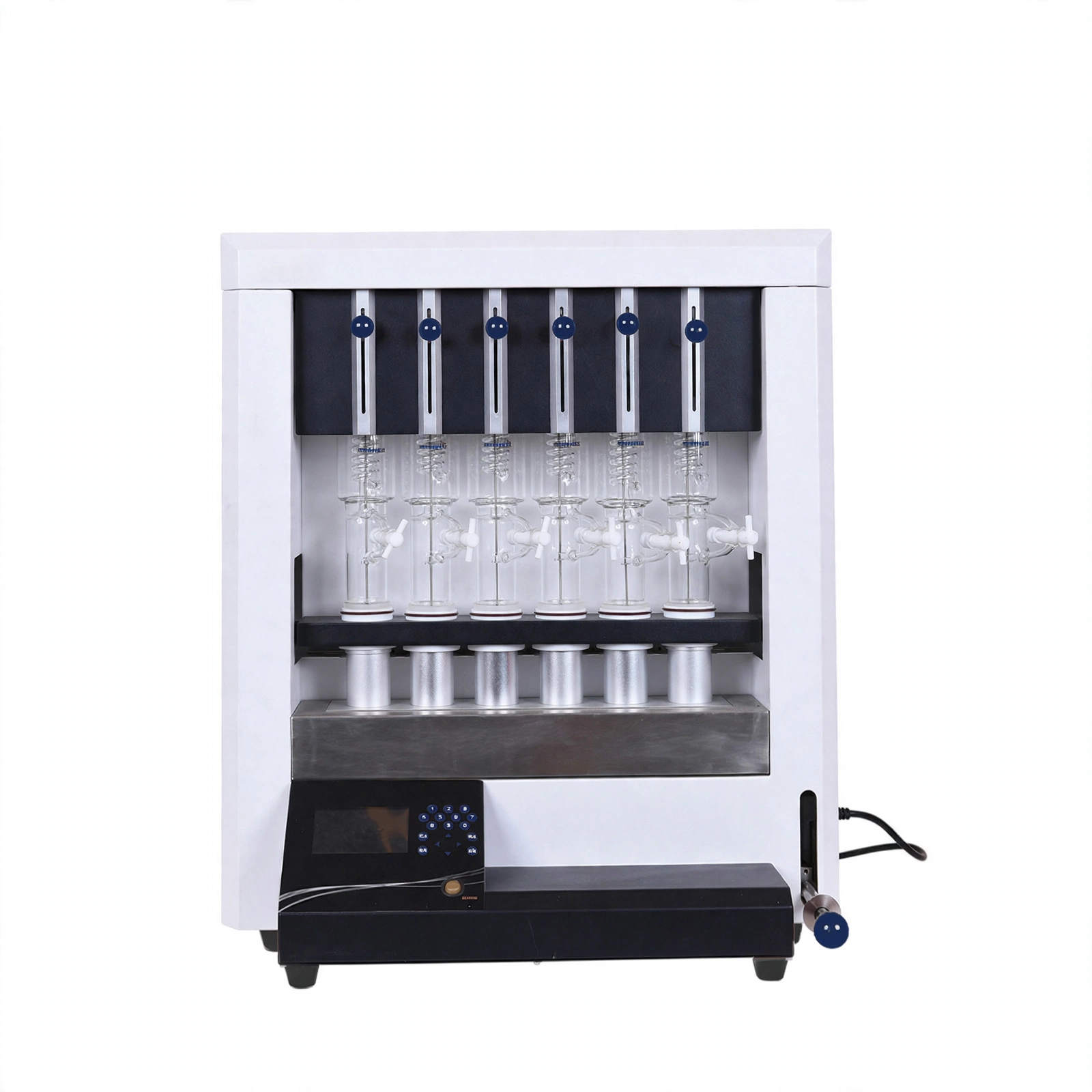

BFA-2 Fat Analyzer is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction, leaching, heating, condensation and solvent recovery.

Capacity
6pcs/batch
Temperature
RT+5°C~280°C
Power
1KW
Dimensions
650*320*715mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* 4.3” LCD screen and Microcomputer control system.

* Triple alarms i.e. sound, light, LCD Audio and visual alarm function.

* Integral dry heating, wide scope and high precision of temperature control.

* Electric circuit is isolated from the extraction space, ensuring devices security.

* Over-temperature alarm and timer reminding functions.

* Abundant interface contents give simultaneous display of set temperature, actual temperature, set time and heating time.

* Unique air insulation for temperature heating protection and constant temperature.

Technical Parameters:

Model BFA-2
Temp. Range RT+5°C~280°C
Measuring Range 0〜100%
Temperature Accuracy ±1°C
Sample Weight 0.5~15g(generally 2~5g, depending on sample)
Capacity 6pcs/batch
Solvent Cup Volume 80ml
Solvent Recovery ≥80%
Consumption 1KW
Power Supply AC 220V+10%, 50HZ
External Size(W*D*H) 650*320*715mm
Package Size(W*D*H) 800*470*950mm
Gross Weight 65kg
The details

Specifications

Model
BFA-2
Temp. Range
RT+5°C~280°C
Measuring Range
0〜100%
Temperature Accuracy
±1°C
Sample Weight
0.5~15g(generally 2~5g, depending on sample)
Capacity
6pcs/batch
Solvent Cup Volume
80ml
Solvent Recovery
≥80%
Consumption
1KW
Power Supply
AC 220V+10%, 50HZ
External Size(W*D*H)
650*320*715mm
Package Size(W*D*H)
800*470*950mm
Gross Weight
65kg
