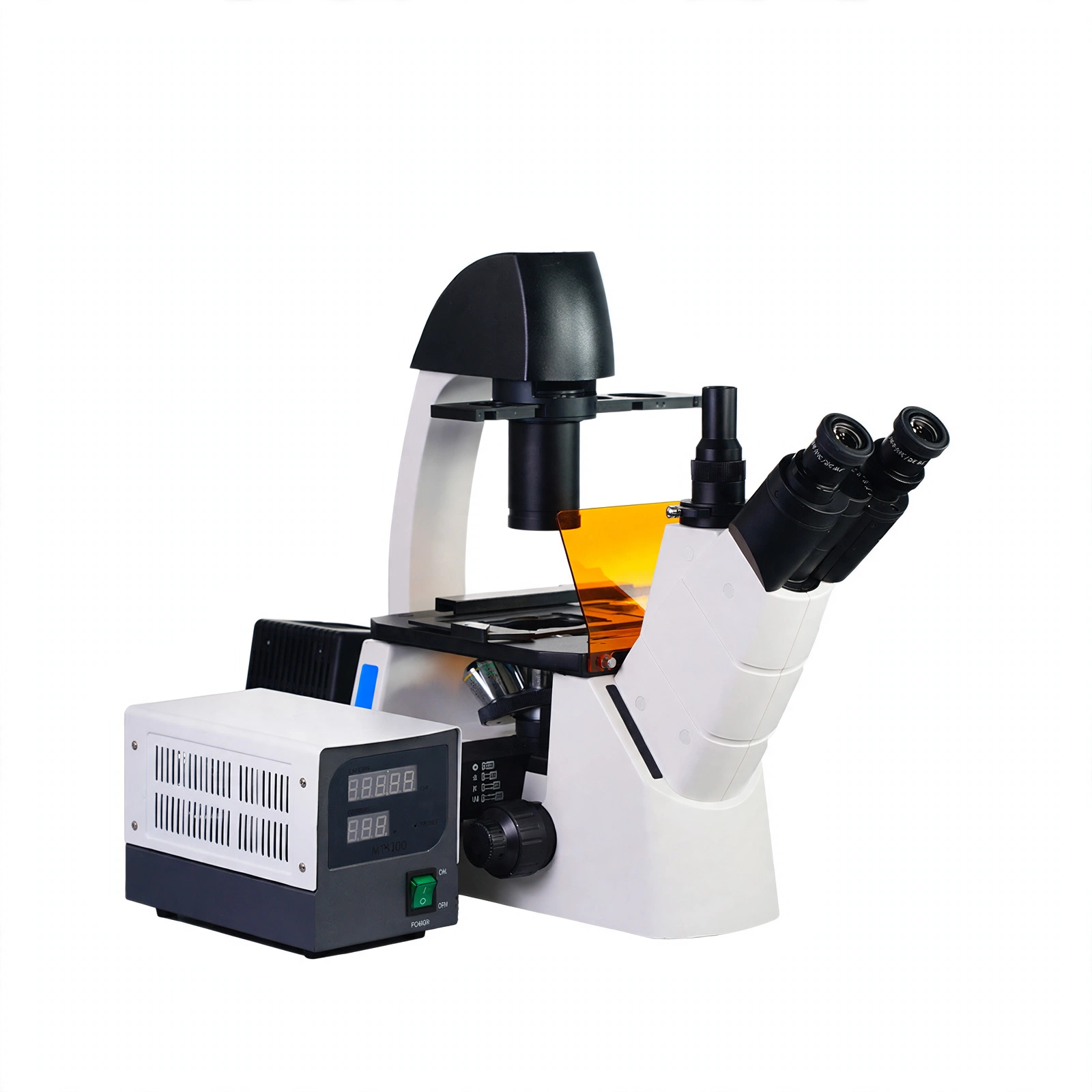

The Fluorescence Biological Microscope BM-37XYIII is an inverted fluorescence microscope built on a modular infinity optical system with long working distance plan-contrast objectives. It features a binocular view head, standard UV/B/G three-band fluorescence excitation, and white LED illumination. The sliding-pull phase-contrast condenser with a 75mm working distance, combined with multiple culture dish trays and a 5-position nosepiece, makes it ideal for live cell observation and fluorescence imaging in hospital pathology and research laboratories.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BFM-37XYIII |
| Optical System | Modular infinity optical system |
| Eyepiece | 10X/22mm |
| View Head | Trinocular view head, interpupillary distance adjustment range: 50~75mm |
| Objective | Infinity plan achromatic objective 4X;
Infinity working distance plan-contrast objective 10X PH; Infinity working distance plan-contrast objective 20X PH; Infinity working distance plan-contrast objective 40X PH; Infinity Working Distance Plan Objective 10X(Optional); Infinity Working Distance Plan Objective 40X(Optional) |
| Fluorescence Accessories | Standard:
Ultraviolet (UV): EX: 330nm~380nm, DM: 400nm, BA=420nm; Blue (B): EX: 450nm~490nm, DM: 505nm, BA=520nm; Green (G): EX: 510nm~560nm, DM: 575nm, BA=590nm Others can be optional |
| Focusing System | Coaxial coarse and fine adjustment mechanism, equipped with limit and locking devices, low-position coaxial focusing handwheel, fine adjustment handwheel increments of 2μm, focusing travel of 11mm. |
| Nosepiece | 5-position nosepiece |
| Stage | Stage dimensions: Size: 242*172mm, Movement range: 75*50mm;
Circular transparent stage plate: Outer ring φ110mm, inner ring φ32mm; Cultural dish tray I: 86*129.5mm, compatible with circular 87.5mm trays; Cultural dish tray II: 34*77.5mm, compatible with circular 68.5mm trays; Cultural dish tray III: 57*82mm |
| Condenser | Sliding-pull phase-contrast condenser lens, working distance: 75mm, numerical aperture: 0.3. |
| Illumination | White LED, adjustable brightness |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 680*670*620mm |
| Gross Weight | 24kg |
