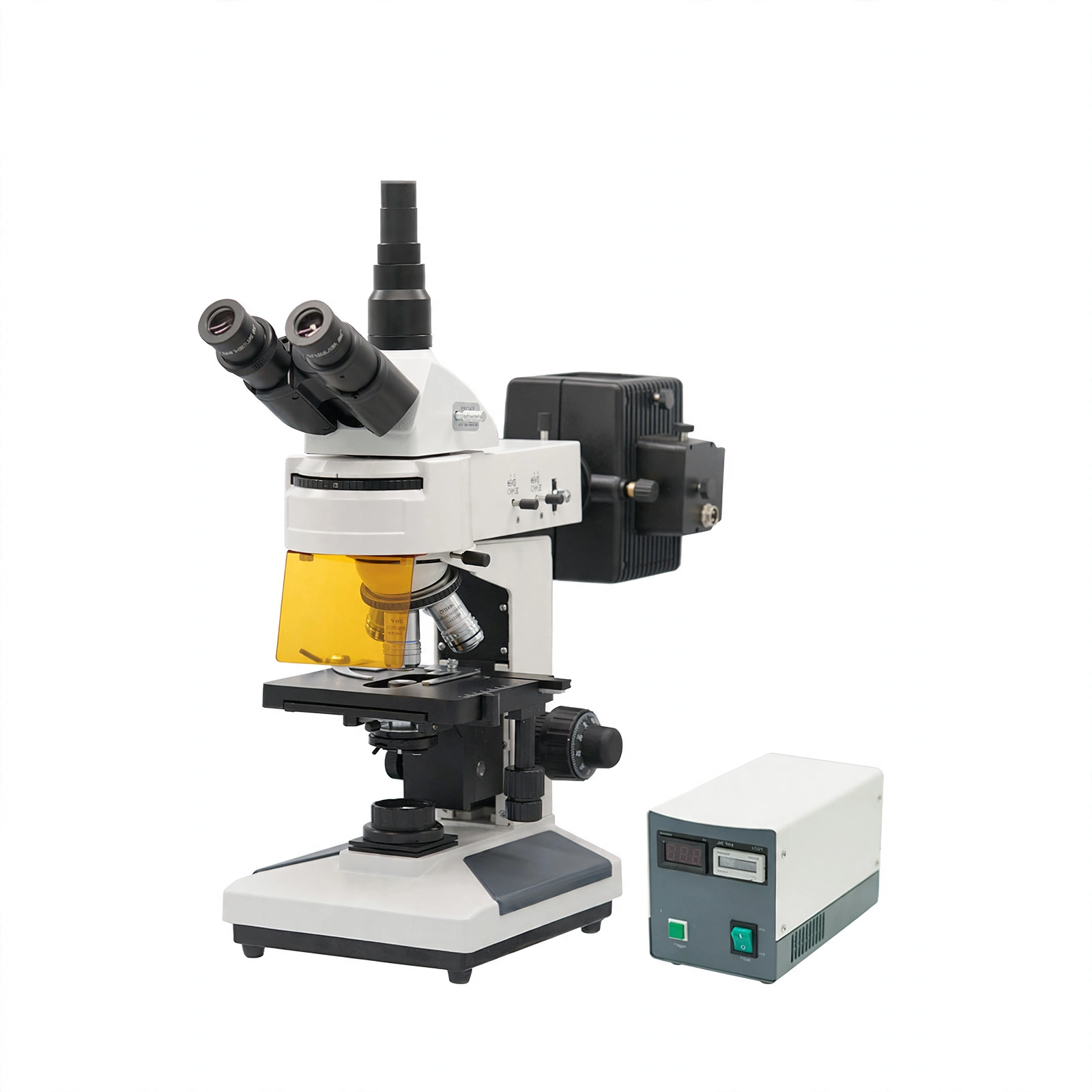

The Fluorescence Biological Microscope BFM-13CYII is an upright epi-fluorescence microscope built on an infinity optical system with infinity plan achromatic objectives from 4X to 100X. It features a trinocular view head inclined at 30° with 10X/22mm eyepieces, standard blue and green fluorescence excitation, and a white LED illumination system with adjustable brightness. The coaxial coarse and fine focusing system with locking and limiting devices, along with a double-layer mechanical stage, ensures precise and stable operation for routine clinical and research fluorescence applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BFM-13CYII |
| Optical System | Infinity optical system |
| Eyepiece | 10X/22mm |
| View Head | Trinocular view head, inclined at 30°, interpupillary distance adjustment 48~75mm |
| Objective | Infinity plan achromatic objective 4X;
Infinity plan achromatic objective 10X; Infinity plan achromatic objective 40X; Infinity plan achromatic objective 100X |
| Fluorescence Accessories | Standard:
Blue (B) excitation: 460~490nm; Green (G) excitation: 510~560nm Optional: Ultraviolet (UV) excitation: 330~380nm; Blue-Ultraviolet (BU) excitation: U: 330~380nm, B: 460~490nm; Blue-Green-Ultraviolet (BGU) excitation: U: 330~380nm, B: 450~490nm, G: 510~560nm |
| Focusing System | Coaxial focusing with coarse and fine movements, featuring locking and limiting devices; fine movement increments of 2μm; coarse movement stroke of 40mm per revolution; fine movement stroke of 0.2mm per revolution; focusing range of 30mm. |
| Nosepiece | 4-position nosepiece, 5-position nosepiece(Optional) |
| Stage | Double-layer movable platform. Platform dimensions: 160*140mm; Movement range: 75*50mm. |
| Condenser | Abbe Condenser N.A.1.25 |
| Illumination | White LED, adjustable brightness |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 465*450*600mm |
| Gross Weight | 15.5kg |
