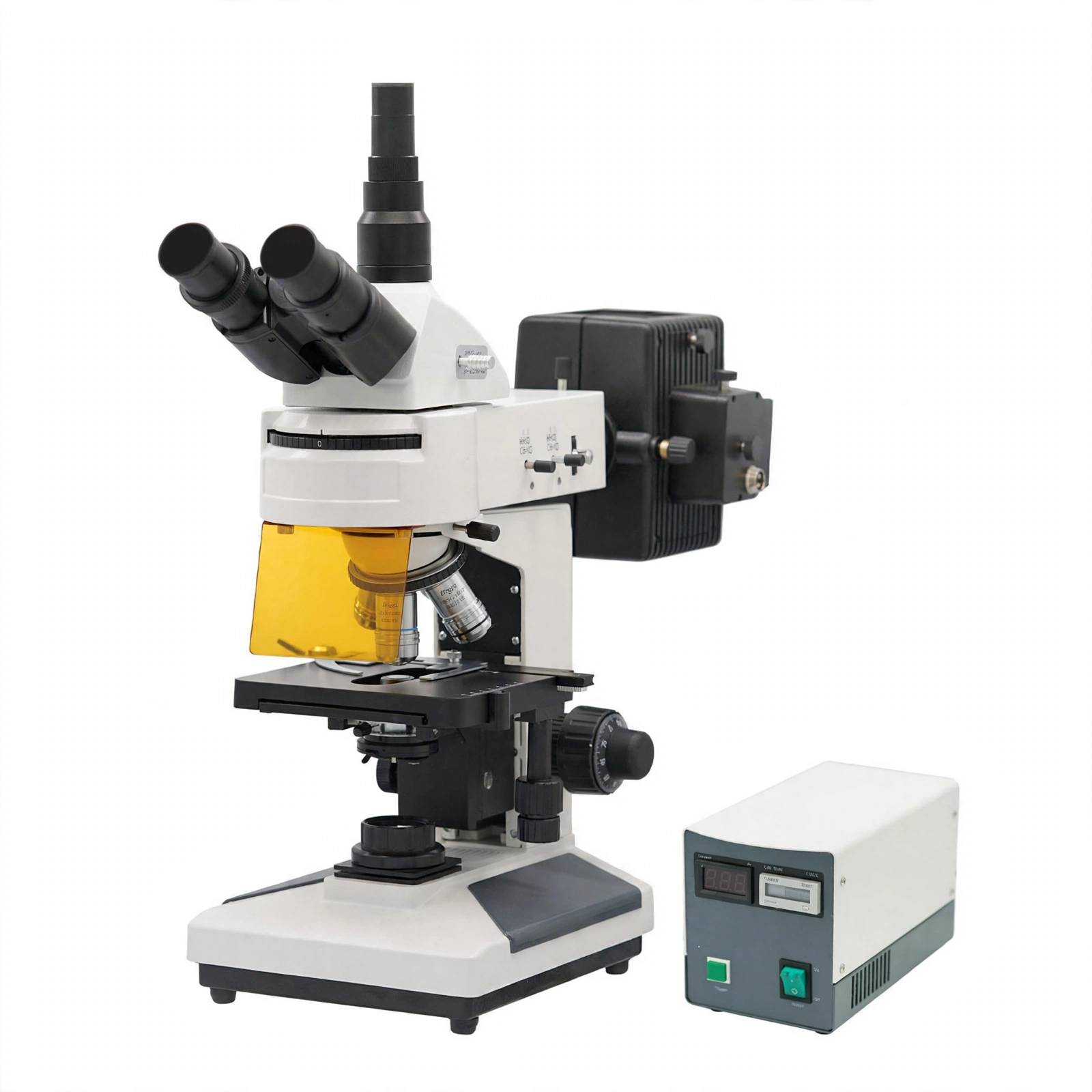

The Fluorescence Biological Microscope is an advanced imaging instrument designed for high-precision analysis of biological samples under fluorescence illumination.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.1. Eyepiece
| Type | Magnification | Field Diameter |
| Wide Plan Field Eyepiece | 10X | Φ22mm |
2. Objective
| Type | Magnification | Numerical Aperture(NA) | Working Distance |
| Infinite | 4X | 0.1 | 37.5mm |
| Apochromatic | 10X | 0.25 | 7.31mm |
| Fluoresecent | 40X | 0.65 | 0.63mm |
| Objective | 100X | 1.25 | 0.18mm |
| Mechanical Tube Length |
Infinite distance system |
||
| Total Magnification |
40X~1000X |
||
| Nosepiece |
Fourtuple nosepiece |
||
| Stage |
Stage Size: 160x140mm Moving Range: 75x50mm |
||
| Focusing Range |
30mm coaxial coarse and fine focus adjustment, fine focusing scale 0.002mm |
||
| Condenser |
Abbe N.A.1.25 Condenser With Iris Diaphragm |
||
| Exciting |
B, G |
||
| Filter |
Blue, Yellow, Green |
||
| Light Source |
Epi-illumination: 220V(110V)/100W mercurylamp, powersupply box Transmission Illuminate: Halogen Bulb 6V/20W |
||
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
