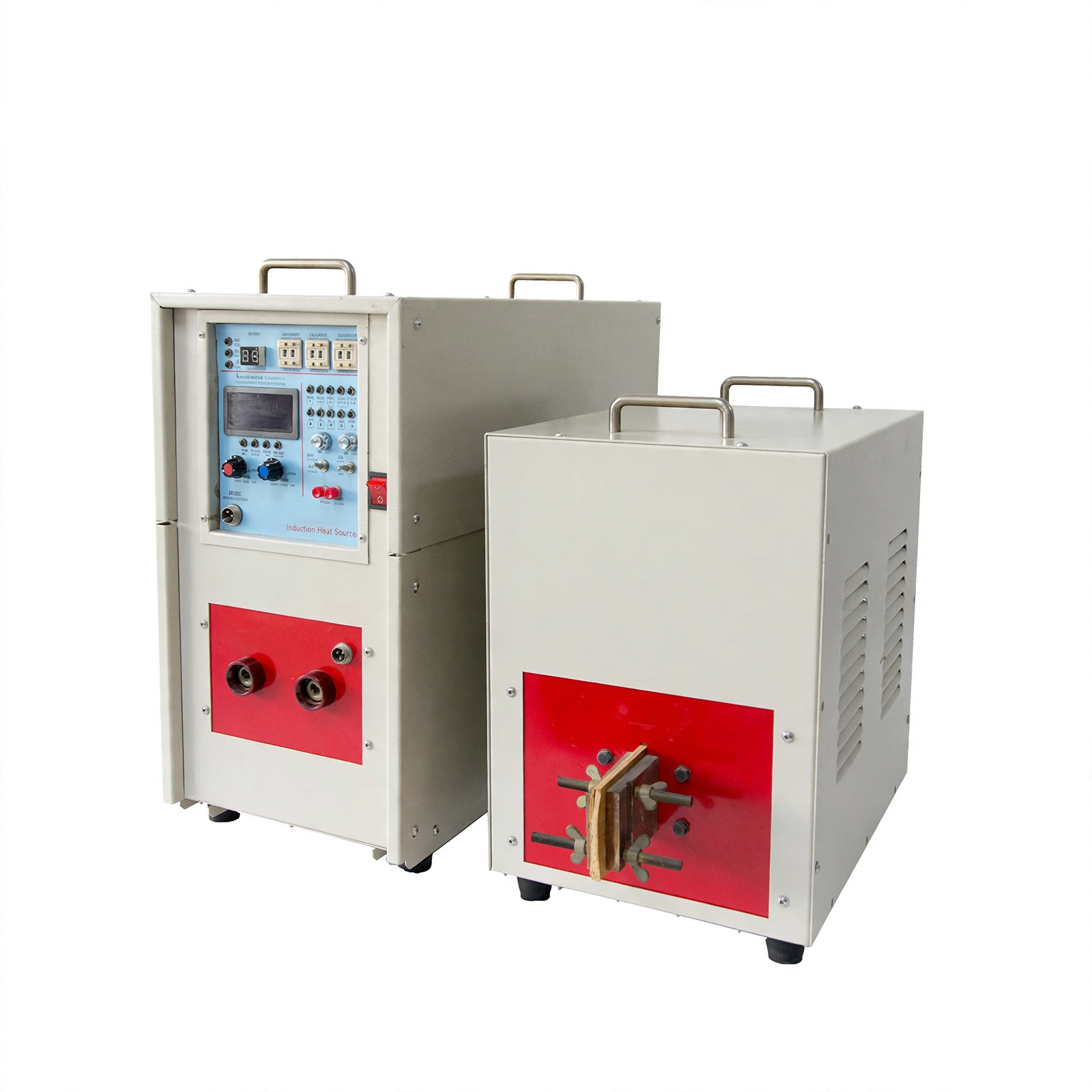

High Frequency Induction Heater BK-HIH35

Model BK-HIH35 Refrigerated

Adopt imported high quality IGBT solid power module and our second generation of frequency conversion technology, has distinct cooling system to ensure that the device can continually work with maximal power with 24 hours, which improves the performance quality and device.

Net weight
Controller:40kg; Tran…
Dimensions
Controller:650*260*54…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Adopt imported high quality IGBT solid power module and our second generation of frequency conversion technology, has distinct cooling system to ensure that the device can continually work with maximal power with 24 hours, which improves the performance quality and device.

2. Constant current and power control function can improve the heating inefficiency and it save energy.

3. Simple and convenient installation can work after connecting to 380V power, water inlet, water outlet. Professional installation is not required.

4. Has timing function can individual adjust heating time, heat preservation time, digit setting, heating current, heat preservation current.

5. This device has self-diagnosis alarming system for failure and multilevel protection and display for over-current, over-heat, under water and phase lack.

Technical Parameter:

Model BK-HIH35
Maximum Oscillation Power 40KVA
Input Voltage Range 380V 50/60Hz
Output Oscillation Frequency 30KHz~80KHz
Maximum Input Current 53A
HeatingTime 1~99s
HeatPreservation Time 1~99s
Cooling Time 1~99s
Duty Cycle 100%
Cooling Water Flow 0.2MPa ≥6L/Min
Cooling Water Temperature <45℃
Power Supply 380V 50/60Hz
External Size(W*D*H) Controller:650*260*540mm;Transformer:500*270*450mm
Net Weight Controller:40kg; Transformer:32kg
Package Size(W*D*H) 680*650*620mm
Gross Weight 100kg
The details

Specifications

Model
BK-HIH35
Maximum Oscillation Power
40KVA
Input Voltage Range
380V 50/60Hz
Output Oscillation Frequency
30KHz~80KHz
Maximum Input Current
53A
Heating Time
1~99s
Heat Preservation Time
1~99s
Cooling Time
1~99s
Duty Cycle
100%
Cooling Water Flow
0.2MPa ≥6L/Min
Cooling Water Temperature
<45℃
Power Supply
380V 50/60Hz
External Size(W*D*H)
Controller:650*260*540mm; Transformer:500*270*450mm
Net Weight
Controller:40kg; Transformer:32kg
Package Size(W*D*H)
680*650*620mm
Gross Weight
100kg
