High Performance Liquid Chromatography

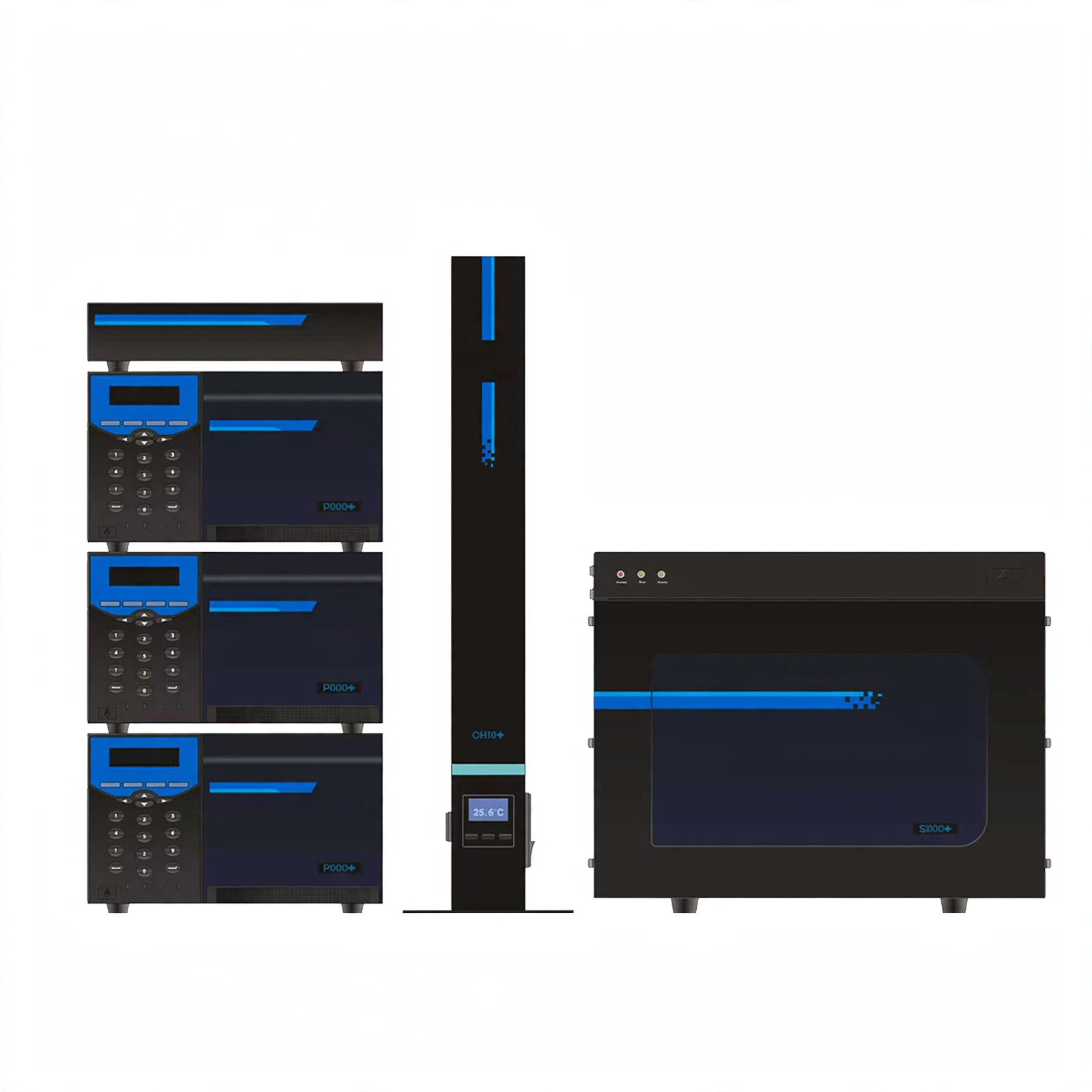

High Performance Liquid Chromatography System Agress1100+

Model Agress1100+ Refrigerated

High performance liquid chromatography system designed for precise and efficient chemical analysis. This HPLC system with UV detector ensures reliable separation and accurate results for laboratory applications.

Temperature
Ambient temperature+5…
Power
80W
Noise
≤±1×10⁻⁵ AU
Dimensions
420*260*160mm/14kg
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features

1. Compatible with both normal-phase and reversed-phase solvents, suitable for use in GPC systems, and supports solvent exchange.

2. An optimized, high-efficiency heat dissipation structure ensures stable system operation under demanding condition.

3. The fully upgraded sealing design minimizes system performance degradation and consistently delivers accurate test results.

4. The front panel is coated with a corrosion-resistant finish, enhancing the product’s durability against a wide range of solvents.

5. Compatible with Kromstation and Rubikstation chromatography workstations (network versions), compliant with data integrity regulations.

D1100+ UV-visible Detector

Item Specification
Wavelength Range 190~700nm
Light Resource Deuterium lamp
Display 2*16 LCD
Spectral Bandwidth 8nm
Wavelength Accuracy ±1nm
Wavelength Repeatability ≤1nm
Set Fan of Wavelength-time Program 0.1~999.9min
Response Time 0.1~5.0s
Noise ≤±1×10⁻⁵ AU (Empty flow cell, 254nm, constant ambient temperature)
Drift ≤1.5×10⁻⁴ AU/h (Empty flow cell, 254nm, constant ambient temperature)
Linearity Range ≥1.8AU (5%, 254nm)
Optical Path of Flow Cell 10mm
Withstand Voltage of Flow Cell ≤8MPa
Communication Mode RS232 or USB

P1100+ High-Pressure Constant Flow Pump

Item Specification
Flow Rate 0.001 – 10.000 mL/min (Step: 0.001 mL/min)
Accuracy ≤ ±0.3% (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Precision ≤ 0.085% (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Max Pressure 45MPa(0.001~5.000mL/min)

20MPa(5.001~10.000mL/min)
Pressure Accuracy ±3% or <±0.8 MPa
Pressure Pulsation ≤1%
Leak-proofing Capability Pressure drop≤1.5MPa (40MPa, 10min)
Communication mode RS-485
Dimension/Net Weight 420*260*160mm/14kg
Power Supply AC220V, 50Hz
Power 80W

O1200+ Column Oven

Item Specification
Temperature Range Ambient temperature+5~99°C
Setting Precision 0.1°C
Temperature Accuracy ≤±0.5°C
Temperature Stability ≤0.2°C
Communication Interface RS-485

S1100+ Autosampler

No. Items Specifications
1 Injection range 0~100μL, 500μL, 2mL
2 Injection repeatability RSD<0.3% Full sample loop injection (standard conditions)

RSD<0.5% Partial volume injection (lossy injection, standard conditions)

RSD<1.0% Partial volume injection (without loss, standard conditions)
3 Injection linearity R²>0.999
4 Sample residue <0.01%
5 Highest pressure 45MPa
6 Communication method UDP network communication
7 Injection trigger Digital mode, analog mode

Technical Parameters:

Model Agress1100+(Type I) Agress1100+(Type II)
Pump P1100+*1 P1100+*2
Detector

D1100+*1
Sampler Injector

Rheodyne 7725i*1
Valve Mounting Frame

VB1100+*1
Solvent Bottle Tray

T1100+*1
Workstation

Kromstation*1
System Toolkit

Agress1100+*1
Column

Supersil ODS2 5μm 4.6*250mm*1
Gradient Mixer / TD-1-15*1
Power Supply

AC220V±10%, 50Hz
Optional Accessory

S1100+ autosampler, column, O1120+ column oven, evaporative light scattering detector, differential refractive index detector, fluorescence detector, solvent bottle
Packing Size(W*D*H) 580*400*280mm 580*400*280mm 580*400*280mm 580*400*280mm

580*400*280mm

580*400*280mm 580*400*280mm
Gross Weight 16kg

16kg

8kg

 16kg

16kg

16kg

8kg
The details

Specifications

Item
Specification
Wavelength Range
190~700nm
Light Resource
Deuterium lamp
Display
2*16 LCD
Spectral Bandwidth
8nm
Wavelength Accuracy
±1nm
Wavelength Repeatability
≤1nm
Set Fan of Wavelength-time Program
0.1~999.9min
Response Time
0.1~5.0s
Noise
≤±1×10⁻⁵ AU (Empty flow cell, 254nm, constant ambient temperature)
Drift
≤1.5×10⁻⁴ AU/h (Empty flow cell, 254nm, constant ambient temperature)
Linearity Range
≥1.8AU (5%, 254nm)
Optical Path of Flow Cell
10mm
Withstand Voltage of Flow Cell
≤8MPa
Communication Mode
RS232 or USB
Item
Specification
Flow Rate
0.001 - 10.000 mL/min (Step: 0.001 mL/min)
Accuracy
≤ ±0.3% (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Precision
≤ 0.085% (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Max Pressure
45MPa(0.001~5.000mL/min)20MPa(5.001~10.000mL/min)
Pressure Accuracy
±3% or <±0.8 MPa
Pressure Pulsation
≤1%
Leak-proofing Capability
Pressure drop≤1.5MPa (40MPa, 10min)
Communication mode
RS-485
Dimension/Net Weight
420*260*160mm/14kg
Power Supply
AC220V, 50Hz
Power
80W
Item
Specification
Temperature Range
Ambient temperature+5~99°C
Setting Precision
0.1°C
Temperature Accuracy
≤±0.5°C
Temperature Stability
≤0.2°C
Communication Interface
RS-485
