High Performance Liquid Chromatography

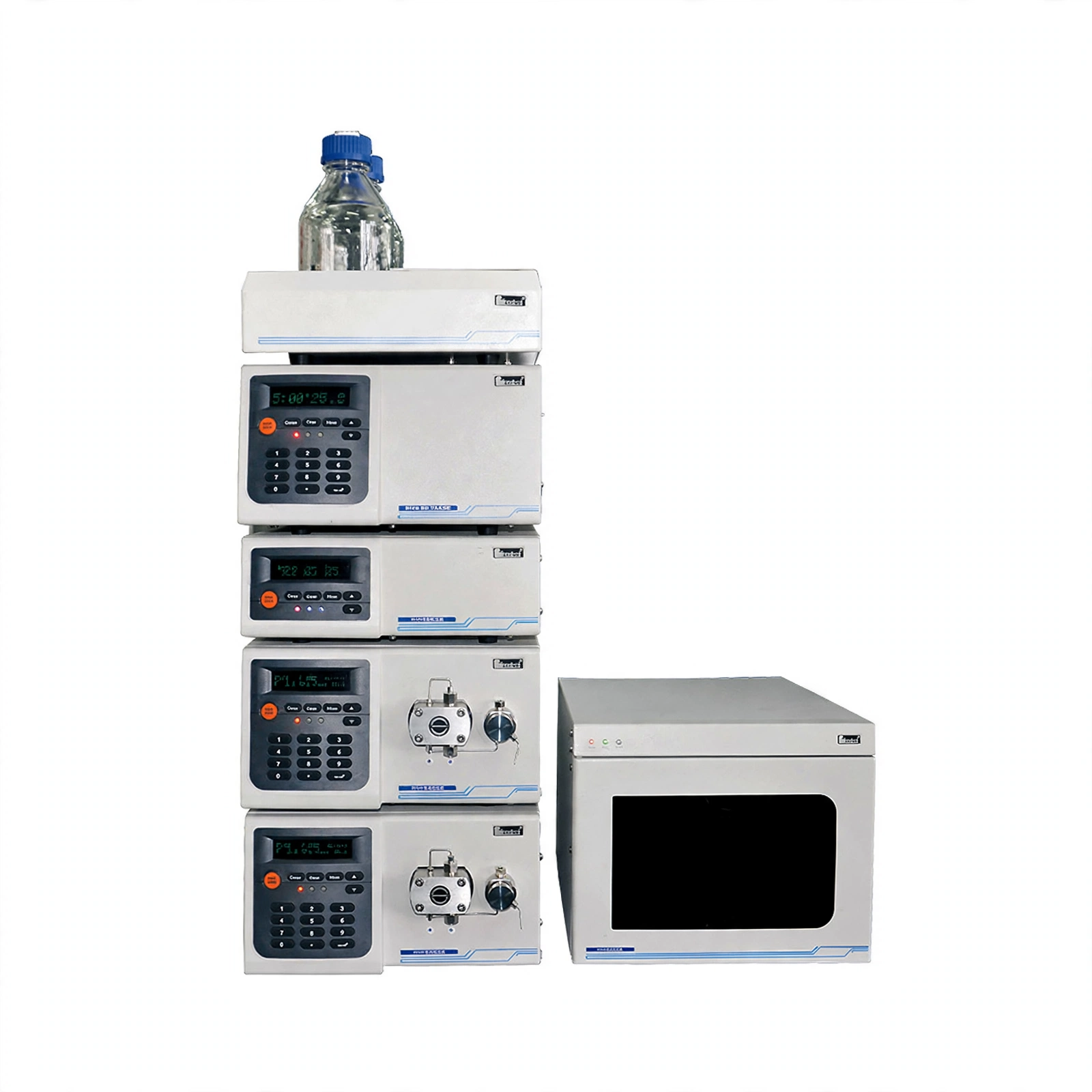

High Performance Liquid Chromatography System EClassical 3100

Model EClassical 3100 Refrigerated

EClassical 3100 System is perfected from classical HPLC systems manufactured by our company, the high quality has widely recognized by customer. It is suitable for users who are looking for the versatility and robustness. The excellent features ensure the reliability results and improve working efficiency.

Temperature
Ambient+5～80℃
Power
AC220V±10%, 50 Hz/80W
Noise
≤±0.5*10⁻⁵ AU
Dimensions
420*300*175mm /12kg
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Characteristics:

1. Comprehensive and flexible

Isocratic system, binary gradient system, quaternary gradient system is available.

Detection capabilities include DAD, UV/Vis, FL, RI and ELSD.

2. Stable and reliable

Advanced USB chip and optoelectronic isolation technology ensuring stable communication.

3. Simple and safe

Powerful software makes it simple to control, capture, manage and analyze.

Real-time pressure display, maximum and minimum pressure warning ensure the security.

P3100 High-Pressure Constant Flow Pump

Item Specification
Flow Range 0.001～10.000mL/min（step 0.001 mL/min）
Accuracy ≤±0.2%
Precision ≤0.075%RSD
Pressure Range 0-45MPa
Power AC220V±10%, 50 Hz/80W
Dimensions/Weight 420*300*175mm (W*D*H)/12kg

P3130 Low-Pressure Quaternary Constant Flow Pump

Item Specification
Flow Range 0.001～10.000mL/min（step 0.001mL/min）
Accuracy ≤±0.1%(1.000mL/min,8.5MPa,water, ambient temperature);

≤±2.0%(0.001mL/min~10.000mL/min,8.5MPa,water, ambient temperature）
Precision ≤0.075%(1.000mL/min,8.5MPa,water, ambient temperature);

≤0.1%（0.100mL/min~10.000mL/min，8.5MPa,water, ambient temperature）
Maximum Working Pressure 63MPa
Communication Methods UDP Network Communication
Mixed Volume 750μL
Power AC220V±10%, 50Hz/100W
Dimensions/Weight 400*300*180mm (W*D*H)/15kg

UV3100 UV-Vis Detector

Item Specification
Linearity Range ≥1.8AU(5%) (254nm)
Wavelength Range 190～700nm
Noise ≤±0.5*10⁻⁵ AU
Drift ≤1.0*10⁻⁴ AU/h
Cell Path Length 10mm
Power AC220V±10%, 50Hz/100W
Dimensions/Weight 420*300*175mm (W*D*H)/16kg

DAD3100 Diode Array Detector

Item Specification
Linearity Range ≥2.0 AU(254nm)
Wavelength Range 190～800nm
Noise ≤±1.0*10⁻⁵ AU
Drift ≤3*10⁻⁴ AU/h
Power AC220V±10%, 50Hz/80W
Dimensions/Weight 500*300*175mm (W*D*H)/18kg

O3100 Column Oven

Item Specification
Temperature Range Ambient+5～80℃
Accuracy ±0.3 ℃
Precision ≤0.1 ℃
Power AC220V±10%, 50Hz/130W
Dimensions/Weight 420*300*120mm (W*D*H)/7kg

Technical Parameters:

Model EClassical 3100 (Type I) EClassical 3100 (Type II) EClassical 3100 (Type III) EClassical 3100 (Type IV)
Pump P3100*1 P3100*2

P3130*1(With mixer)
Detector

UV3100*1

 DAD3100(512-diode array)*1
Flow Cell

SC3100*1

 SC3000*1
Gradient Mixer / TD-1-15*1

/
Solvent Bottle Tray

TP3100*1
Sampler Injector

Rheodyne 7725i*1
Column

Supersil ODS2 5μm ID4.6mm*200mm1
Workstation

Kromstation*1

 Kromstation+PDA
AD Adapter

/

 AD3000 adapter
Valve Mounting Frame

ZJ-1*1
Degasser

/

DG3110*1
System Kit

EClassical 3100*1
Power Supply

AC220V±10%, 50Hz
Optional Accessory

S3100 autosampler, column, O3100 column oven, evaporative light scattering detector, differential refractive index detector, fluorescence detector, solvent bottle
Package Size (W*D*H) 600*440*380mm*2;

580*400*280mm*1

 600*440*380mm*3;

580*400*280mm*1

 600*440*380mm*2

320*190*230mm*1

500*360*210mm*1

 600*440*380mm*3
Gross Weight 15kg;

16kg;

9kg

 15kg

15kg;

19kg;

9kg

 19kg

18kg;

4kg;

4kg

 18kg;

18kg;

16.5kg
The details

Specifications

Item
Specification
Flow Range
0.001～10.000mL/min（step 0.001 mL/min）
Accuracy
≤±0.2%
Precision
≤0.075%RSD
Pressure Range
0-45MPa
Power
AC220V±10%, 50 Hz/80W
Dimensions/Weight
420*300*175mm (W*D*H)/12kg
Item
Specification
Flow Range
0.001～10.000mL/min（step 0.001mL/min）
Accuracy
≤±0.1%(1.000mL/min,8.5MPa,water, ambient temperature);≤±2.0%(0.001mL/min~10.000mL/min,8.5MPa,water, ambient temperature）
Precision
≤0.075%(1.000mL/min,8.5MPa,water, ambient temperature);≤0.1%（0.100mL/min~10.000mL/min，8.5MPa,water, ambient temperature）
Maximum Working Pressure
63MPa
Communication Methods
UDP Network Communication
Mixed Volume
750μL
Power
AC220V±10%, 50Hz/100W
Dimensions/Weight
400*300*180mm (W*D*H)/15kg
Item
Specification
Linearity Range
≥1.8AU(5%) (254nm)
Wavelength Range
190～700nm
Noise
≤±0.5*10⁻⁵ AU
Drift
≤1.0*10⁻⁴ AU/h
Cell Path Length
10mm
Power
AC220V±10%, 50Hz/100W
Dimensions/Weight
420*300*175mm (W*D*H)/16kg
Item
Specification
Linearity Range
≥2.0 AU(254nm)
Wavelength Range
190～800nm
Noise
≤±1.0*10⁻⁵ AU
Drift
≤3*10⁻⁴ AU/h
Power
AC220V±10%, 50Hz/80W
Dimensions/Weight
500*300*175mm (W*D*H)/18kg
Item
Specification
Temperature Range
Ambient+5～80℃
Accuracy
±0.3 ℃
Precision
≤0.1 ℃
Power
AC220V±10%, 50Hz/130W
Dimensions/Weight
420*300*120mm (W*D*H)/7kg
