New Products

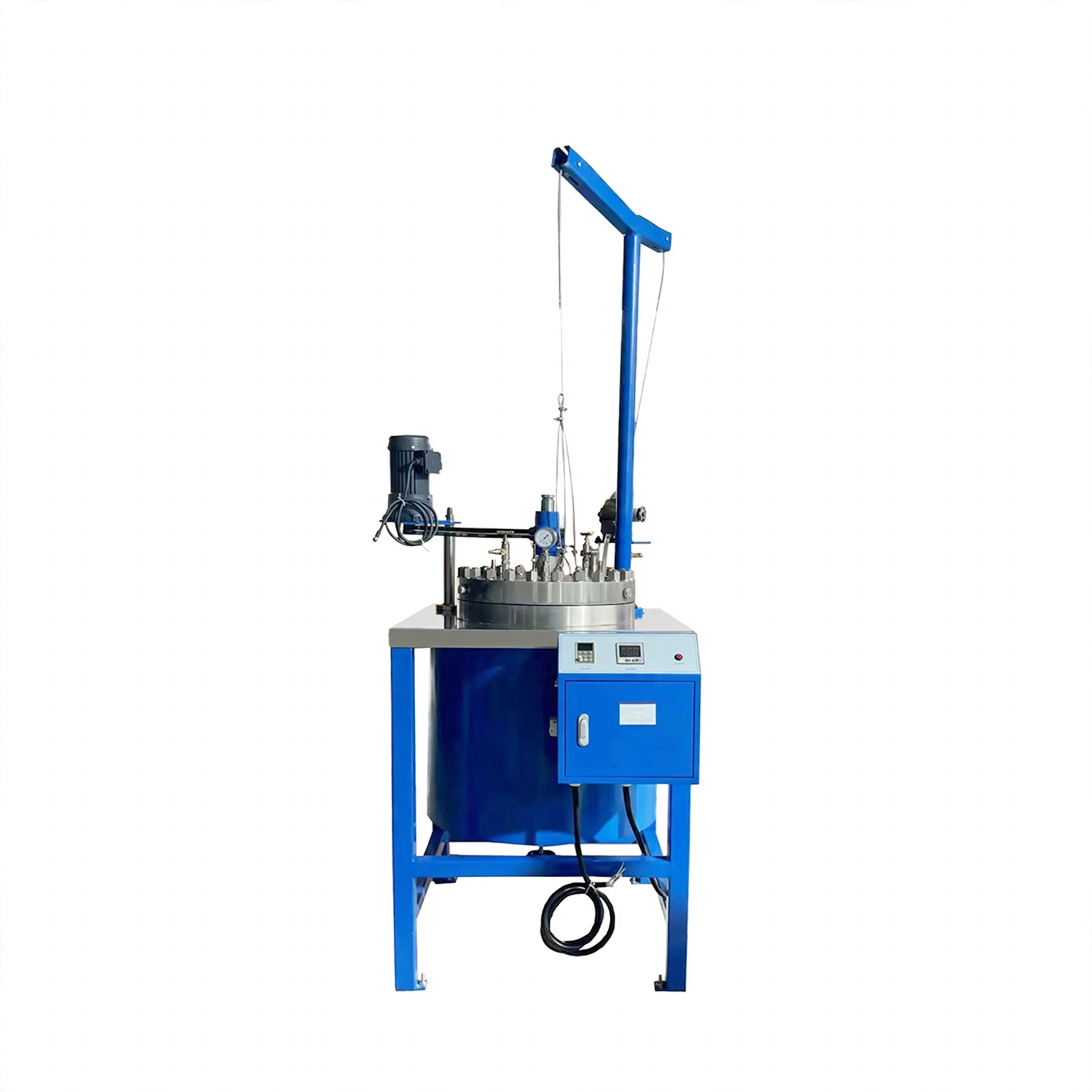

High Pressure Reactor

Model HPR-0.5L HPR-1L HPR-2L HPR-3L HPR-5L HPR-10L HPR-20L HPR-50L Petrol

Application: The Reactor is a stirring device for reacting gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid materials. It can fully stir and react various chemical materials under higher pressure, vacuum and temperature. It is a non-leakage reaction equipment for vulcanization and hydrogenation in petroleum, chemical, organic synthesis, polymer material polymerization, food and other processes.

Capacity
0.5L / 1L / 2L / 3L /…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Real-time monitoring of reaction pressure in the kettle.

2. High power agitator motor, strong and stable performance.

3. Using static sealing structure, the stirrer and the motor drive are connected by a magnetic coupling.

4. The medium and mixing parts are completely sealed to work.

Technical Parameters:

Model HPR-0.5L HPR-1L HPR-2L HPR-3L HPR-5L HPR-10L HPR-20L HPR-50L
Capacity 0.5L 1L 2L 3L 5L 10L 20L 50L
Pressure

22MPa

 10MPa
Temperature

350°C
Stirring Speed

50~1000rpm

50~600rpm
Material

SS304/SS316/Hastelloy alloy
Heating Power 0.7kW 1.5kW 2kW 3kW 4kW 8kW 10kW 15kW
Power Supply

Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz

 Standard: 220V, 50/60Hz; optional: 380V, 50/60Hz

380V, 50/60Hz
Packing Size(W*D*H) 620*480*1430mm 490*690*1490mm 740*590*1590mm 770*520*1580mm 840*590*1650mm 970*620*1380mm 1020*870*1430mm 1700*820*1580mm
Gross Weight 100kg 105kg 160kg 180kg 205kg 225kg 308kg 514kg
The details

Specifications

Model
HPR-0.5L / HPR-1L / HPR-2L / HPR-3L / HPR-5L / HPR-10L / HPR-20L / HPR-50L
Capacity
0.5L / 1L / 2L / 3L / 5L / 10L / 20L / 50L
Pressure
22MPa / 10MPa / 10MPa / 10MPa / 10MPa / 10MPa / 10MPa / 10MPa
Temperature
350°C
Stirring Speed
50~1000rpm / 50~600rpm / 50~600rpm / 50~600rpm / 50~600rpm / 50~600rpm / 50~600rpm / 50~600rpm
Material
SS304/SS316/Hastelloy alloy
Heating Power
0.7kW / 1.5kW / 2kW / 3kW / 4kW / 8kW / 10kW / 15kW
Power Supply
Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz / Standard: 220V, 50/60Hz; optional: 380V, 50/60Hz / 380V, 50/60Hz / 380V, 50/60Hz / 380V, 50/60Hz / 380V, 50/60Hz / 380V, 50/60Hz / 380V, 50/60Hz
Packing Size(W*D*H)
620*480*1430mm / 490*690*1490mm / 740*590*1590mm / 770*520*1580mm / 840*590*1650mm / 970*620*1380mm / 1020*870*1430mm / 1700*820*1580mm
Gross Weight
100kg / 105kg / 160kg / 180kg / 205kg / 225kg / 308kg / 514kg
