Disintegrator

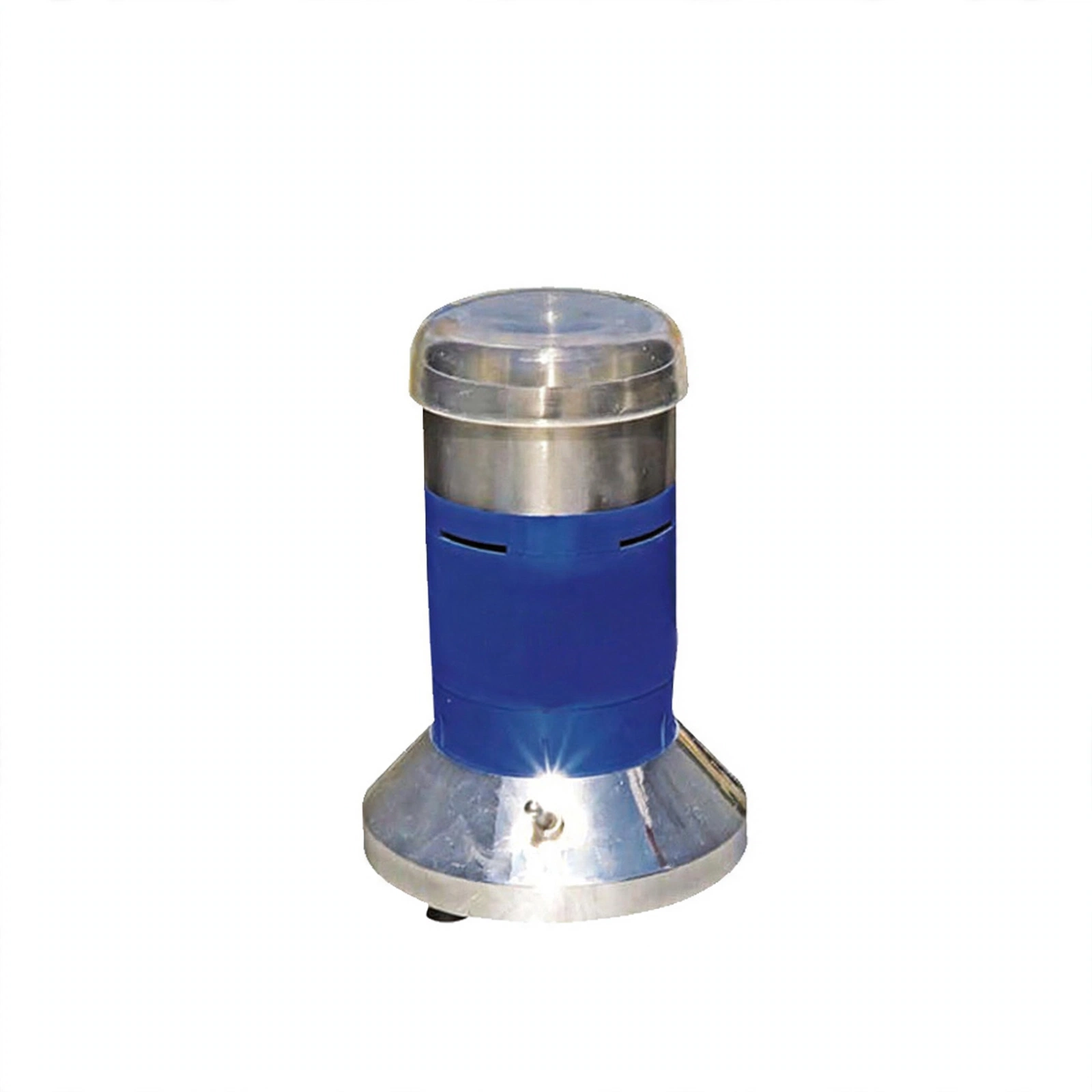

High-speed Universal Disintegrator

Model HSD-80 HSD-100 HSD-200 HSD-400A High speed

Universal Disintegrator is a kind of equipment used to crush all kinds of hard and difficult materials, widely used in chemical industry, metallurgy, food, construction and other industries. The working principle is that through the high-speed relative motion between the movable tooth disk and the fixed tooth disk, the crushed material is crushed by the comprehensive action of tooth impact, friction and impact between the materials ‌.

Max. speed
26,000 rpm
Power
200W / 800W / 800W /…
Net weight
1.4kg / 3kg / 3kg / 9…
Dimensions
Ø110*210H / Ø160*320H…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model HSD-80 HSD-100 HSD-200 HSD-400A
Speed(rpm) 10000 26000 26000 26000
Size of Grinding Room(mm) Ø80*40 Ø100*40 Ø125*56 Ø150*80
Grinding(mesh)

40~200
Input Quantity(≤g/time) 50 100 200 400
Consumption 200W 800W 800W 1000W
Power Supply

AC220V, 50/60Hz
External Size(W*D*H) Ø110*210H Ø160*320H Ø160*360H 230*190*420mm
Net Weight 1.4kg 3kg 3kg 9.3kg
Packing Size(W*D*H) 260*190*185mm 220*210*400mm 220*210*430mm 290*240*470mm
Gross Weight 1.7kg 3.5kg 3.5kg 10kg
The details

Specifications

Model
HSD-80 / HSD-100 / HSD-200 / HSD-400A
Speed(rpm)
10000 / 26000 / 26000 / 26000
Size of Grinding Room(mm)
Ø80*40 / Ø100*40 / Ø125*56 / Ø150*80
Grinding(mesh)
40~200
Input Quantity(≤g/time)
50 / 100 / 200 / 400
Consumption
200W / 800W / 800W / 1000W
Power Supply
AC220V, 50/60Hz
External Size(W*D*H)
Ø110*210H / Ø160*320H / Ø160*360H / 230*190*420mm
Net Weight
1.4kg / 3kg / 3kg / 9.3kg
Packing Size(W*D*H)
260*190*185mm / 220*210*400mm / 220*210*430mm / 290*240*470mm
Gross Weight
1.7kg / 3.5kg / 3.5kg / 10kg
