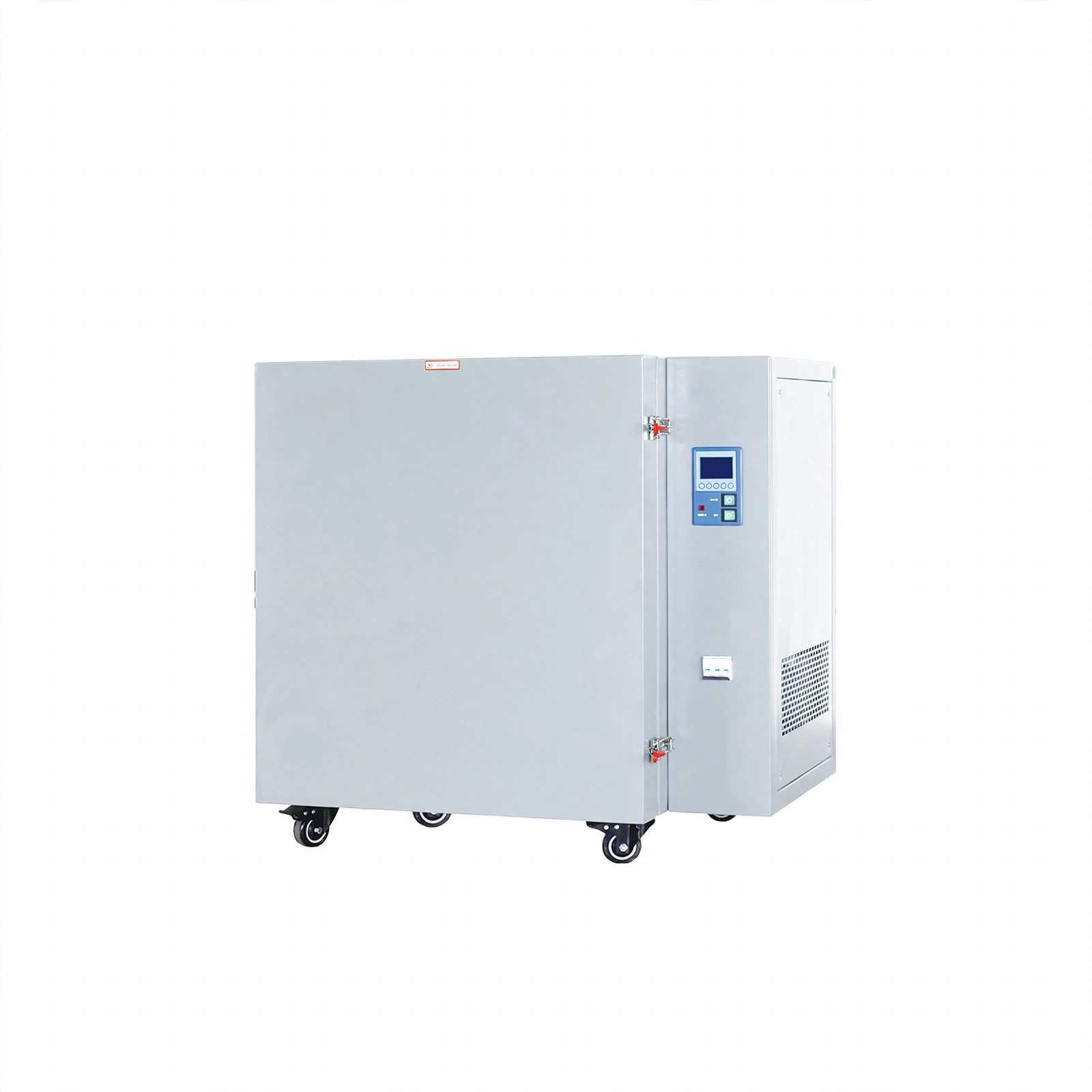

High Temperature Drying Oven

High Temperature Drying Oven

Model BOV-H50, BOV-H100, BOV-H226 Refrigerated

The High Temperature Drying Oven is an advanced laboratory oven designed for precise drying, curing, and heat treatment applications at elevated temperatures. It is ideal for use in industries such as materials research, electronics, and manufacturing, where controlled drying and heat processes are critical.

Capacity
50L / 100L / 226L
Temperature
RT+20~400℃ / 50~500℃…
Power
3250W / 4050W / 8000W
Net weight
153kg / 180kg / 174kg
Dimensions
890*700*920mm / 990*7…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.

2. PID microprocessor temperature control, precise and reliable temperature control.

3. The inner box is designed with a circular arc structure, which is easy to clean.

4. Optional printer or RS485 interface for software connection(For BOV-H50/100).

Technical Parameters:

Model BOV-H50 BOV-H100 BOV-H226
Capacity 50L 100L 226L
Temp. Range

RT+20~400℃

 50~500℃
Temp. Precision

0.1℃
Temp. Fluctuation

±0.5℃

 ±1℃
Temp. Fluctuation

±3.0%

 ±3.5%
Timing Range

0~5999min

 0~9999min
Display

LCD

 LED
Alarm

Over-temperature alarm, temperature probe damage alarm
Material

External cold-rolled steel with painting, internal stainless steel
Ambient Temp.

5~40℃
Power Supply

AC380V, 50/60Hz
Consumption 3250W 4050W 8000W
Shelves

2pcs

 3pcs
Optional Accessories

Printer/RS485/USB

 /
Internal Size(W*D*H) 350*350*400mm 450*450*450mm 602*500*753mm
External Size(W*D*H) 890*700*920mm 990*790*990mm 1070*770*1122mm
Package Size(W*D*H) 1010*820*1150mm 1100*920*1210mm 1200*890*1280mm
Net Weight 153kg 180kg 174kg
Gross Weight 199kg 245kg 204kg
The details

Specifications

Model
BOV-H50 / BOV-H100 / BOV-H226
Capacity
50L / 100L / 226L
Temp. Range
RT+20~400℃ / 50~500℃ / 50~500℃
Temp. Precision
0.1℃
Temp. Fluctuation
±0.5℃ / ±1℃ / ±1℃
Temp. Fluctuation
±3.0% / ±3.5% / ±3.5%
Timing Range
0~5999min / 0~9999min / 0~9999min
Display
LCD / LED / LED
Alarm
Over-temperature alarm, temperature probe damage alarm
Material
External cold-rolled steel with painting, internal stainless steel
Ambient Temp.
5~40℃
Power Supply
AC380V, 50/60Hz
Consumption
3250W / 4050W / 8000W
Shelves
2pcs / 3pcs / 3pcs
Optional Accessories
Printer/RS485/USB / / / /
Internal Size(W*D*H)
350*350*400mm / 450*450*450mm / 602*500*753mm
External Size(W*D*H)
890*700*920mm / 990*790*990mm / 1070*770*1122mm
Package Size(W*D*H)
1010*820*1150mm / 1100*920*1210mm / 1200*890*1280mm
Net Weight
153kg / 180kg / 174kg
Gross Weight
199kg / 245kg / 204kg
