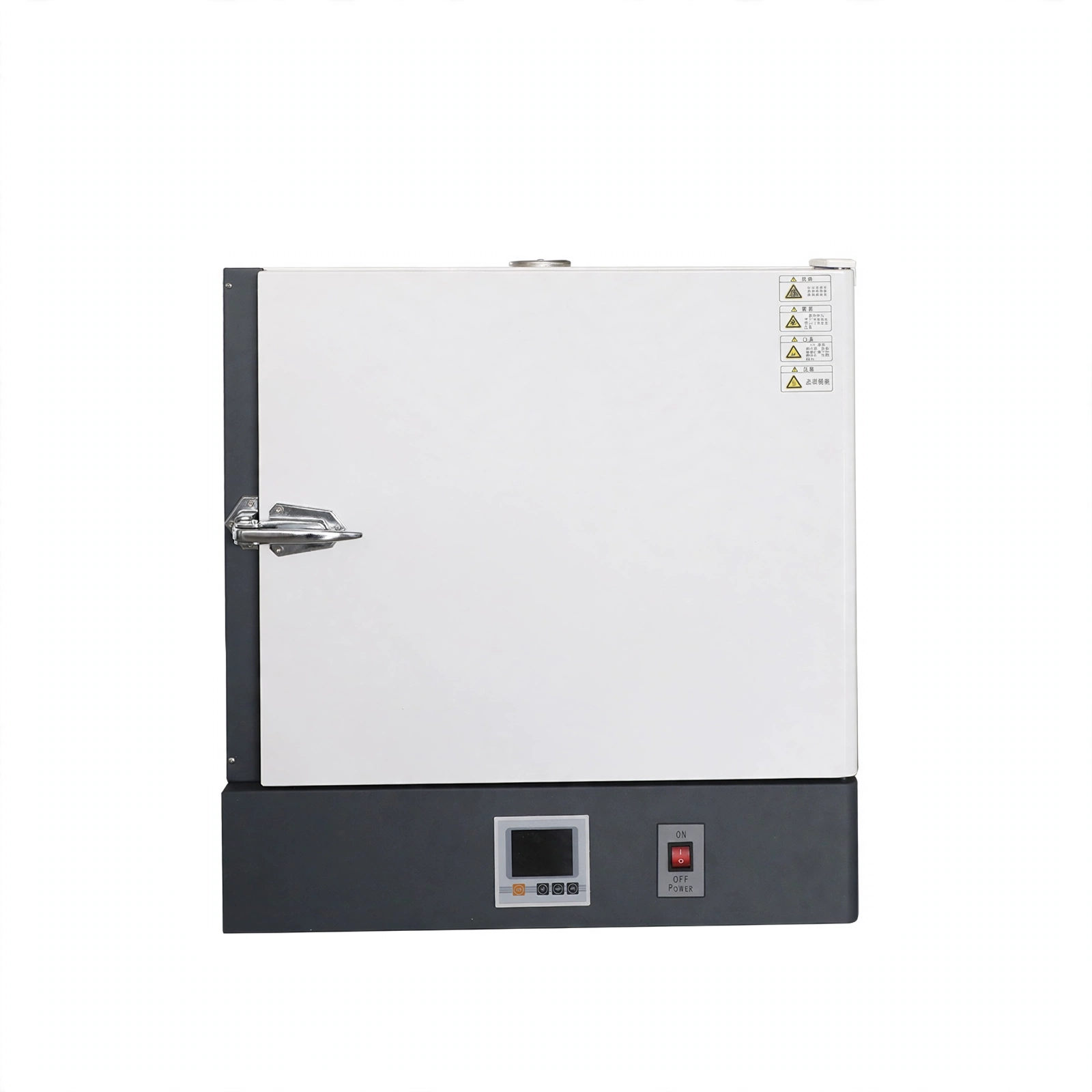

High Temperature Test Chamber

Model BOV-50BE / BOV-80BE / BOV-150BE / BOV-250BE +1 Electric Refrigerated

Application: High Temperature Test Chamber is a necessary test equipment in aviation, automobile, home appliance, scientific research and other fields. It is used to test and determine the parameters and performance of electrical, electronic and other products and materials after the temperature environment changes of high temperature or constancy test.

Capacity
50L / 80L / 150L / 25…
Temperature
50~500℃
Power
3000W / 3000W / 4500W…
Net weight
58kg / 80kg / 102kg /…
Dimensions
510*650*750 / 575*700…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The shell of the product is made of cold- rolled steel plate, surface electrostatic spraying.

2. The inner chamber is made of high quality 304 mirror stainless steel, four corner arc transition,double liner, beautiful appearance.

3. Equipped with 304 stainless steel handle, adjustable, better sealing.

4. Adopt Intelligent PID temperature control instrument, with functions of timing, over–alarm indication, temperature deviation correction, temperature control self-tuning etc..

5. Fully enclosed stainless steel heating tube with gas jacket heating mode, high temperature fancirculation, make the temperature more uniform.

6. The sealing strip is made of aviation sealing material and can withstand high temperature up to1000℃.

7. Air supply mode: fan forced circulation.

8. Thickened insulation with heat insulation layer inside.

9. Can add install LCD instrument, programmable control instrument, printer, 485 interface, U diskstorage, SMS alarm etc..

Technical Parameter:

Model BOV-50BE BOV-80BE BOV-150BE BOV-250BE BOV-350BE
Volume 50L 80L 150L 250L 350L
Temp. Range

50~500℃

Temp.

Resolution

0.1℃

Temp. Fluctuation

±1℃

Time Range

0-9999min

Shelves

2pcs/adjustable

Consumption 3000W 3000W 4500W 5500W 6500W
Power Supply

Standard: 220V 50/60HZ

Optional: 110V 50/60HZ. Wiring Method: Air switch (For 110V)

Three Phase Voltage AC 380V 50/60HZ

Internal Size(L*W*H) mm 330*350*350 400*400*500 500*500*600 500*650*750 1000*440*800
External Size(L*W*H) mm 510*650*750 575*700*880 640*800*1040 640*950*1190 1190*770*1280
Package Size(L*W*H) mm 620*820*820 670*700*900 775*935*1180 775*1085*1330 1200*750*1130
Net Weight 58kg 80kg 102kg 135kg 160kg
Gross Weight 68kg 94kg 121kg 156kg 190kg

Note: The above temperature and humidity parameters are measured at no load temperature of 28℃ and humidity of 65%RH.

The details

Specifications

Model
BOV-50BE / BOV-80BE / BOV-150BE / BOV-250BE / BOV-350BE
Volume
50L / 80L / 150L / 250L / 350L
Temp. Range
50~500℃
Temp. Resolution
0.1℃
Temp. Fluctuation
±1℃
Time Range
0-9999min
Shelves
2pcs/adjustable
Consumption
3000W / 3000W / 4500W / 5500W / 6500W
Power Supply
Standard: 220V 50/60HZ Optional: 110V 50/60HZ. Wiring Method: Air switch (For 110V) / Three Phase Voltage AC 380V 50/60HZ / Three Phase Voltage AC 380V 50/60HZ / Three Phase Voltage AC 380V 50/60HZ / Three Phase Voltage AC 380V 50/60HZ
Internal Size(L*W*H) mm
330*350*350 / 400*400*500 / 500*500*600 / 500*650*750 / 1000*440*800
External Size(L*W*H) mm
510*650*750 / 575*700*880 / 640*800*1040 / 640*950*1190 / 1190*770*1280
Package Size(L*W*H) mm
620*820*820 / 670*700*900 / 775*935*1180 / 775*1085*1330 / 1200*750*1130
Net Weight
58kg / 80kg / 102kg / 135kg / 160kg
Gross Weight
68kg / 94kg / 121kg / 156kg / 190kg
