New Products

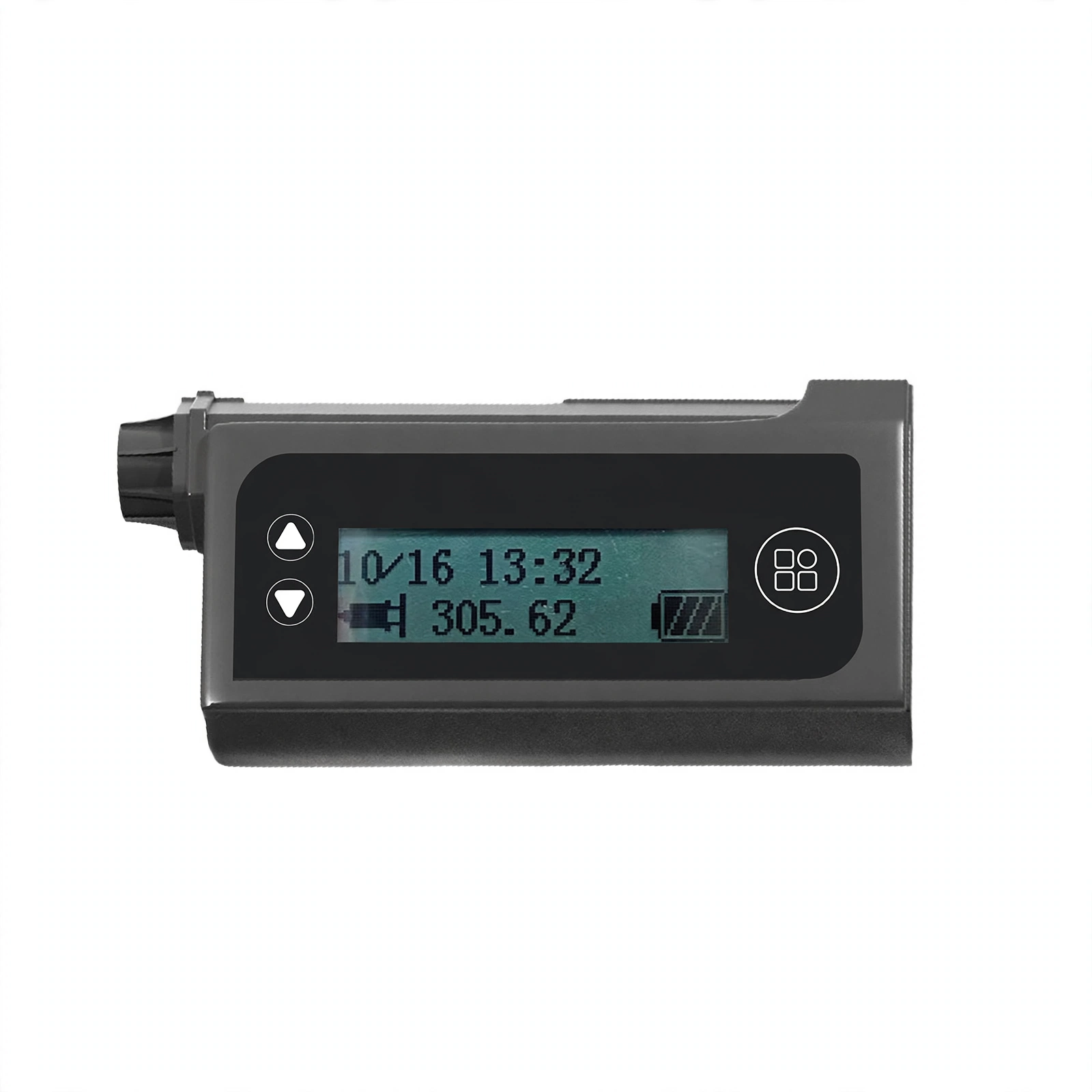

Insulin Pump

Model BK-IP01 Blood & clinical Manual

An insulin pump is a Class III medical device designed to mimic physiological endogenous pancreatic insulin secretion via Continuous Subcutaneous Insulin Infusion (CSII). It continuously delivers micro-doses of rapid-acting insulin to maintain stable fasting and inter-prandial blood glucose levels. Prior to meals, patients can manually program and administer bolus insulin based on carbohydrate intake to effectively control postprandial glycemia.

Max. load
Automatic plunger res…
Battery
CR10210, disposable,…
Net weight
75 g
Dimensions
98*48*22 mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Dual-CPU Mutual Supervision & Self-diagnosis System: Optimizes infusion accuracy and operational safety with dual-processor mutual monitoring.

2. Ultra-fine Precision Dosing: Enables minimum incremental insulin delivery for individualized flexible glycemic management.

3. Original Swiss MAXON Integrated Drive Module: Imported core drive component with stable mechanical performance and long service life.

4. Large-Capacity Historical Data Logging: Stores full infusion history for real-time review and traceability of therapeutic records.

5. Multi-mode Programmable Infusion: Supports multiple preset delivery profiles to accommodate variable dietary intake for diabetic users.

Technical Parameters:

Model BK-IP01
Number of Basal Rate Segments 24 programmable segments within a 24-hour cycle
Basal Dose Adjustment Increment 0.1 U/0.05 U
Minimum Single Infusion Volume 0.05U
Available Infusion Modes Basal Infusion, Temporary Basal Rate, Standard Bolus, Extended Bolus
Basal Rate Programming Full 24-hour programmable basal profile with total daily basal dose display
Max. Basal Infusion Rate 0U/h~24U/h
Max. Standard Bolus Dose 0.1U~24U
Compatible Insulin Concentration 40U/mL, 100U/mL
Standard Bolus Setting Range 0.1U up to user-set maximum bolus limit
Extended Bolus Options 3 preset delivery profiles: Rectangular, Triangular, Square-wave; Max duration: 0–3 hours, adjustable in 15-minute increments
Daily Total Infusion Log Stores and displays daily total insulin consumption for the most recent 128 days
Bolus History Log Stores and retrieves the latest 128 entries of standard & extended bolus records
Infusion Stop Log Records timestamp and numerically coded cause for up to 128 infusion suspension events
Reservoir Loading Function Automatic plunger reset plus auto-calculation of loaded insulin volume
Alarm Notification Audible buzzer + vibration alert
Electronic Configuration Dual-CPU architecture
Infusion Tubing Connector Standard Luer-lock connector
Waterproof Rating IPX7
Battery CR10210, disposable, 30-day battery life
External Size(W*D*H) 98*48*22 mm
Net Weight 75 g
Packing Size(W*D*H) 270*190*120mm
Gross Weight 900g
The details

Specifications

Model
BK-IP01
Number of Basal Rate Segments
24 programmable segments within a 24-hour cycle
Basal Dose Adjustment Increment
0.1 U/0.05 U
Minimum Single Infusion Volume
0.05U
Available Infusion Modes
Basal Infusion, Temporary Basal Rate, Standard Bolus, Extended Bolus
Basal Rate Programming
Full 24-hour programmable basal profile with total daily basal dose display
Max. Basal Infusion Rate
0U/h~24U/h
Max. Standard Bolus Dose
0.1U~24U
Compatible Insulin Concentration
40U/mL, 100U/mL
Standard Bolus Setting Range
0.1U up to user-set maximum bolus limit
Extended Bolus Options
3 preset delivery profiles: Rectangular, Triangular, Square-wave; Max duration: 0–3 hours, adjustable in 15-minute increments
Daily Total Infusion Log
Stores and displays daily total insulin consumption for the most recent 128 days
Bolus History Log
Stores and retrieves the latest 128 entries of standard & extended bolus records
Infusion Stop Log
Records timestamp and numerically coded cause for up to 128 infusion suspension events
Reservoir Loading Function
Automatic plunger reset plus auto-calculation of loaded insulin volume
Alarm Notification
Audible buzzer + vibration alert
Electronic Configuration
Dual-CPU architecture
Infusion Tubing Connector
Standard Luer-lock connector
Waterproof Rating
IPX7
Battery
CR10210, disposable, 30-day battery life
External Size(W*D*H)
98*48*22 mm
Net Weight
75 g
Packing Size(W*D*H)
270*190*120mm
Gross Weight
900g
