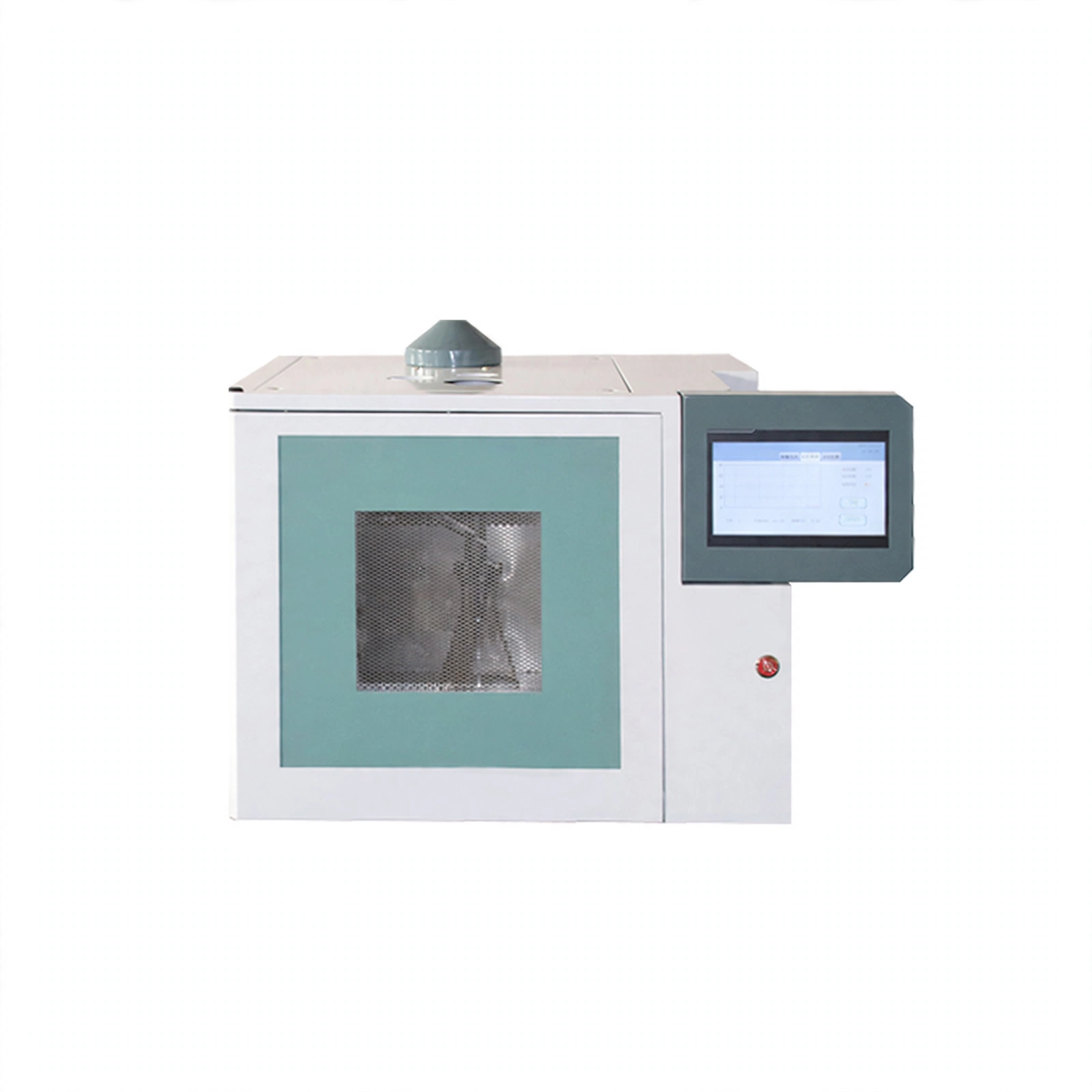

The intelligent microwave synthesis/extraction system can catalyze many types of organic, pharmaceutical and biochemical reactions such as addition, substitution, esterification, hydrolysis, acylation, polymerization, condensation, cyclization and oxidation, as well as solvent extraction of food, natural products and minerals.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. Accurate temperature control, 8-inch display, touch control, simple and convenient operation, can store data.
2. Real-time online display and recording of reaction data and curve images.
3. The program controls the reaction conditions and the experiment can be divided into multiple working phases.
4. The parameters of unsuitable reaction conditions can be modified online at any time.
5. It has the function to save and query experimental records.
Technical Parameters:
| Model | BMS-WHC1 |
| Reaction Volume | 10~1500ml |
| Microwave Reaction Chamber | 42 liters stainless steel chamber, surface multi-layer anti-corrosion coating on the surface, corrosion resistance, high temperature resistance. |
| Microwave Reaction System | Open reaction system, can be installed drip funnel and condenser tube for reflux reaction, microwave leakage in line with national standards, safe and reliable. |
| Microwave Power | 0~1000W, with 10 adjustable power levels,microwave power is controlled automatically with temperature conversion. |
| Control System | High precision contact platinum-plated temperature sensor, real-time monitoring of reaction temperature, accurate control of reaction process. |
| Working Time | Can work continuously for 8 hours. |
| Display | 8 inch touch screen LCD display, touch operation, real-time display of closed reaction tank temperature and temperature curve, and has the function of saving and querying experimental records. |
| Magnetic Stirring | Provide different speeds of magnetic stirring, infinitely variable speed 0~2000RPM; Mechanical stirring speed range: 0~2000RPM(optional). |
| Temp. Range | 0~300℃ |
| Temp. Accuracy | ≤±1℃ |
| Temperature Control | The intelligent temperature control mathematical model algorithm ensures the accuracy of temperature control, and eliminates the phenomenon of over temperature and low temperature. |
| Interface | Equipped with inert gas protection interface. |
| Supply Power 供电 | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| Package Size(W*D*H) | 550*550*600mm |
| Gross Weight | 45kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Microwave Synthesis Extractor is an advanced laboratory instrument designed to enhance the efficiency of chemical synthesis and extraction processes using microwave energy. This system significantly reduces reacti…
The Microwave Synthesis Extractor is an advanced laboratory instrument designed to enhance the efficiency of chemical synthesis and extraction processes using microwave energy. This system significantly reduces reacti…
