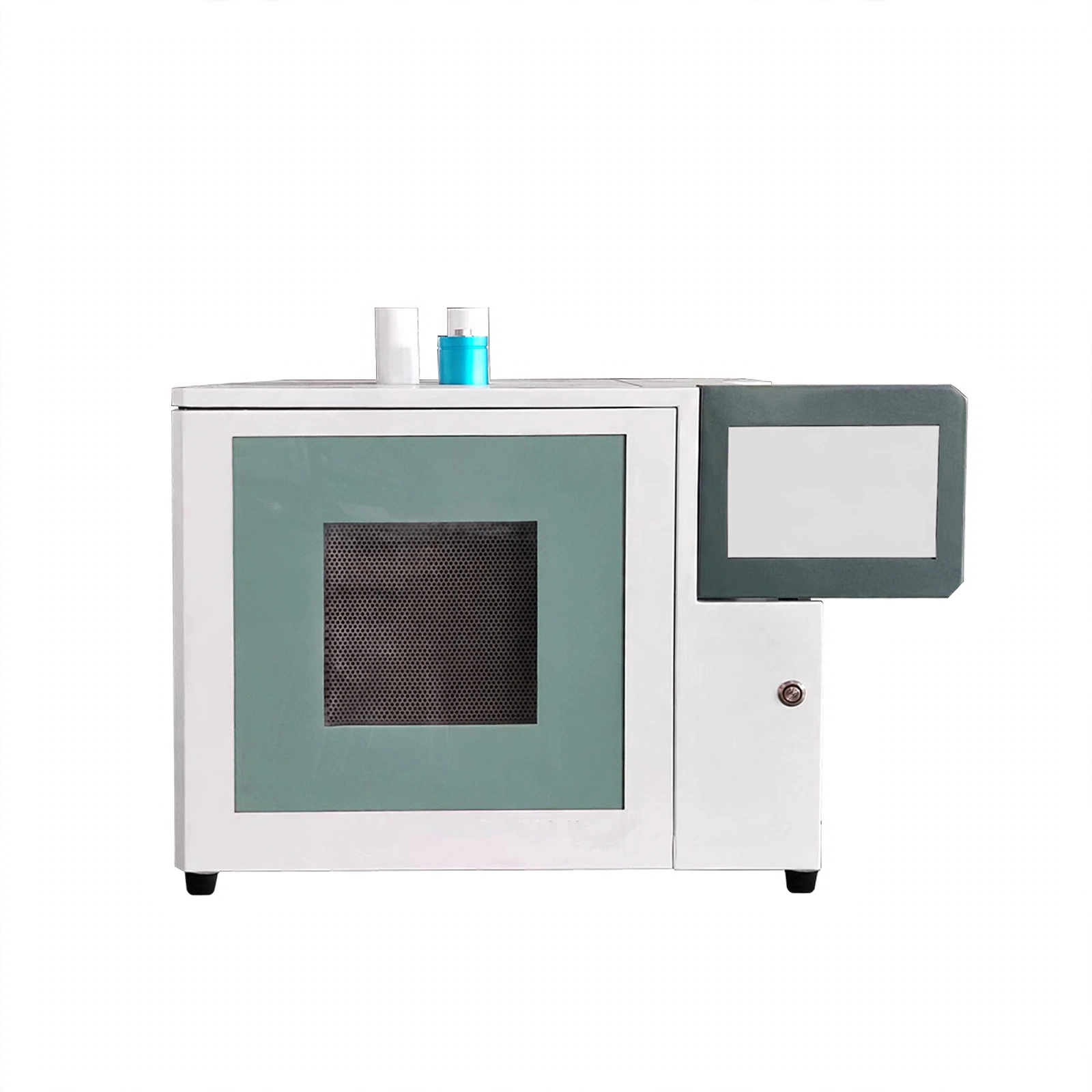

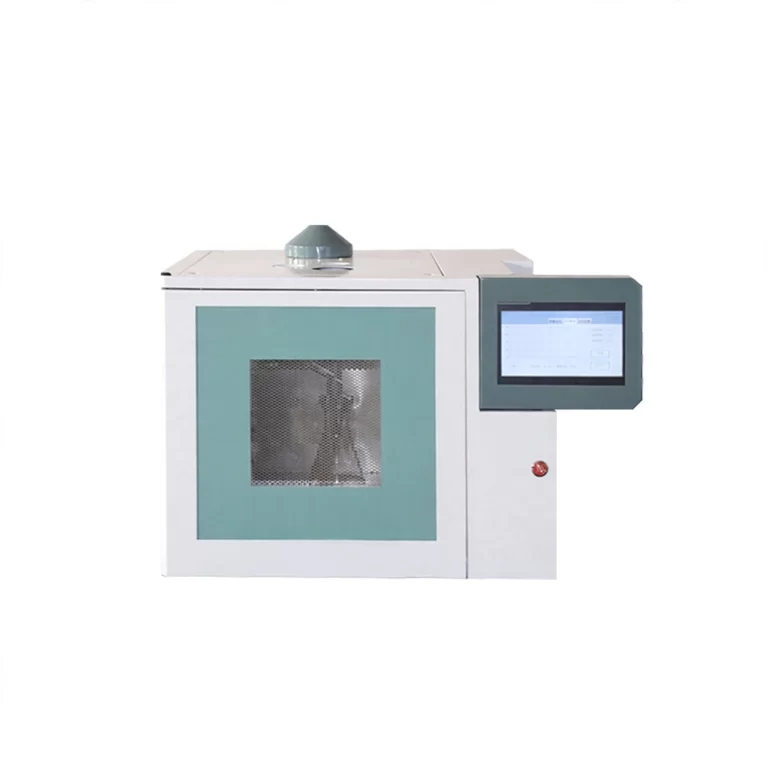

The Microwave Synthesis Extractor is an advanced laboratory instrument designed to enhance the efficiency of chemical synthesis and extraction processes using microwave energy. This system significantly reduces reaction times, improves yield, and ensures better reproducibility compared to conventional heating methods.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. The power is automatically adjustable in 10 gears, and the microwave power automatically changes with temperature.
2. 42L Stainless steel chamber with multiple layers of anti-corrosion coating.
3. High precision temperature sensor, real-time monitoring of reaction temperature, accurate control of reaction process.
4. 8-inch touch screen, real-time display of closed reaction tank temperature and temperature curve.
5. Saving and querying experimental records.
6. Open reaction system, dropping funnel and condenser can be installed for reflux reaction.
7. Equipped with inert gas protection interface.
Technical Parameters:
| Model | BK-ME1 |
| Reaction Volume | 10~1500ml |
| Stirring Speed | Magnetic: CVT 0~2000rpm(Standard)
Mechanical: 0~2000rpm(Optional) |
| Continuous Working Time | 8 hours |
| Temp Control Range | 0~300℃ |
| Temp Control Accuracy | ≤±1℃ |
| Temp Measurement Accuracy | ≤±0.2℃ |
| Consumption | 0~1000W, 10 gears automatically adjustable |
| Power Supply | AC110/220V, 50/60Hz |
| External Size | 400*600*450mm |
| Package Size | 500*700*500mm |
| Net/Gross Weight(kg) | 40/55kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The intelligent microwave synthesis/extraction system can catalyze many types of organic, pharmaceutical and biochemical reactions such as addition, substitution, esterification, hydrolysis, acylation, polymerization,…
The Microwave Synthesis Extractor is an advanced laboratory instrument designed to enhance the efficiency of chemical synthesis and extraction processes using microwave energy. This system significantly reduces reacti…
