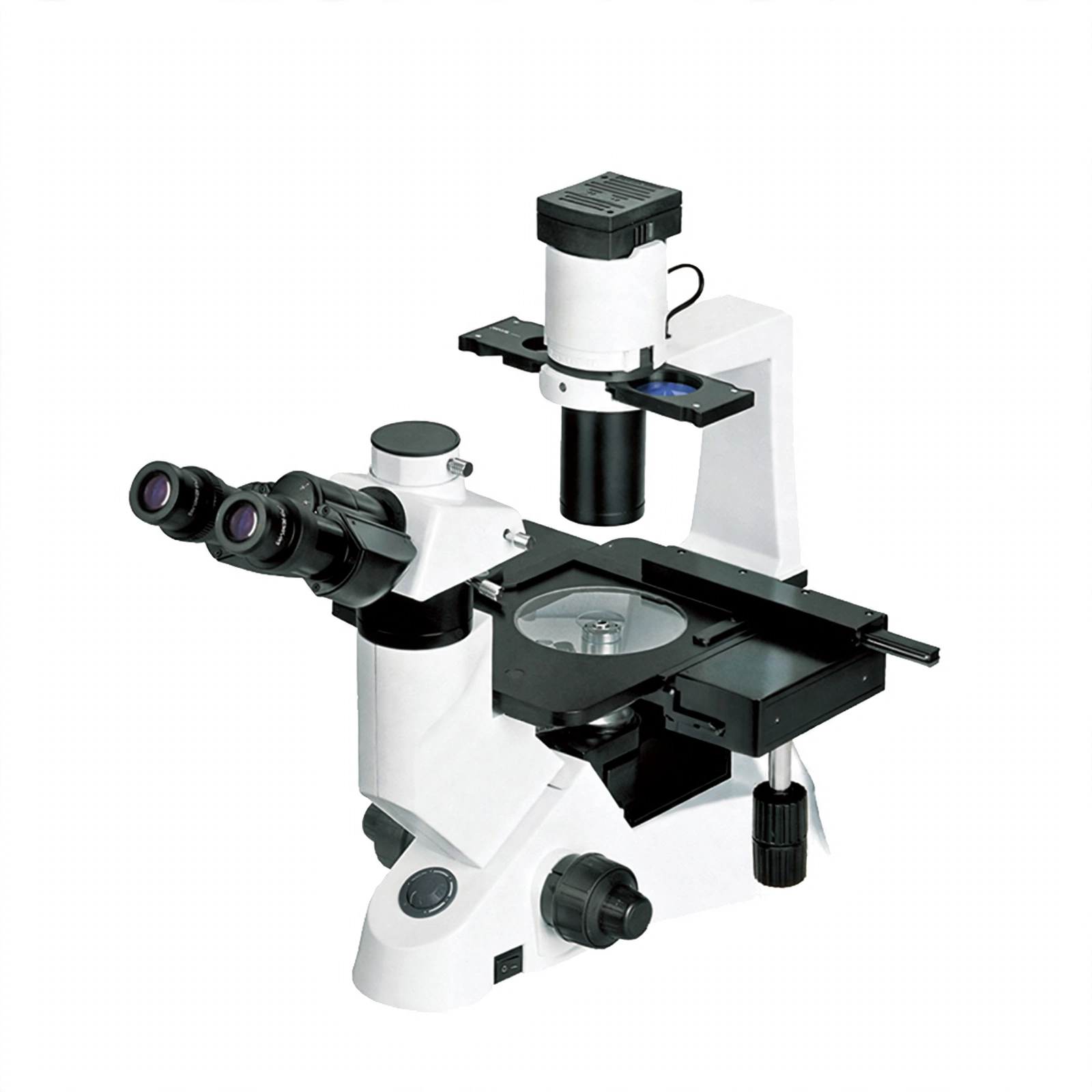

The inverted biological microscope is a microscope specifically designed for viewing living cells and other biological samples in culture. Its main feature is that the position of the objective lens and the lighting system is reversed, the objective lens is under the stage, and the transmitted light source is above the stage. This design makes the inverted biological microscope particularly suitable for applications in cell culture, tissue culture, plankton, environmental protection, and food inspection.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BMI-100 | ||
| Optical System |
Infinite Optical System |
√ | |
| Viewing Head |
Trinocular Head Inclined at 30°, Interpupillary Distance 48~75mm |
√ | |
| Eyepiece |
High-point, Extra Wide Field Eyepiece EW10X/22 |
√ | |
|
Objective |
LWD Infinite Plan Objective |
4X/0.1, WD 17.3mm | √ |
| 10X/0.25, WD 10mm | ● | ||
| 20X/0.4, WD 5.1mm | ● | ||
| 40X/0.6, WD 2.1mm | √ | ||
|
Infinite Plan Phase Objective |
PH10X/0.25, WD 10 mm | √ | |
| PH20X/0.4, WD 5.1mm | √ | ||
| PH40X/0.65, WD 2.1mm | ● | ||
| Nosepiece |
Quintuple Nosepiece |
√ | |
| Condenser |
ELWD Condenser NA 0.3, LWD 72mm(Without Condenser 150mm) |
√ | |
| Centering |
Centering Telescope(Φ30MM) |
● | |
|
Phase Annulus |
10X~20X, Phase Annulus Plate(Fixed) |
√ | |
|
10X~20X、40X Phase Annulus Plate(Adjustable) |
● | ||
|
Stage |
Plain Stage 160X250mm |
√ | |
|
Glass Insert |
√ | ||
|
Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120X78mm |
● | ||
|
Auxiliary Stages70X180mm |
√ | ||
|
Terasaki Holder |
● | ||
|
Φ35mm Petri Dish Holder |
● | ||
|
Φ54mm Slide Glass Holder |
● | ||
|
Φ90mm Petri Dish Holder |
● | ||
| Focusing |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm |
√ | |
|
Illumination |
Halogen Lamp 6V/30W |
√ | |
|
LED |
● | ||
| Filter |
Blue、Green and Ground Glass , Diameter 45mm |
√ | |
| Power Supply |
AC110~220V, 50/60Hz |
√ | |
| Accessories |
Inverted flurescent attahement FL-100, Photo Attachment, Video Adapter with C Mount |
● | |
| Package Size |
468*397*665mm |
√ | |
| Gross Weight |
15.5kg |
√ | |
Note: √ Standard Outfit, ●Optional
Trinocular microscope can be installed camera and screen.
