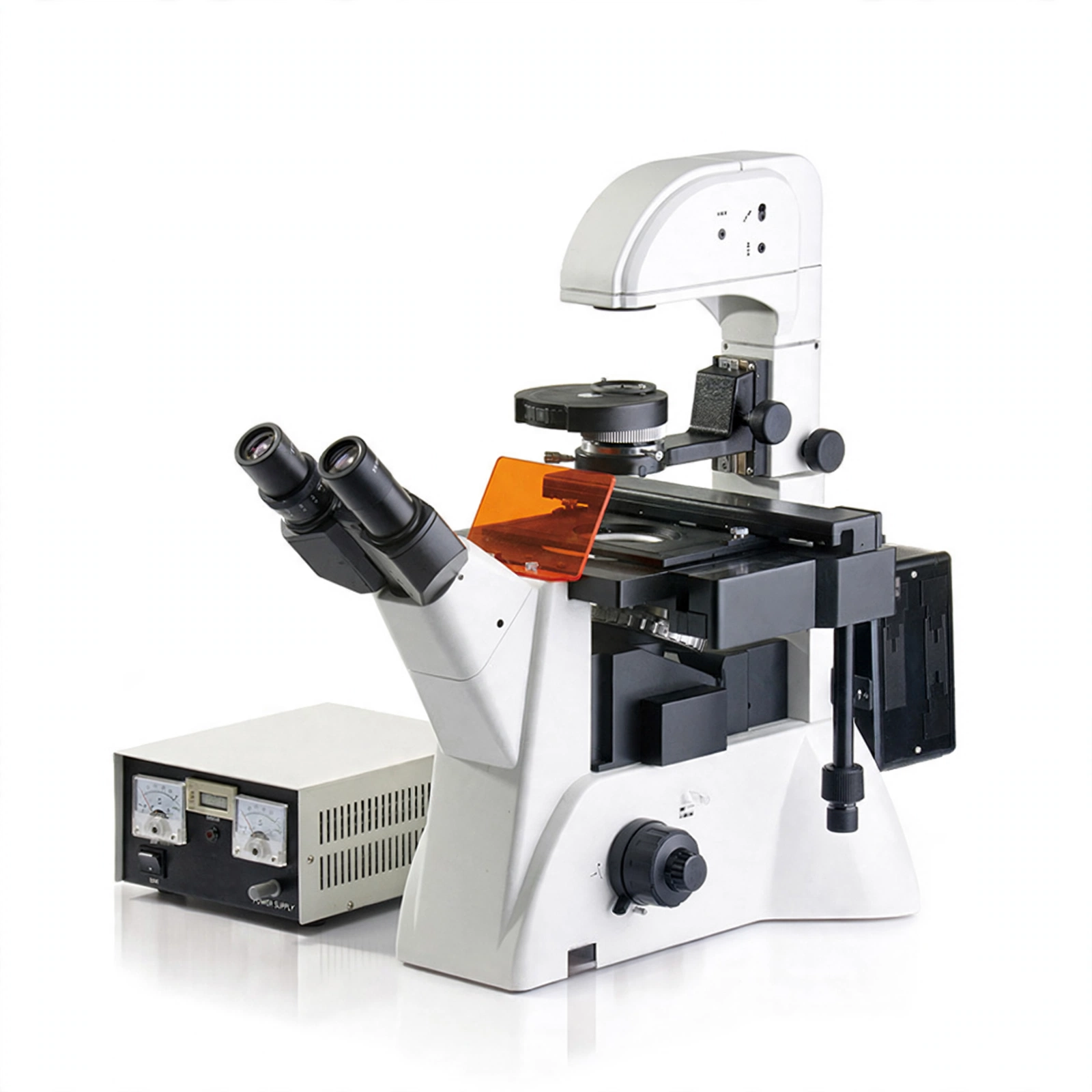

The BBM-38XIID inverted fluorescence microscope consists of an epifluorescence microscope system and an inverted biological microscope system. It adopts an excellent infinity optical system, equipped with a long working distance flat field objective and a wide field eyepiece. The compact, stable and high-rigidity main body, the rotating swing-in and swing-out condenser system, and the epifluorescence microscope system adopt a modular design concept which can safely and quickly adjust the lighting system and switch the fluorescent filter components. The product can be used for microscopic observation of cell tissues and transparent liquid tissues, and can also be used for fluorescence microscopy observation in the fields of biopharmaceuticals, medical testing, disease prevention, etc.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BBM-38XIID |
| Drawtube | Articulated drawtube, inclined at 45° |
| Total Magnification | 100X~400X(Eyepiece x Objective) |
| Mechanical Tube Length | Infinite distance |
| Plan Wide Field Eyepiece | WF10X/Φ22 |
| Plane Infinite Achromatic Objective | ∞10X/0.25 WD4.3mm, ∞20X/0.40 WD8.0mm, ∞40X(S)0.60 WD3.5mm |
| Plane Infinite Phase Contrast | ∞10X0.25 WD4.3mm, ∞20X0.40 WD8.0mm, ∞40X(S)0.60 WD3.5mm |
| Interpupil Distance | 53~75mm |
| Nosepiece | Fivetuple Nosepiece |
| Double Layers Mechanical Stage | Stage Size: 260*208mm, Moving Range: 77*134.5mm |
| Petri Dish Plates | Petri Dish Plate 1: 86mm×129.5mm;
Petri Dish Plate 2: 34mm×77.5mm; Petri Dish Plate 3: 57mm×82mm |
| Condenser | Rotatable-phase contrast condenser, working distance 55mm |
| Exciting | UV: EX330-400nm;
V: EX395-415nm; B: EX420-485nm; G: EX460-550nm |
| Light Source-Epi-illumination | 230V(110V)/100W mercury lamp, power supply box |
| Light Source-Transmission Illuminate | Halogen bulb 6V/30W, Adjustable brightness |
| Computer Image-forming System | Fluorescent CMOS camera, adapter |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.

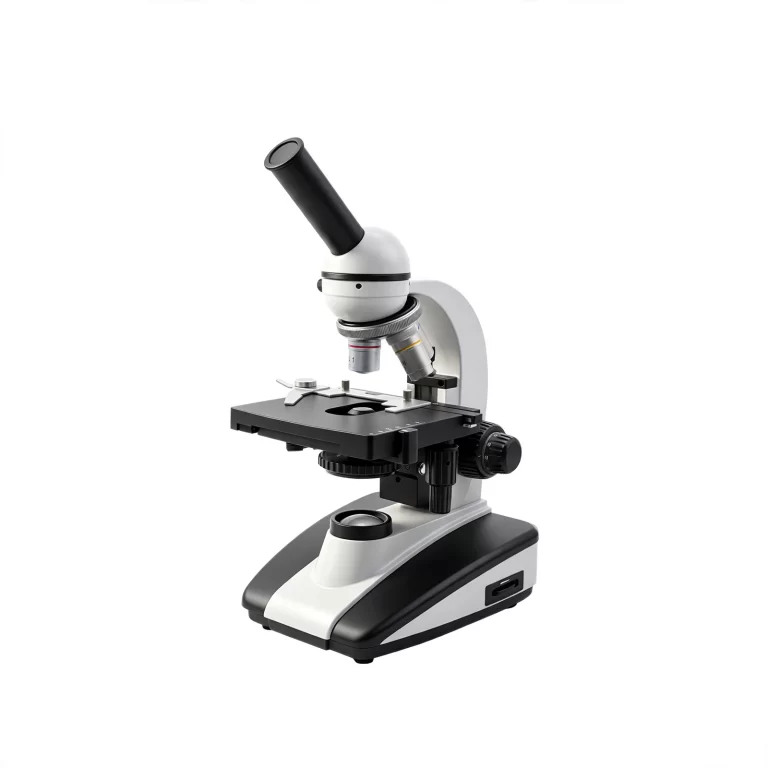

The Biological Microscope BBM-3110 Series is a versatile finite optical system microscope available with multiple viewing head options, including monocular, binocular, trinocular, built-in camera, and teaching configu…

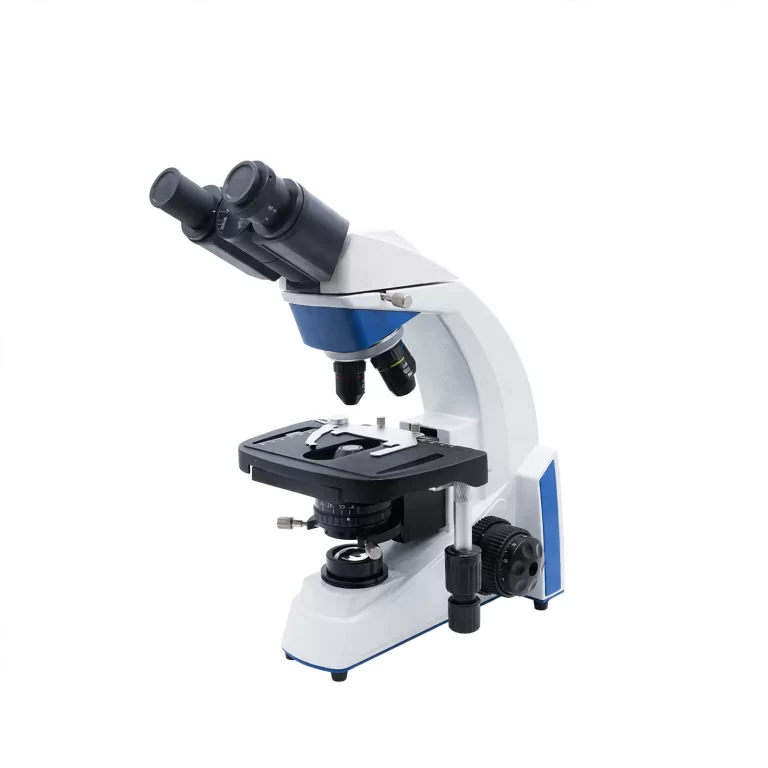

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispe…

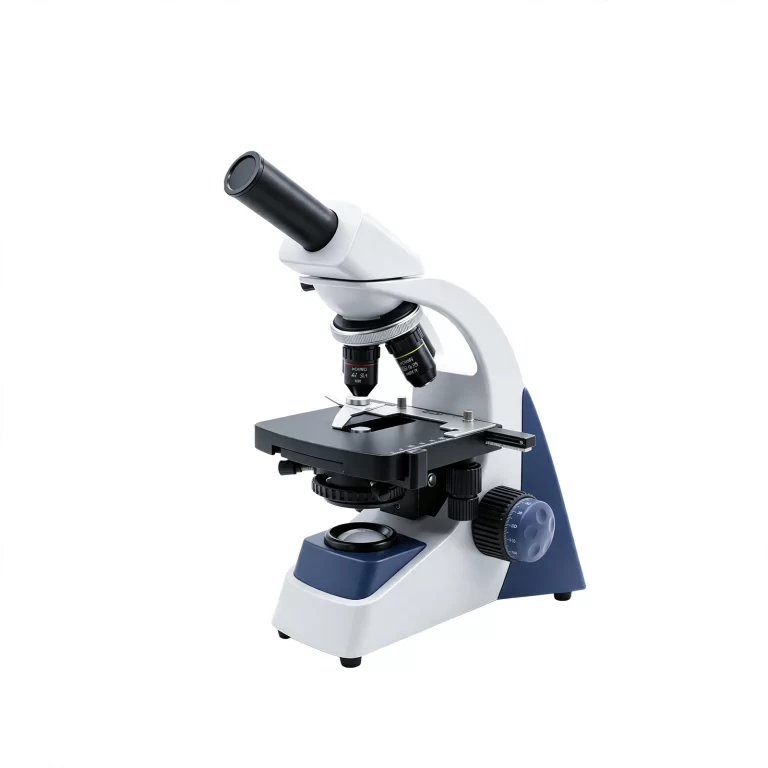

The Biological Microscope BBM-3210 Series is a finite optical system microscope with multiple viewing head options, including monocular, binocular, trinocular, and teaching configurations. It features WF10X and WF16X…

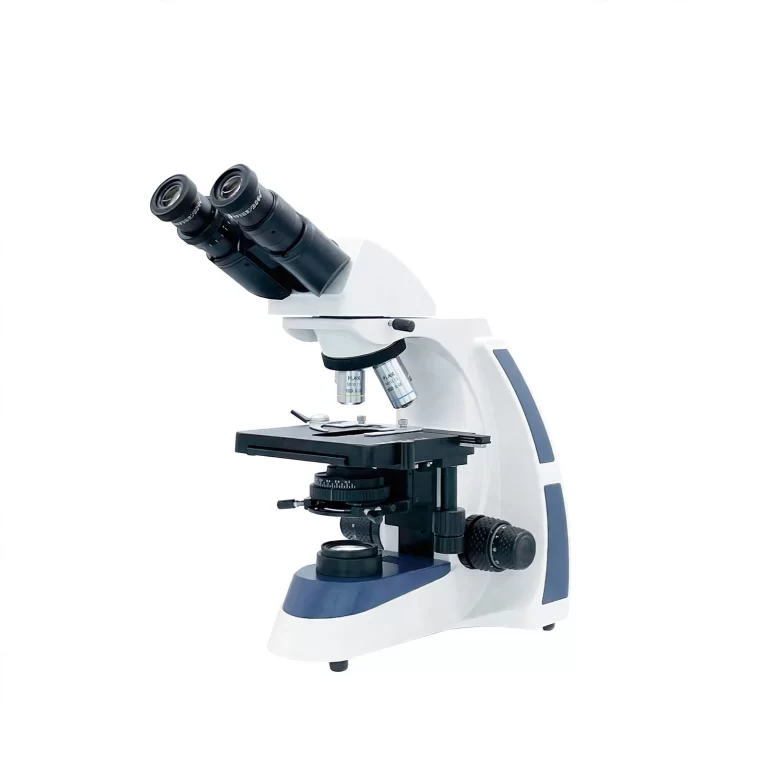

The Biological Microscope BBM-3310 Series is a finite optical system microscope available with binocular or trinocular Seidentopf heads, both inclined at 30° and 360° rotatable. It features achromatic objectives from…
