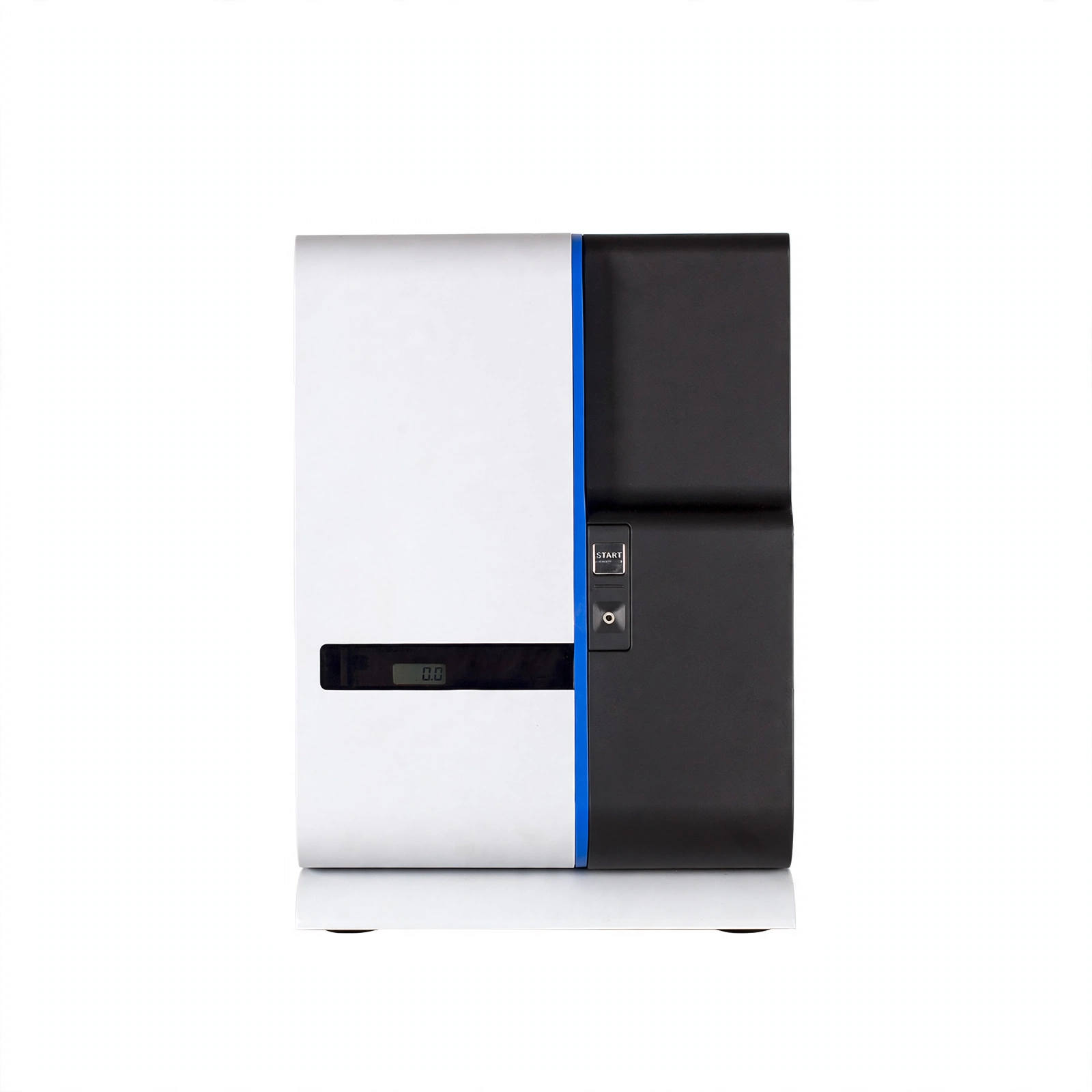

Ion Chromatograph BK-IC120

Model BK-IC120

The ion chromatograph not only can detect anions, cations and other polar substances in different matrix samples, but also separate ions with four orders of magnitude difference. Intelligent maintenance function is added to give users a better experience. It is suitable for third-party testing institutions, enterprises, environmental protection, chemical industry, mining and metallurgy and other fields.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Dual channel design, allows for simultaneous detection of anions and cations.

2. Intelligent alarm system. Leakage alarm, residual eluent alarm, low pressure alarm and high-pressure alarm.

3. Real time monitoring of consumables usage, with clear status at a glance.

4. The compact exterior design can improve the space utilization rate of the laboratory.

Technical Parameters:

Model

BK-IC120
Detected Ions

Anions

Pump

 Type High-pressure and low-pulse two-piston tandem advection pump
Maximum Pressure 42MPa
Flow Rate Range 0.001~9.999mL/min
Pressure Ripple ≤0.5%
Flow Precision ≤0.1%

Column Oven

 Operating Temperature Range RT+5~60℃
Controlling Temperature Accuracy ±0.1℃
Temperature Stability ≤0.1℃/h
Columns Supported 2, 3, 4 and 5mm ID.

Maximum length 250mm analytical column with 50mm guard column.

Conductivity Detector

 Type Auto-range conductivity detector
Cell Volume ≤0.4μL
Detection Range 0~45000μS/cm
Resolution ≤0.0020nS/cm
Operating Temperature Range RT+5℃~60℃
Maximum Pressure 10.0MPa

Suppressor

 Type Self-regeneration electrolytic micromembrane suppressor
Maximum Pressure 6.0MPa
Non-suppressed Chromatography Yes
Void Volume <40μL (4mm)

<15μL (2mm)
Optional Accessories

BK-CIC3200 Fully automatic combustion system, SHA-9D(96 sample positions) or SHA-18i(Single channel, 120 sample positions) autosampler, cation kit
Power Supply

AC100~220V 50/60Hz
External Size(W*D*H)

345*480*495mm
Net Weight

26kg
Packing Size(W*D*H)

570*590*600mm; 660*620*400mm
Gross Weight

38kg; 10kg
