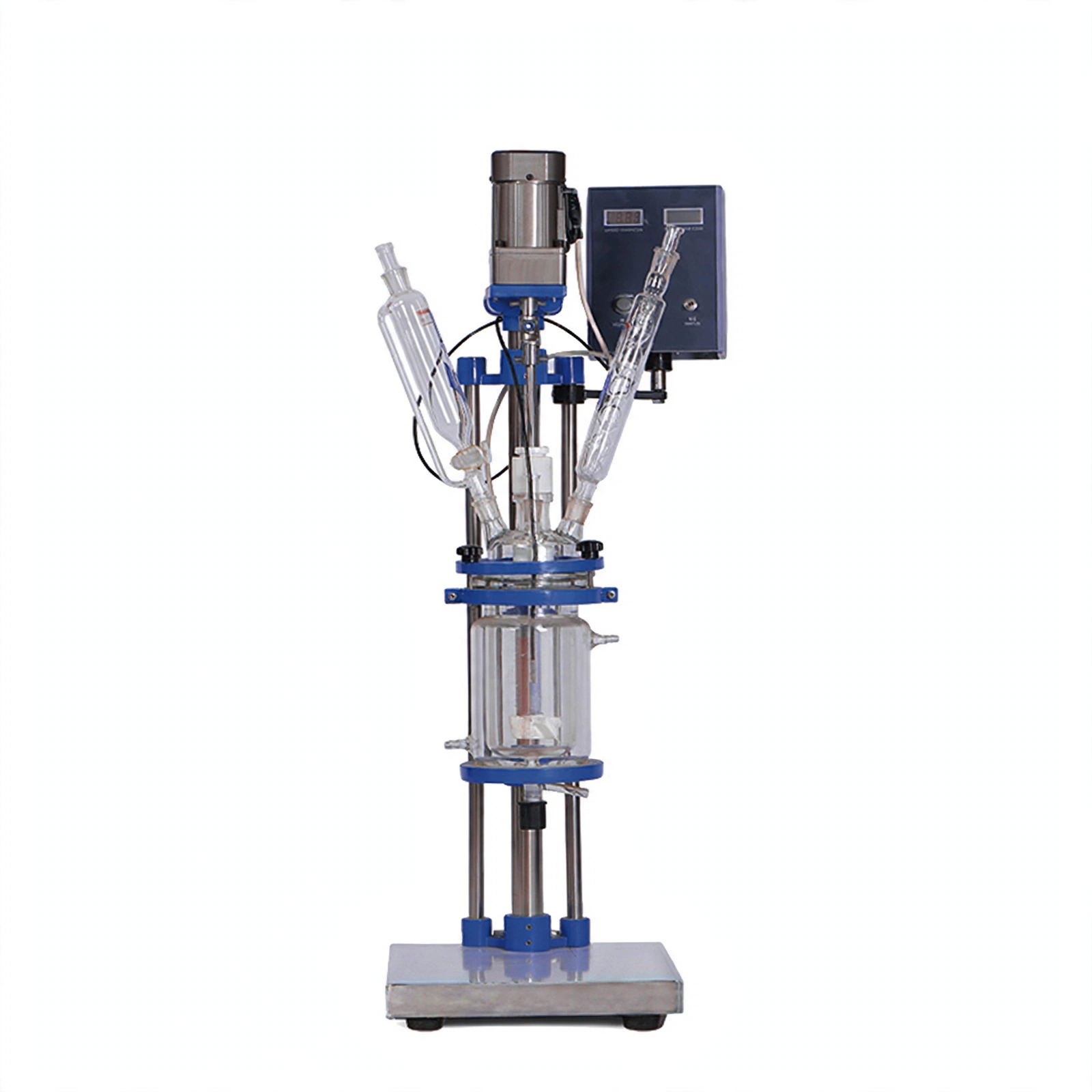

Jacketed Glass Reactor

Jacketed Glass Reactor

Model JGR-1L JGR-2L JGR-3L JGR-5L JGR-10L JGR-20L JGR-30L JGR-50L

Application: Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. GG17 high borosilicate glass, with good chemical and physical properties.

2. The evaporation and back-flow of reaction material can be controlled.

3. The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.

4. The design of large bottle mouth, easier to clean.

5. It can be used as a distillation syntheses device.

6. The sealing performance is 0.098MPa.

7. LED display, easier and more convenient to measure temperature.

Optional Equipment:

1. Circulating water vacuum pump: (JGR-1L~5L, recommend mode SHZ-DIII, JGR-10L~50L, recommend model SHZ-95B).

2. Refrigerated circulator.

3. Circulating water/oil bath.

Technical Parameters:

Model JGR-1L JGR-2L JGR-3L JGR-5L JGR-10L JGR-20L JGR-30L JGR-50L
Reaction Flask Capacity 1L 2L 3L 5L 10L 20L 30L 50L
Stirring Power

60W, fan with 1:3 reduction gearbox

120W, fan with 1:3 reduction gearbox
Stirring Speed

0~450rpm
Stirring Shaft Diameter

17mm
Motor Torque

1.27N.m

2.42N.m
Power Supply

Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz
Package Size (W*D*H) 1260*430*480mm 1270*430*480mm 1310*590*540mm 1310*600*540mm 1230*610*750mm 1340*650*780mm 1690*660*780mm 1690*660*780mm
Gross Weight 40kg 41kg 51kg 56kg 74kg 85kg 101kg 108kg
The details

Specifications

Model
JGR-1L / JGR-2L / JGR-3L / JGR-5L / JGR-10L / JGR-20L / JGR-30L / JGR-50L
Reaction Flask Capacity
1L / 2L / 3L / 5L / 10L / 20L / 30L / 50L
Stirring Power
60W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox / 120W, fan with 1:3 reduction gearbox
Stirring Speed
0~450rpm
Stirring Shaft Diameter
17mm
Motor Torque
1.27N.m / 2.42N.m / 2.42N.m / 2.42N.m / 2.42N.m / 2.42N.m / 2.42N.m / 2.42N.m
Power Supply
Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz
Package Size (W*D*H)
1260*430*480mm / 1270*430*480mm / 1310*590*540mm / 1310*600*540mm / 1230*610*750mm / 1340*650*780mm / 1690*660*780mm / 1690*660*780mm
Gross Weight
40kg / 41kg / 51kg / 56kg / 74kg / 85kg / 101kg / 108kg
