Other Lab Equipment

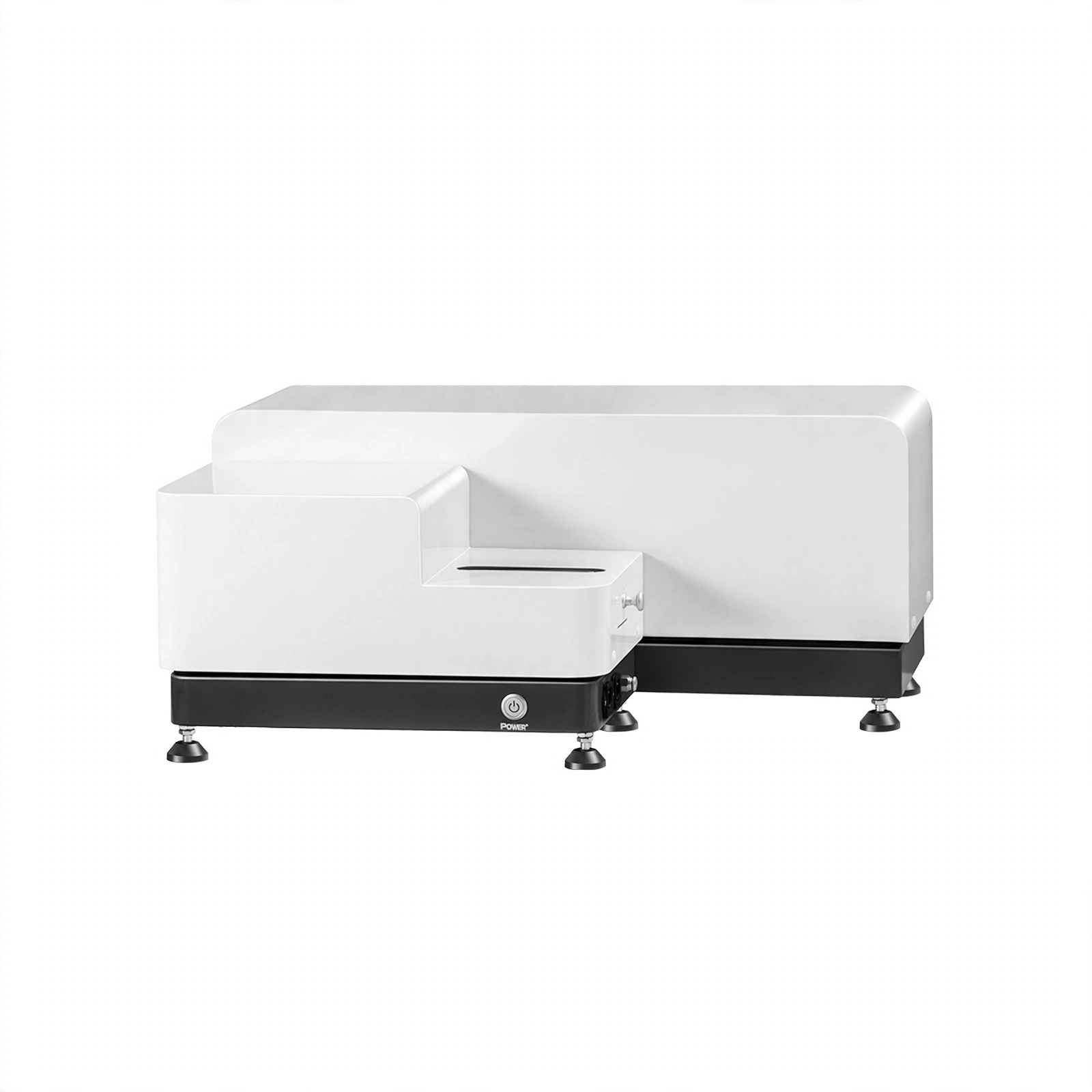

Automatic Laser Particle Size Analyzer

Model BPSA-2020L BPSA-5100H BPSA-5200H BPSA-6100C BPSA-6100D

Application: The particle size analyzer is a relatively general particle size analyzer that measures the size of powder particles according to the principle of light scattering. It has a wide dynamic range, fast measurement speed, and easy operation, making it ideal for measuring powder and liquid droplets with a wide particle size distribution. As a new type of particle size testing instrument, particle size analyzer has been widely used in other powder processing and application fields. Its application is of great significance to improve product quality and reduce energy consumption

Net weight
35kg / 30kg / 38kg /…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Advanced optical design: Converging Fourier transform test technology is used to ensure the maximum range of short focal lengths and effectively improve the resolution of the instrument; the uniqueness of the high-density detection unit makes it have a strong ability to detect small particles. A full range of seamless super power tests.

2. Anti dry ultrasound: ultrasonic anti-dry function can be realized to avoid damage to the ultrasonic in the absence of water for wet method.

3. Dust proof and shockproof design.

4. Sample residue-free design and bubble-free design for wet method.

5. Mis-operation protection: The instrument has a self-protection function for mis-operation, and the instrument does not respond to mis-operation.

6. Dry Wet Switching: one button automatic switching of software. (BPSA-6100D)

Technical Parameters:

Model BPSA-2020L BPSA-5100H BPSA-5200H BPSA-6100C BPSA-6100D
Test Method Dry method Wet method Wet method Wet method Dry and wet method
Test Range 0.1~800μm 0.1~800μm 0.1~1000μm 0.1~2000μm Dry method: 0.1~1500μm; wet method: 0.01~1500μm
Number of Detector Channels 87 76 86 96 Dry method: 96; wet method: 127
Accuracy Error <1% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample)
Repeatability Error <1% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample) <0.5% (D50 value of standard sample)
Dispersion High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air.

Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.

Integrated circulation and stirring design, speed: 100~3950rpm adjustable.

Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W.

 Dry method: High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air.

Wet method: Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.

Integrated circulation and stirring design, speed: 100~3950rpm adjustable.

Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W.
Power Supply Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer)

Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz

 Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer)
Product Size(W*D*H) 700*495*300mm 980*410*450mm 800*280*335mm 800*280*335mm 1040*505*335mm
Net Weight 35kg 30kg 38kg 38kg 50kg
Packing Size(W*D*H) 840*390*500mm

580*380*440mm

430*430*590mm

450*450*720mm

350*350*400mm

940*420*520mm

 1200*500*500mm 1200mm*380mm*520mm

700mm*400mm*530mm

430mm*430mm*590mm

350mm*350mm*400mm

450mm*450mm*795mm
Gross Weight 41kg

21kg

10kg

30kg

12kg

45kg

 55kg 52kg

33kg

10kg

12kg

38kg
The details

Specifications

Model
BPSA-2020L / BPSA-5100H / BPSA-5200H / BPSA-6100C / BPSA-6100D
Test Method
Dry method / Wet method / Wet method / Wet method / Dry and wet method
Test Range
0.1~800μm / 0.1~800μm / 0.1~1000μm / 0.1~2000μm / Dry method: 0.1~1500μm; wet method: 0.01~1500μm
Number of Detector Channels
87 / 76 / 86 / 96 / Dry method: 96; wet method: 127
Accuracy Error
<1% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample)
Repeatability Error
<1% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample) / <0.5% (D50 value of standard sample)
Dispersion
High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air. / Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.Integrated circulation and stirring design, speed: 100~3950rpm adjustable.Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. / Dry method: High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air.Wet method: Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.Integrated circulation and stirring design, speed: 100~3950rpm adjustable.Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. / Dry method: High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air.Wet method: Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.Integrated circulation and stirring design, speed: 100~3950rpm adjustable.Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W. / Dry method: High-pressure air dispersion; mechanical stepless speed-regulating vibration feeding; oil-free silent air compressor with dust filtration function, continuously adjustable from 0.1-0.8MPa; can filter moisture from the air.Wet method: Ultrasonic frequency: f=40KHz, power: p=80W, time: adjustable; equipped with ultrasonic anti-dry-burning feature.Integrated circulation and stirring design, speed: 100~3950rpm adjustable.Rated circulation flow rate: 0~10L/min adjustable; Rated power: 25W.
Power Supply
Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer) / Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz / Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer) / Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer) / Standard: AC220V, 50/60Hz; optional: AC110V, 50/60Hz(External transformer)
Product Size(W*D*H)
700*495*300mm / 980*410*450mm / 800*280*335mm / 800*280*335mm / 1040*505*335mm
Net Weight
35kg / 30kg / 38kg / 38kg / 50kg
Packing Size(W*D*H)
840*390*500mm580*380*440mm430*430*590mm450*450*720mm350*350*400mm / 940*420*520mm / 1200*500*500mm / 1200mm*380mm*520mm700mm*400mm*530mm430mm*430mm*590mm350mm*350mm*400mm450mm*450mm*795mm / 1200mm*380mm*520mm700mm*400mm*530mm430mm*430mm*590mm350mm*350mm*400mm450mm*450mm*795mm
Gross Weight
41kg21kg10kg30kg12kg / 45kg / 55kg / 52kg33kg10kg12kg38kg / 52kg33kg10kg12kg38kg
