New Products

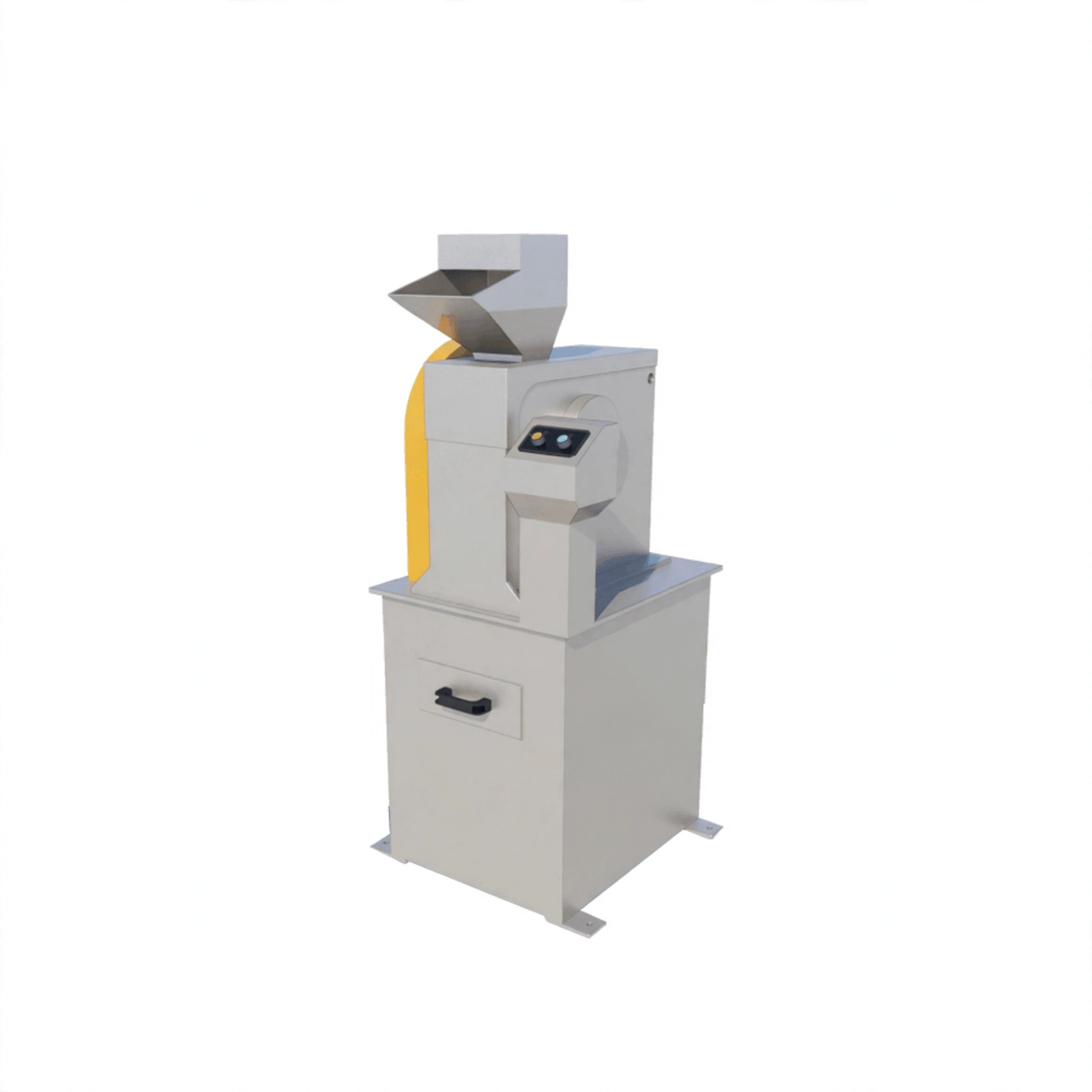

Jaw Crusher

Model BK-JC100×100

Product design is mechatronics and environmentally friendly. It has the characteristics of simple structure, stable performance, uniform and accurate crushing particle size, flexible adjustment of discharge particle size, and low noise.

Dimensions
830*640*1420
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

The jaw plate of the jaw crusher is made of chromium steel with good wear resistance, which is suitable for various medium hardness ores such as coarse crushing and medium crushing in the laboratory.

Features:

1. For coarse primary crushing and mid-range primary crushing.

2. No dust pollution, low working noise.

3. High crushing efficiency, uniform output size, stable operation.

4. The particle size is adjusted by the handle.

5. No need for foundation fixation.

6. Equipped with an electric automatic lubrication system.

Technical Parameter:

Model BK-JC100×100
Jaw Plate Material Manganese steel
Input Size(mm) ≤80
Output Size(mm) 6~250mm adjustable
Throughput(kg/h) 60~850kg/h
Vertical Shaft Speed(r/min) 466
Power Supply 380V, 50Hz
Power(kw) 2.2
Overall Size(mm) 830*640*1420
Weight(kg) 260
The details

Specifications

Model
BK-JC100×100
Jaw Plate Material
Manganese steel
Input Size(mm)
≤80
Output Size(mm)
6~250mm adjustable
Throughput(kg/h)
60~850kg/h
Vertical Shaft Speed(r/min)
466
Power Supply
380V, 50Hz
Power(kw)
2.2
Overall Size(mm)
830*640*1420
Weight(kg)
260
