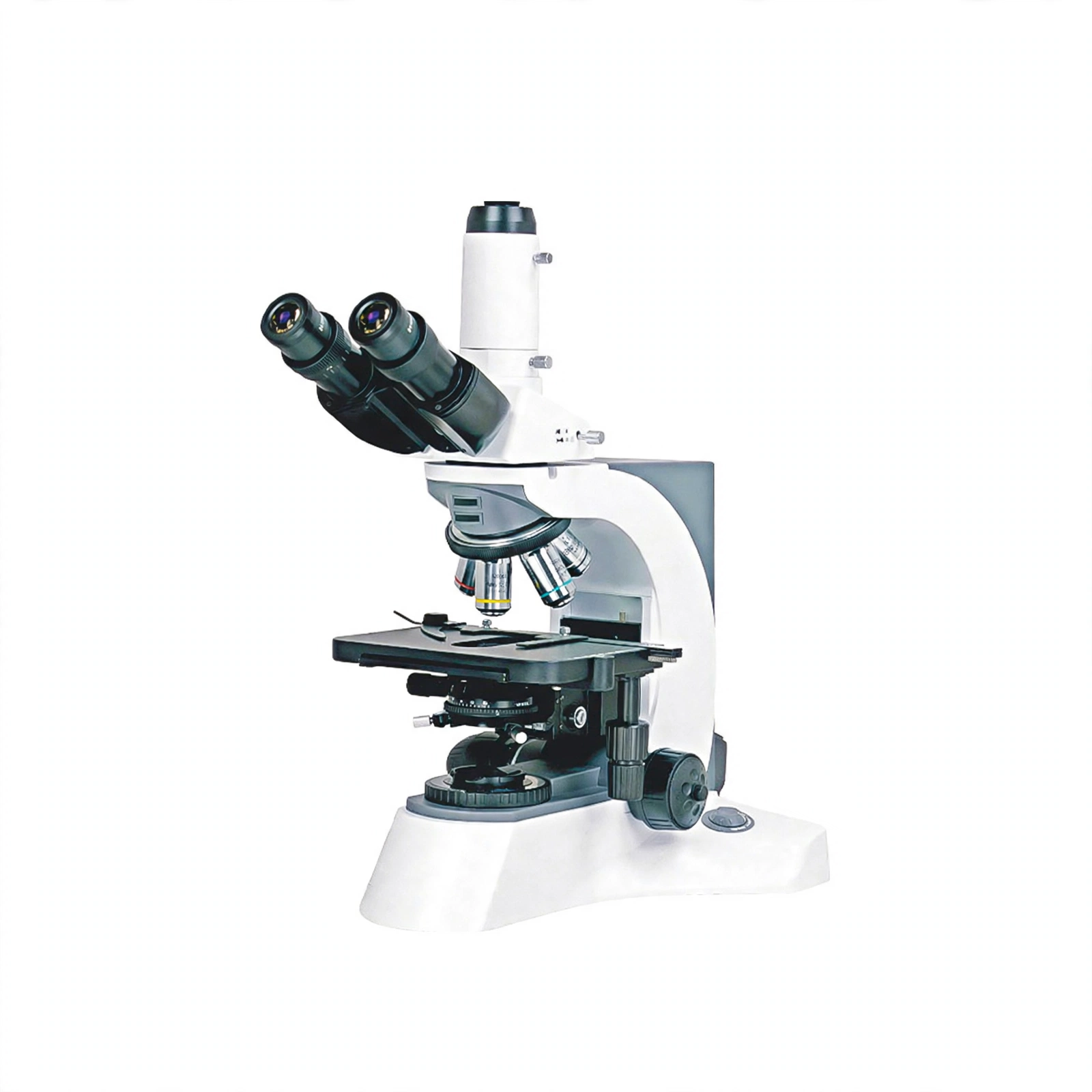

Laboratory Biological Microscope DM-800M
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters
| Model |
DM-800M |
|
| Optical System | Infinite optical system | ● |
|
Viewing Head |
Seidentopf type trinocular head, inclined at 30℃,interpupillary 48-75mm | ● |
| Tiltable binocular/trinocular head | ○ | |
| Eyepiece | Extra wide field eyepiece EW10×/22, eyepiece tube diameter 30mm | ● |
| Nosepiece | Backward quintuple nosepiece | ● |
|
Objective |
Infinite plan achromatic objective 4×, 10×, 40×, 100× | ● |
| Infinite plan achromatic objective 20× | ○ | |
| Condenser | Swing condenser NA 0.9.0.25 | ● |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.001mm | ● |
| Stage | Double layers mechanical stage 185*142mm, moving range 75*55mm | ● |
|
Kohler illumination |
External illumination, aspherical collector, halogen lamp 6V/30W | ● |
| External illumination, aspherical collector, halogen lamp 24V/100W | ○ | |
| Optional Accessories | Photo attachment, C mount 1×, C mount 0.5×, polarization attachment, turret phase contrast kit, dark field condenser(dry), dark field condenser(oil), epi-fluorescent attachment, temperature controlling stage | ○ |
| Power Supply |
220V/110V 50/60Hz |
|
| Packing Size |
430*384*606mm |
|
| Gross Weight |
14kg |
|
Remark: ● is standard; ○ is optional
