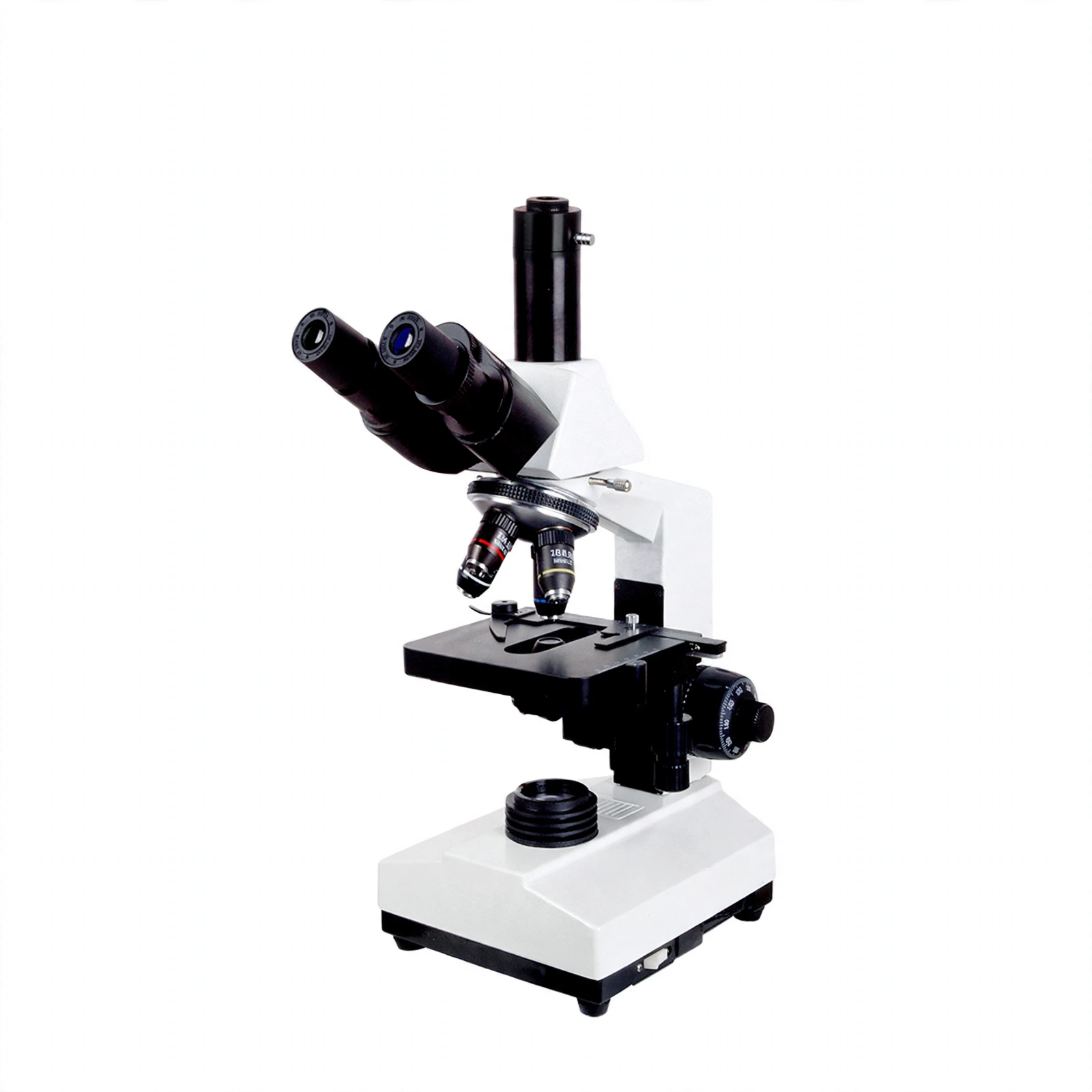

The laboratory biological microscope is a kind of precision optical instrument, mainly used for observing biological sections, biological cells, bacteria, living tissue culture, fluid precipitation, etc. It can also observe other transparent or translucent objects as well as objects such as powders and fine particles.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Specification |
Model |
||||
| XSB-301P | XSB-301B | XSB-102B | XSB-301A | ||
|
Observation Head |
Hinge-type 30° tilt binocular observation head | ||||
| Hinge-type 30° tilt trinocular observation head | √ | √ | |||
| 45° tilt sliding binocular observation head | √ | ||||
| 45° tilt sliding trinocular viewing head | √ | ||||
| Nosepiece | Multi-roller four-aperture objective lens converter | √ | √ | √ | √ |
| Eyepiece | Wide-angle eyepiece: WF10X18 mm | √ | √ | √ | √ |
|
Objective Lens |
Plan achromat 4X, 10X, 40X(spring), 100X(spring, oil) | √ | |||
| Achromatic 4X, 10X, 40X(spring), 100X(spring, oil) | √ | √ | √ | ||
| Stage | Double-layer mechanical platform 135*140mm | √ | √ | √ | √ |
| Condenser | Abbe NA1.25 condenser with aperture
Variable aperture and filter, rack and pinion adjustment |
√ | √ | √ | √ |
| Illumination | Built-in lighting | √ | √ | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
| Optional Accessories | Darkfield condenser, phase contrast kit | √ | √ | √ | √ |
| Package | Cardboard box with foam | √ | √ | √ | √ |
| Packing Size | 270*320*430mm | √ | √ | √ | √ |
| Gross Weight | 7kg | √ | √ | √ | √ |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
