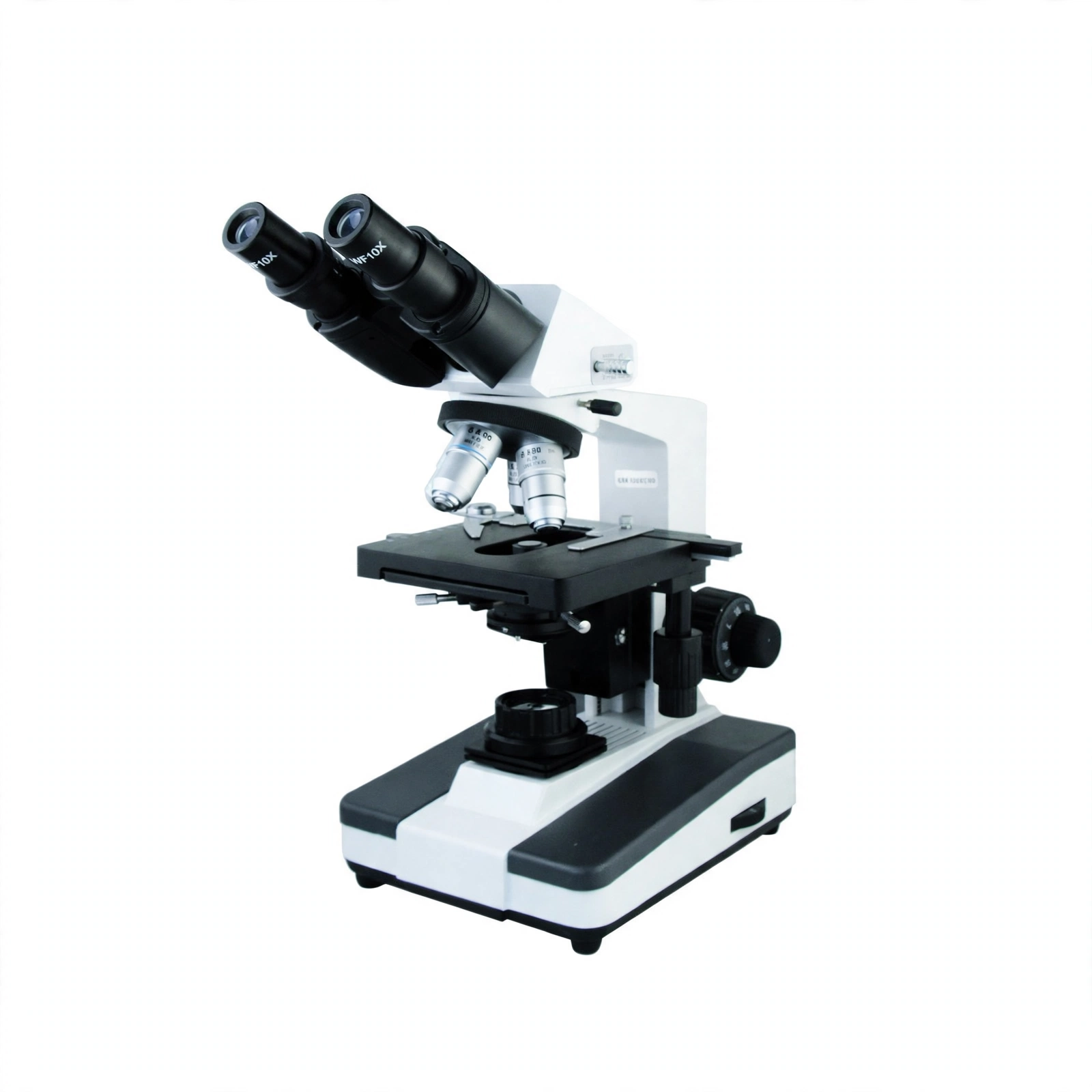

The Biological Microscope is a versatile and high-precision instrument designed for observing biological specimens in educational, research, clinical, and laboratory settings.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BM-8C | BM-8CA |
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece |
WF10X/18mm, WF16X/11mm |
|
|
Achromatic Objective |
4X N.A=0.10 WD=37.50mm |
|
|
10X N.A=0.25 WD=7.31mm |
||
|
40X N.A=0.65 WD=0.63mm |
||
|
100X(Oil) N.A=1.25 WD=0.18mm |
||
| Focusing |
Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
|
| Stage | Double Layers Mechanical Stage 140*140mm, Moving Range 75*40mm | Mechanical Stage 140*140mm, Moving Range 75*50mm, Vernier 0.1mm |
| Condenser |
Abbe NA1.25 condenser with Iris Diaphragm & Filter |
|
| Illumination | LED dual-color light source, adjustable brightness | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter |
Blue, yellow, green |
|
| Power Supply |
AC85~240V, 50/60Hz |
|
| Package Size(W*D*H) |
355*265*495mm |
|
| Gross Weight | 6kg | 7.5kg |
