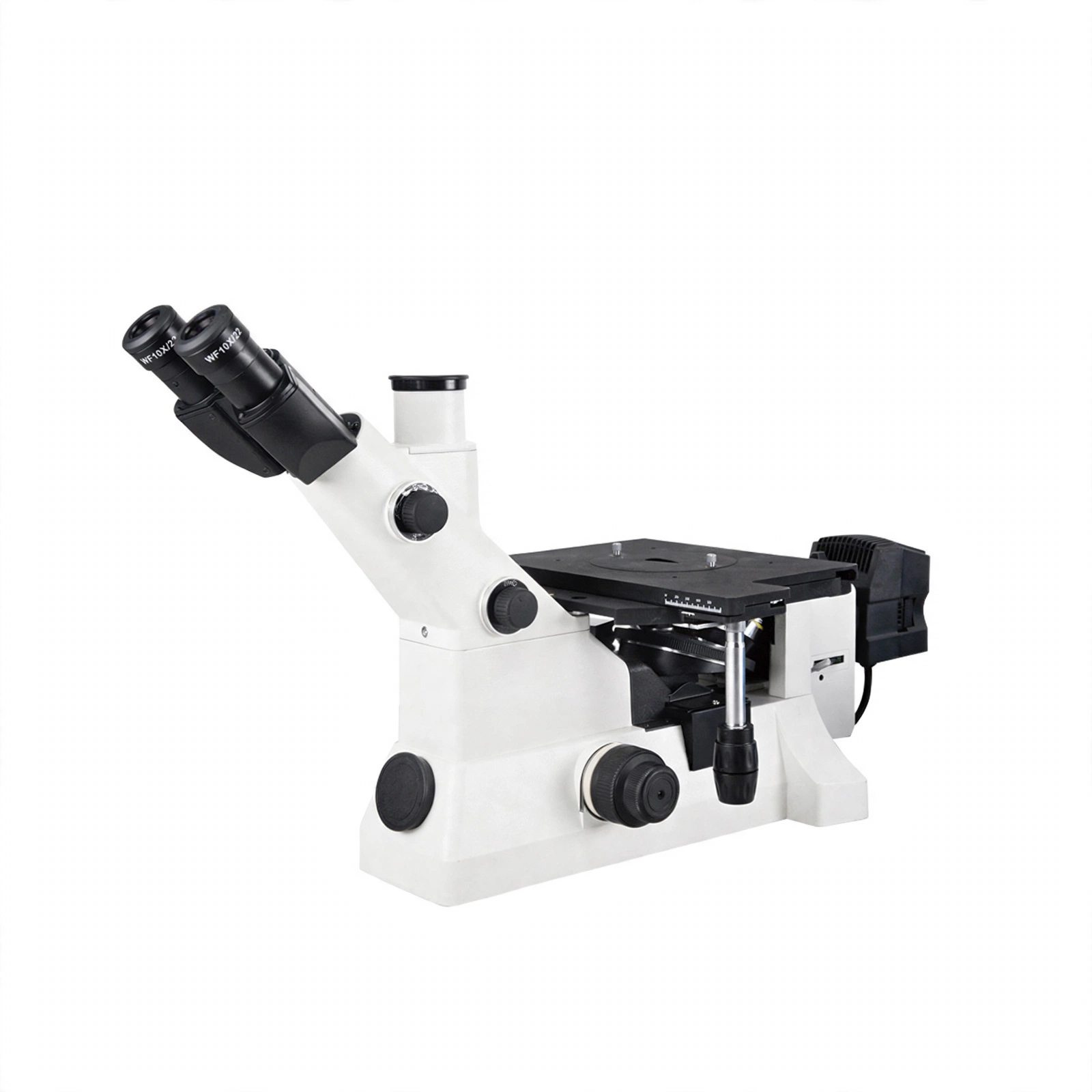

Metallographic microscope is a high-tech product which combines optical microscope technology, photoelectric conversion technology and computer image processing technology perfectly. It can not only carry out microscopic observation on the eyepiece, but also observe real-time dynamic images on the display screen of a computer (or digital camera), analyze and grade metallographic images, and output and print pictures.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
MM-5000 | |
| Optical System | Infinite optical system | √ |
|
Extra Wide Field Eyepiece |
WF10×/22 | √ |
| WF10×/20 eyepiece with scale of cross hair | √ | |
| WF15×/16 | ● | |
| WF20×/12 | ● | |
|
Infinite LWD Plan Achromatic Objective |
5×/0.12/∞/0(BF/DF) LWD 10mm | √ |
| 10×/0.25/∞/0(BF/DF) LWD 10mm | √ | |
| 20×/0.4/∞/0(BF/DF) LWD 5mm | √ | |
| 50×/0.75/∞/0(BF/DF) LWD 1.3mm | √ | |
| 100×/0.9/∞/0(BF/DF) LWD 0.7mm | √ | |
| Viewing Head | Siedentopf binocular viewing head, Inclined at 30°, Interpupillary 48~75mm | √ |
|
Kohler Incident Light |
12V/50W halogen light, center and brightness adjustable | √ |
| Polarizer and analyzer | √ | |
| DIC | ● | |
| Built-in green, blue, yellow, gray and ground glass | √ | |
| Focusing | Coaxial coarse and fine adjustment, fine division 2μm | √ |
| Nosepiece | Backward quintuple nosepiece | √ |
|
Stage |
Double layer mechanical stage 226*178mm, Moving range 40*40mm | √ |
| Stage Φ20, Φ30, teardrop | √ | |
|
Accessories |
Photo/Video attachment | ● |
| Micrometer scale 0.01mm | √ | |
| Power Supply | AC100~240V, 50/60Hz | √ |
| Package Size(W*D*H) | 715*335*520mm | √ |
| Gross Weight | 17kg | √ |
Note: √ Standard Outfit, ● Optional Outfit
