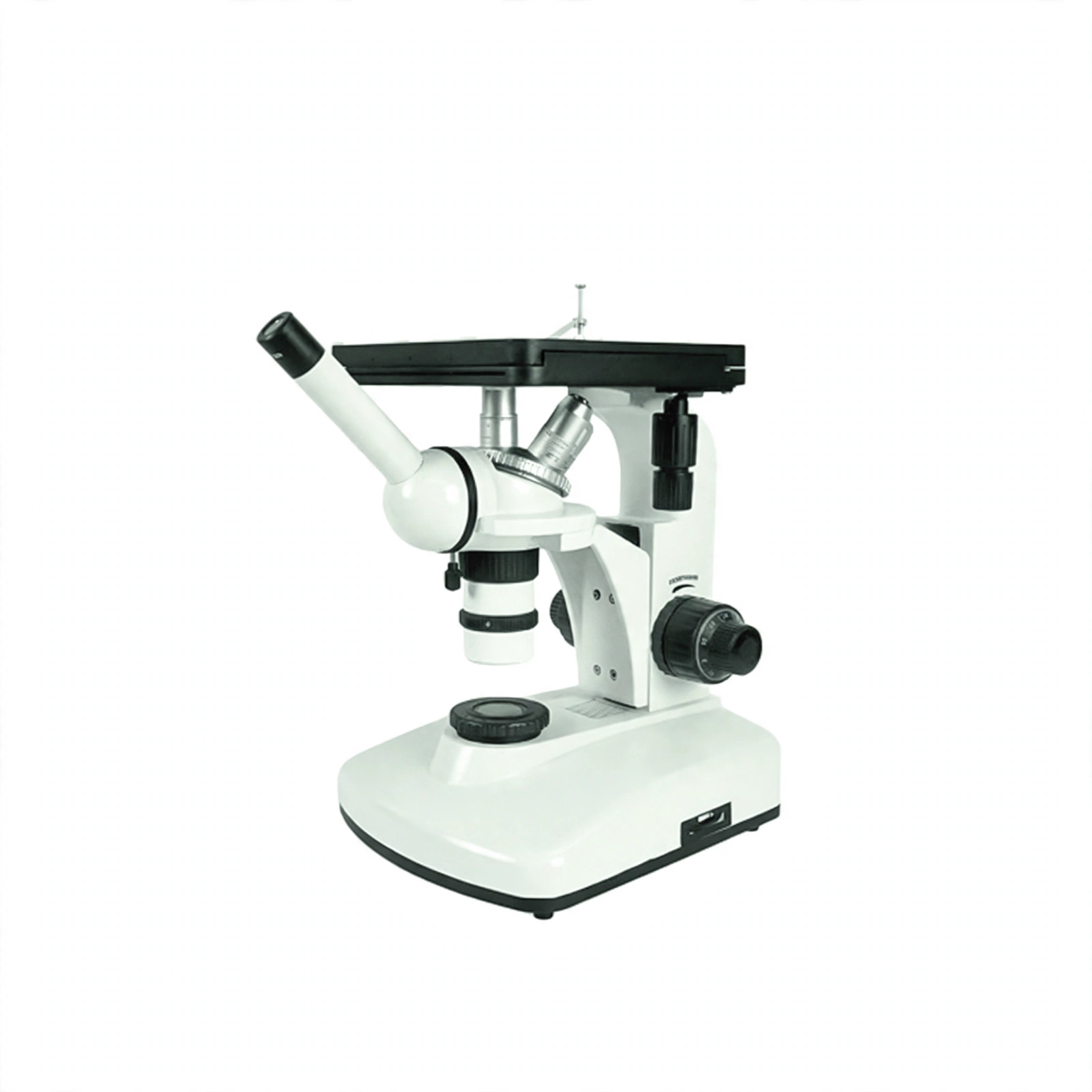

Metallographic microscope is a high-tech product which combines optical microscope technology, photoelectric conversion technology and computer image processing technology perfectly. It can easily observe metallographic images on a computer, analyze and grade metallographic maps, edit, save and print the pictures.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Specification |
Model |
||||
| XJD-100 | XJD-200 | XDS-1 | 4XC | ||
|
Observation Head |
Monocular observation head tilted 45° | √ | |||
| Articulated binocular observation head tilted 45° | √ | ||||
| Translational sliding trinocular observation head 45° tilt | √ | ||||
| Articulated trinocular viewing head tilted 30 ° | √ | ||||
| Nosepiece | Four-aperture nosepiece | √ | √ | √ | √ |
|
Eyepiece |
WF10X | √ | √ | ||
| WF10X18mm | √ | √ | |||
|
Objective Lens |
Achromatic objective lens: 10X, 100X
LWD plan achromatic objective: 40X |
√ | √ | ||
| Achromatic objective lens 4X, 10X, 40X, 100X | √ | ||||
| LWD plan achromatic
objectives 10X, 20X, 40X, Achromatic objective lens 100X |
√ | ||||
|
Stage |
Double-layer mechanical platform 180*150mm moving range 15*15mm | √ | |||
| Double-layer mechanical platform 140*135mm moving range 70*50mm | √ | ||||
| Double-layer mechanical stage 175*135mm | √ | √ | |||
| Focusing | Coaxial coarse and fine focusing, using rack and pinion mechanism, fine focusing value 0.002mm | √ | √ | √ | √ |
|
Illumination |
Built-in lighting, halogen lamp 6V/20W | √ | √ | √ | |
| LED lighting | √ | ||||
| Filter | Blue, green, yellow | √ | √ | √ | √ |
| Polarized Light | √ | ||||
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
|
Packing Size |
420*350*520mm |
330*280*440mm; 370*260*470mm | 400*300*450mm | ||
|
Gross Weight |
10kg |
6.5kg; 5kg | 11kg | ||
Ask our team for the full specification sheet for this model.
