Microwave Digester

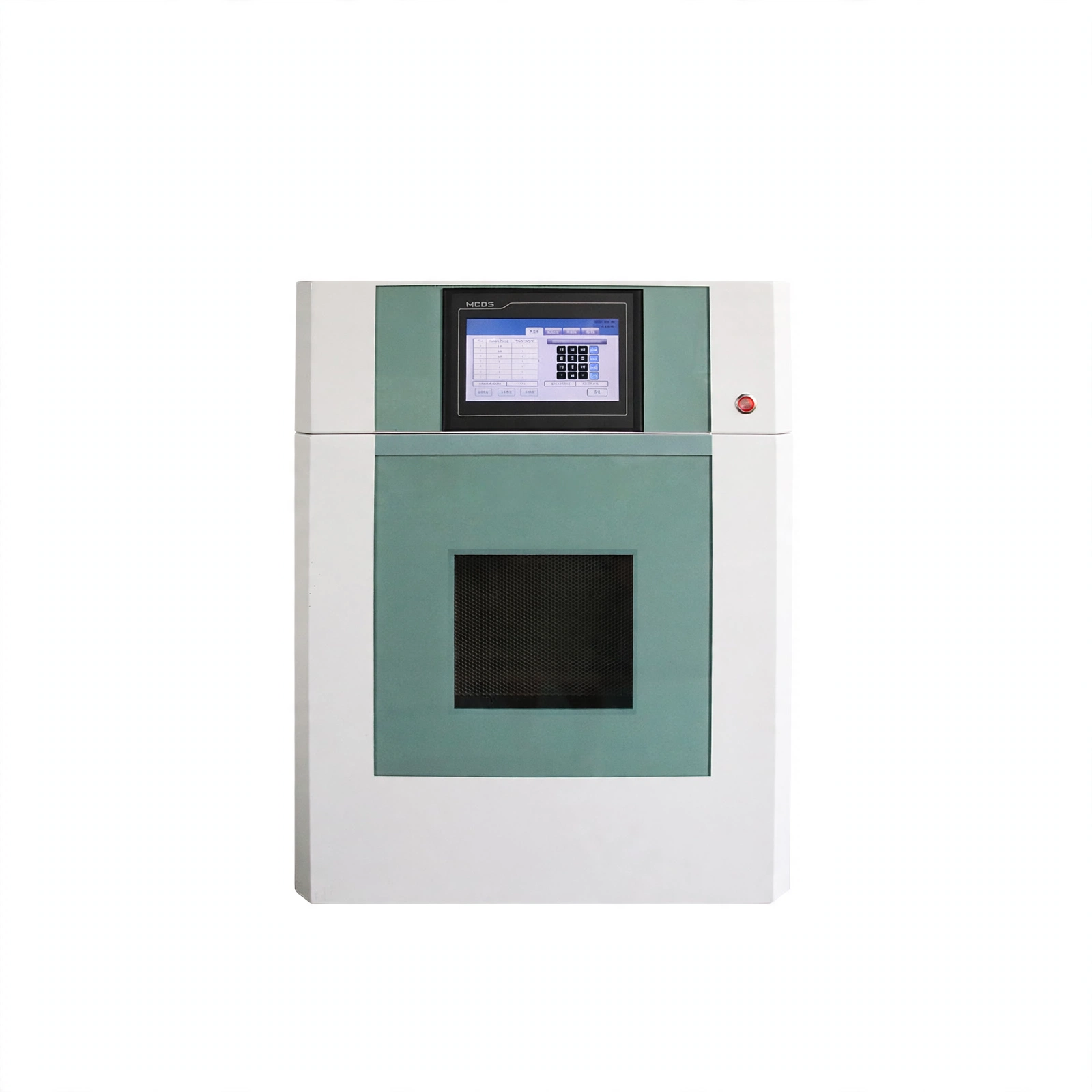

Microwave Digester BMD-10H BMD-12H BMD-Z40

Model BMD-10H BMD-12H BMD-Z40 Petrol

microwave digestion system provides a fast, safe and automatic solution for samples, accelerates the speed of sample digestion reaction under high pressure conditions. It is widely used in food, textile, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry, environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.

Power
2600W / 2800W / 2800W
Dimensions
590*620*830mm / 720*7…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Microwave non-pulse continuous automatic frequency conversion control, 0~100% automatic output.

2. Vertical bidirectional wave guide design, 3D output technology, and matching harmonic power frequency achieve a high degree of field uniformity.

3. SUS316 stainless steel chamber.

4. Self-locking buffer explosion-proof furnace door, when the reaction is abnormal, buffer structure to ensure the operator’s personal safety and integrity of the door structure.

5. 8″TFT-LED touch screen display the temperature and pressure curve in real time.

6. 360° continuous rotation in the same direction, microwave uniformity, to ensure that the microwave environment of each sample is the same, improve the consistency of experimental results.

7. Non-contact infrared temperature control system and non-contact pressure control system.

8. Exhaust and cooling system: acid-resistant centrifugal fan, exhaust air volume is not less than 5m3/min; With air cooling function, continuous cooling for the reaction vessel, temperature and pressure real-time display.

9. With fault self-test system, when the temperature or pressure control system fails, the instrument will automatically cut off the microwave emission, and alarm.

10. The material is TFM for the inner vessel and PEEK aerospace composite material for the vessel explosion-proof outer casing.

Technical Parameters:

Model BMD-10H BMD-12H BMD-Z40
Chamber 52L, SS316 58L, SS316 72L, SS316
Microwave Source

Professional microwave source, industrial microwave power supply
Microwave Frequency

2450MHz
Microwave Output Power 0~2000W

1400~2800W
Display

8″TFT-LED touch screen
DesignTemp.

300℃
Temp. Accuracy

±0.5℃
Max. Pressure

10MPa

 15MPa
Pressure Accuracy

±0.01Mpa
Temperature Sensor

Non-contact infrared temperature sensor
Vessel Quantity Capacity 10 vessels 12 vessels 40 vessels
Vessel Volume

70ml(Standard), 100ml(Optional)
Vessel Material

Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material
Cooling Method

Forced air cooling
Standard Turntable bracket, PEEK explosion-proof outer*10, TFM inner vessel*10, infrared temperature sensor,

graphite acid evaporator

 Turntable bracket, PEEK explosion-proof outer*12, TFM inner vessel*12, infrared temperature sensor, graphite acid evaporator Turntable bracket, PEEK explosion-proof outer*40, TFM inner vessel*40, infrared temperature sensor*2,

graphite acid evaporator*2, transfer inner vessel bracket*2, spanner
Consumption

2600W

 2800W
Power Supply

AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional)
External Size(W*D*H)

590*620*830mm

 720*720*800mm
Package Size(W*D*H)

Main Body: 590*620*830mm

Accessory: 820*300*130mm

 Main Body: 800*800*950mm

Accessory: 200*250*250mm; 200*250*250mm
Gross Weight Main Body: 75kg

Accessory: 25kg

 Main Body: 75kg

Accessory: 27kg

 Main Body: 100kg

Accessory: 20kg; 20kg

Note: Max recommended temperature for routine tests: 240 °C

The details

Specifications

Model
BMD-10H / BMD-12H / BMD-Z40
Chamber
52L, SS316 / 58L, SS316 / 72L, SS316
Microwave Source
Professional microwave source, industrial microwave power supply
Microwave Frequency
2450MHz
Microwave Output Power
0~2000W / 1400~2800W / 1400~2800W
Display
8"TFT-LED touch screen
DesignTemp.
300℃
Temp. Accuracy
±0.5℃
Max. Pressure
10MPa / 15MPa / 15MPa
Pressure Accuracy
±0.01Mpa
Temperature Sensor
Non-contact infrared temperature sensor
Vessel Quantity Capacity
10 vessels / 12 vessels / 40 vessels
Vessel Volume
70ml(Standard), 100ml(Optional)
Vessel Material
Vessel made of TFM, explosion-proof outer vessel made of PEEK aerospace composite material
Cooling Method
Forced air cooling
Standard
Turntable bracket, PEEK explosion-proof outer*10, TFM inner vessel*10, infrared temperature sensor,graphite acid evaporator / Turntable bracket, PEEK explosion-proof outer*12, TFM inner vessel*12, infrared temperature sensor, graphite acid evaporator / Turntable bracket, PEEK explosion-proof outer*40, TFM inner vessel*40, infrared temperature sensor*2,graphite acid evaporator*2, transfer inner vessel bracket*2, spanner
Consumption
2600W / 2800W / 2800W
Power Supply
AC220±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional)
External Size(W*D*H)
590*620*830mm / 720*720*800mm / 720*720*800mm
Package Size(W*D*H)
Main Body: 590*620*830mmAccessory: 820*300*130mm / Main Body: 800*800*950mmAccessory: 200*250*250mm; 200*250*250mm / Main Body: 800*800*950mmAccessory: 200*250*250mm; 200*250*250mm
Gross Weight
Main Body: 75kgAccessory: 25kg / Main Body: 75kgAccessory: 27kg / Main Body: 100kgAccessory: 20kg; 20kg
