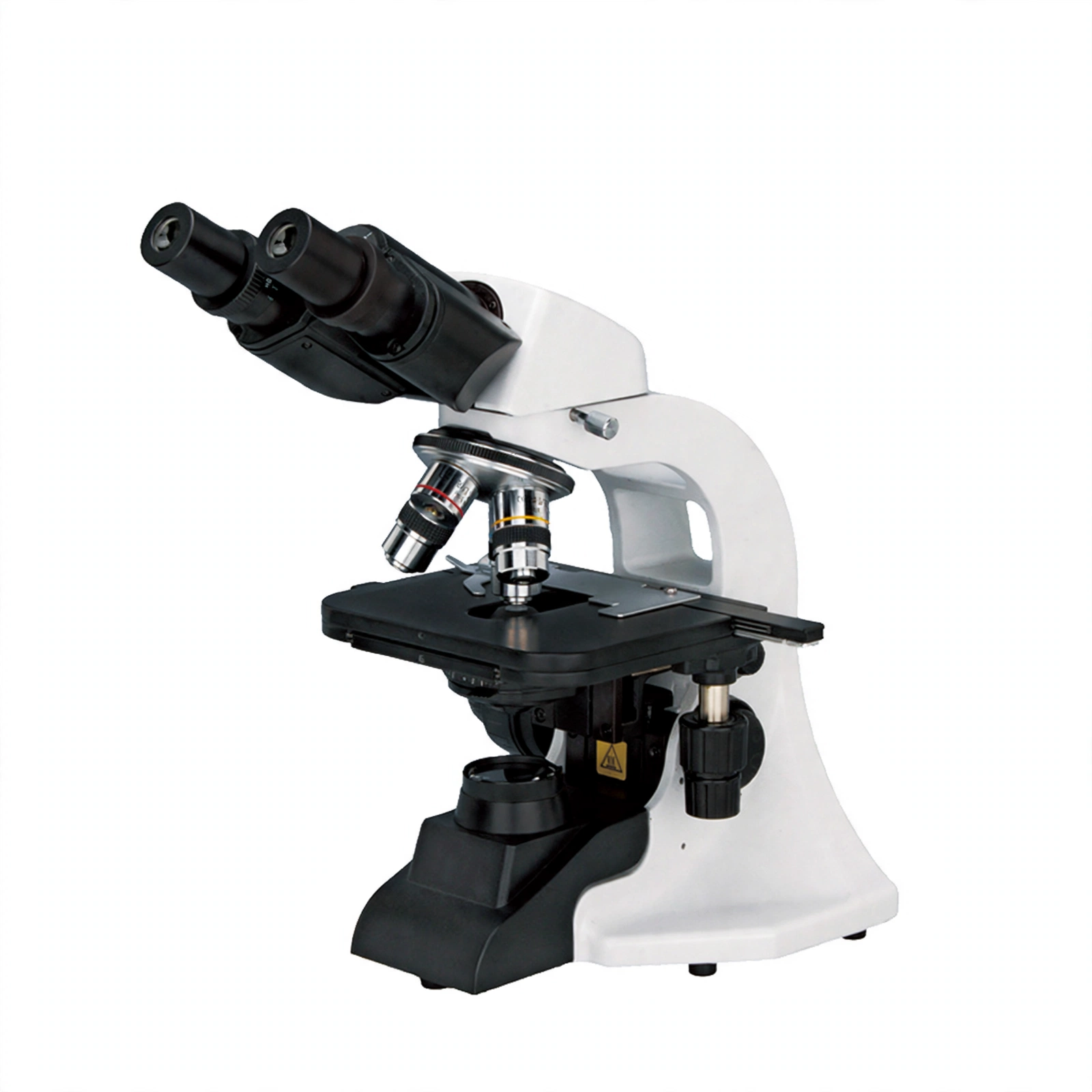

The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | BMM-1000 | BMM-2000 | |
| Optical System | Infinite optical system | / | √ |
|
Viewing Head |
Siedentopf binocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
√ | √ |
| Siedentopf trinocular viewing head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
● | ● | |
|
Eyepiece |
WF10X/18 | √ | |
| P16X/11 | ● | ||
| WF10X/20 | √ | ||
| WF15×/16 | ● | ||
|
Objective |
Achromatic objective 4X, 10X, 40X, 100X | √ | |
| Semi-plan achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X | ● | ||
| Infinite plan achromatic objective 4X, 10X, 40X, 100X | √ | ||
|
Nosepiece |
Quadruple nosepiece | √ | |
| Backward quadruple nosepiece | √ | ||
| Backward quintuple nosepiece | ● | ||
| Focusing | Coaxial coarse&fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm |
√ | √ |
|
Stage |
Double layers mechanical stage: 132*142mm, moving range: 75*40mm | √ | |
| Rectangular 230*150mm stage, moving range: 78*54mm, using low-positioned X/Y coaxial control knob |
√ | ||
| Condenser | Abbe condenser NA1.25 with aperture diaphragm | √ | √ |
|
Illumination |
S-LED IIlumination, brightness adjustable | √ | √ |
| 12V/20W Halogen lamp, brightness adjustable | ● | ● | |
| Kohler illumination | ● | ||
| Power Supply | 110~220V, 50/60Hz | √ | √ |
|
Accessories |
Photo attachment, video attachment | ● | ● |
| Dark field condenser | |||
| Polarization set, phase contrast kit | ● | ||
| Package Size | 323*264*440mm(BMM-1000), 380*260*510mm(BMM-2000) | √ | √ |
| Gross Weight | 6.5kg(BMM-1000), 10kg(BMM-2000) | √ | √ |
Note: √ Standard Outfit, ● Optional, Without this feature
