Features:
* Determination of elements: fluorine (F) – uranium (U) elements in the periodic table.
* Content range: ppm-100%.
* Sample morphology: Samples that can be directly detected, including solids, liquids, and powders.
* Detector: The detector of electric refrigeration FASTSDD with 1μm ultra-thin carbon window. In this device, the signal acquisition intensity of light elements is equipped. In addition, the carbon fiber protective net is specially designed and installed on the detector to prevent the irreversible damage to the detector caused by the vacuum bursting of the sample.
* Ray tube: Imported high-power end window ray tubes are equipped to ensure the testing effect of light elements.

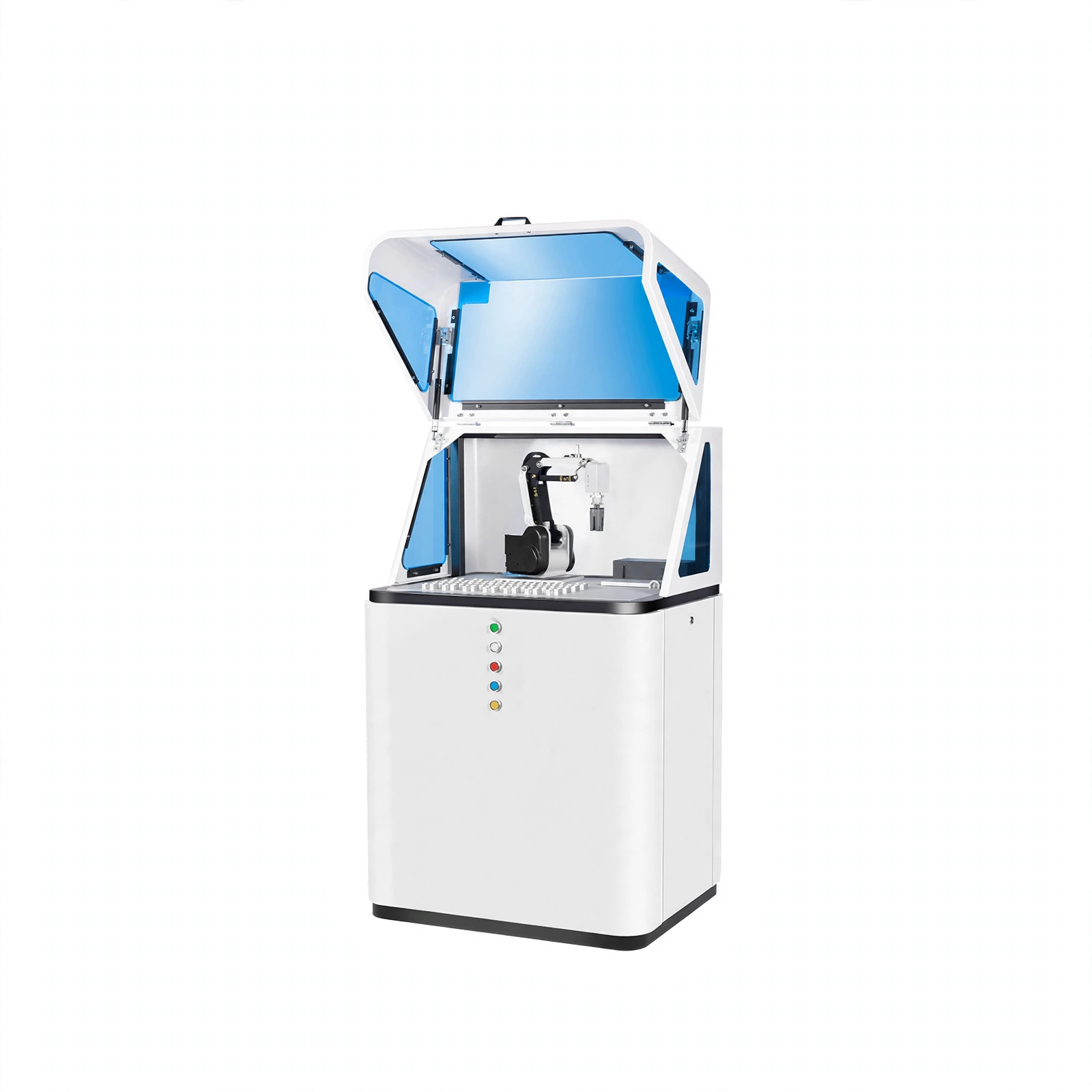

* Operation characteristics: Various types of intelligent robots are used for the automatic sample injection. 28+1 samples can be placed simultaneously in the fully automatic switch sample cover for the sequential testing; In addition, the emergency samples can be urgently inserted. With the’ simple and efficient’ product design, this product can free the hands of the customers.
* The sample is a spinning style, with a larger detection area. In addition, the tested samples are more representative and with better stability.
* Temperature control: The adaptive constant temperature control system.
* Safety performance: labyrinth design; As far as X-ray generation is concerned, the lead shielding and interlocking design are adopted.
* The analysis speed of this product is fast, providing the timely data for production and analysis. The analysis results of each sample can be obtained within a few minutes, greatly improving the work efficiency.
* The customized Chinese operating software enables the product to have complete functionality. Meanwhile, the operation of the device is simple and easy to learn, making it suitable for use in the laboratory.
* The operating platform is further away from the core component area, which is more conducive to protecting the core components from pollution and damage.
* The magnetic fluid is sealed with better vacuum. This design is more conducive to the detection of light elements.
* Circuit control system: Siemens brand PLC control module is adopted. Compared with the traditional electronic circuit boards, this type of device has higher control accuracy and lower failure rate. Based on this, the functional upgrade of this product is more convenient. The product price is transparent, thus eliminating the uneven quality and opaque repair prices caused by the self-designed circuit boards.
* In the vacuum system, the Pirani type vacuum gauge is adopted, with more accurate vacuum detection.
* The private design is more conducive to ensuring the stable operation of various institutions.
* The calibration instrument for the permanent standard samples is equipped to ensure the stability of the instrument.
* Multiple sets of standard samples, including the imported standard production working curves, are adopted to ensure the accuracy of the instrument.
Technical Parameters:
