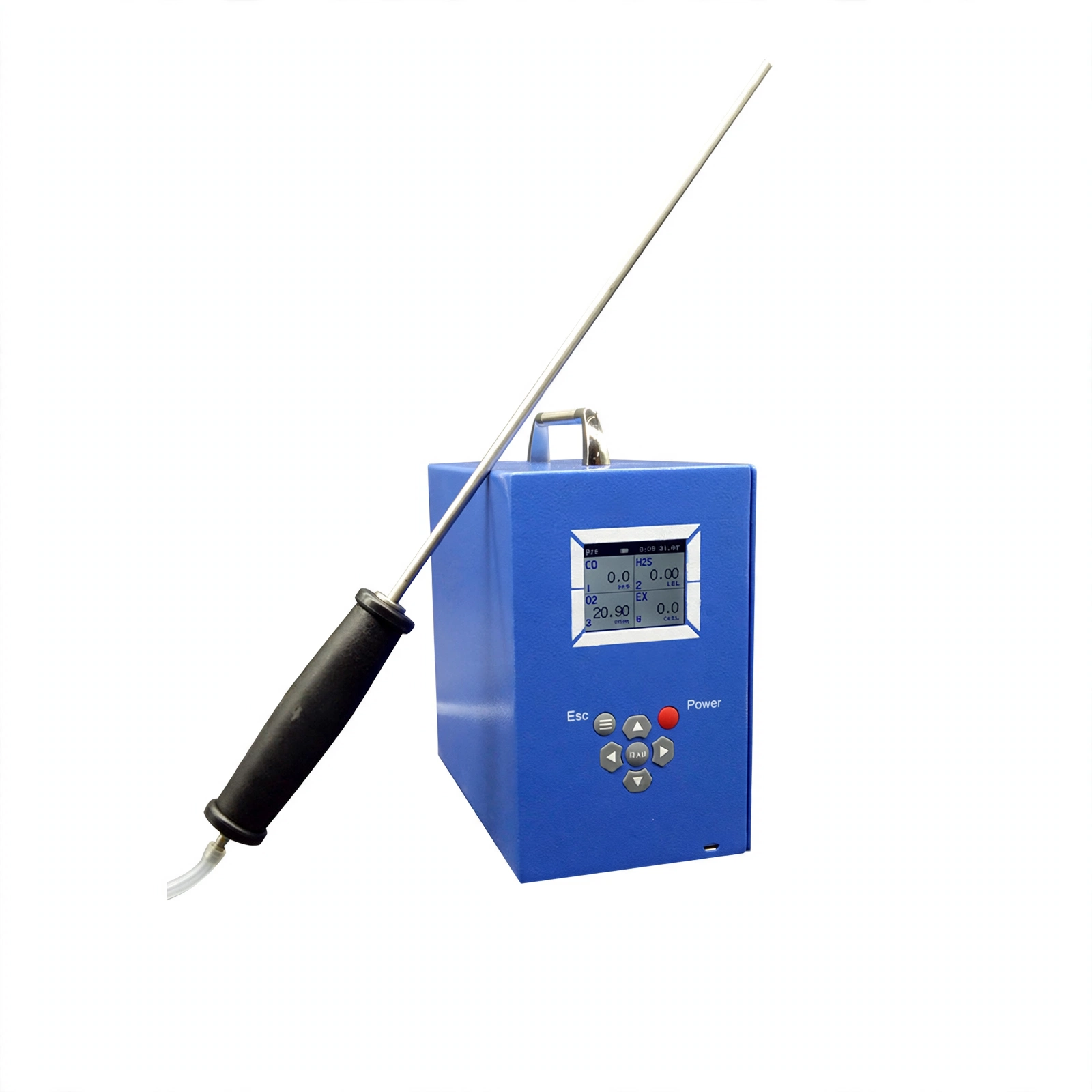

Multiple Gas Analyzer

Model BK-MGA4 Electric

Application： 1. Oil production, smelting, chemical, municipal, sewage management, electricity, gas, mining. 2. Tunnel construction, fire protection, storage, paper making, brewing, furniture, paint. 3. Interior(exterior) decoration, medical, food, chemical fertilizers, resins, pesticides, raw materials. 4. Waste treatment plant, household environmental protection, animal husbandry breeding, greenhouse cultivation, agricultural production.

Battery
3.7VDC, 1800mAh
Net weight
1kg
Dimensions
110*190*180mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Combined high-precision gas analyzer(1~5 gases in any combination).

2. Comes with data saving, with host computer software, can be connected to a computer to export data(Excel spreadsheet).

3. Original imported sensor, automatic temperature, zero and full scale drift compensation.

4. High concentration gas shock protection and sensor fault self-test function, safe and reliable.

5. Built-in air pump, improve the detection speed, convenient for small space detection.

6. Optional gas concentration unit(ppm and mg/m³ optional, set before delivery).

7. Two-level sound and light alarm, the alarm value can be set arbitrarily.

8. Restore factory settings with one key. You can switch between Chinese and English on the operation interface.

Technical Parameters:

Model BK-MGA4
Gas Unit Ppm, mg/m³
Detection Mode Pumping type
Alarm Mode Sound and light alarm, vibration alarm
Precision ≤±2%(F.S)
Repeatability ≤±1%
Linear Error ≤±1%
Zero Drift ≤±1%(F.S/year)
Response Time ≤20s
Recovery Time ≤30s
Protection Rating IP65
Battery Capacity 3.7VDC, 1800mAh(with charge)
Working Temperature -20℃～+70℃
Relative Humidity 10%~95%RH(non-condensating)
Data Preservation USB export(standard storage 10000pcs)
Pressure Limitation 86~106 KPa
Maximum Power Consumption 2.5W
Power Supply AC110~220V, 50/60Hz
External Size(W*D*H) 110*190*180mm
Package Size(W*D*H) 500*370*200mm
Net Weight 1kg
Gross Weight 4kg

The following is a list of common gas and conventional range Instruments，other gases can also be customized.

Detection Gas Chemical Formula Optional Range Gas Unit Resolution Response Time
Methane CH4 0~10%/0~50%/0~100% %LEL, %VOL 0.1%LEL/0.01%VOL ≤25s
Flammability EX 0~100% %LEL 0.1%LEL ≤25s
Carbon Monoxide CO 0~500/2000/5000/10000 ppm 0.1ppm/1ppm ≤15s
Hydrogen Sulfide H2S 0~10/20/50/100/500/1000 ppm 0.01/0.1/1ppm ≤15s
Oxygen O2 0`30%/0~100% %VOL 0.01%VOL ≤15s
Carbon Dioxide CO2 0~1000/2000/5000/20% ppm /%VOL 1ppm/0.01%VOL ≤15s
TVOC/VOC VOC 0~10/50/100/500/1000 ppm 0.01/0.1/1ppm ≤20s
Benzene C6H6 0~1/10/50/100/500/1000 ppm 0.01/0.1ppm ≤30s
Xylene C8H10 0~1/10/50/100/500/1000 ppm 0.01/0.1ppm ≤30s
Styrene C8H8 0~20/50/100/500/1000 ppm 0.01/0.1/1ppm ≤30s
Formaldehyde CH2O 0~5/10/20/100/200 Ppm, mg/m3 0.01/0.1ppm, mg/m3 ≤30s
Ammonia Gas NH3 0~50/100/200/500/1000 ppm 0.01/0.1/1ppm ≤30s
Nitrogen gas N2 0~100% %VOL 0.01/0.001%VOL ≤15s
Ozone O3 0~10/20/50/100/200/1000 ppm 0.01/0.1/1ppm ≤20s
Hydrogen Gas H2 0~1000/2000/5000/0~4% ppm /%VOL 1/0.01%VOL ≤20s
Tetrahydrothiophene THT 0~50/100/200 Ppm, mg/m3 0.01ppm, mg/m3 ≤30s
Nitrogen Oxide NOX 0~100/200/500/1000 Ppm, mg/m3 0.01/0.1ppm, mg/m3 ≤20s
Nitric Oxide NO 0~100/200/500/1000 Ppm, mg/m3 0.01/0.1ppm, mg/m3 ≤20s
Nitrogen Dioxide NO2 0~100/200/500/1000 Ppm, mg/m3 0.01/0.1ppm, mg/m3 ≤20s
Sulfur Dioxide SO2 0~100/200/500/1000 Ppm, mg/m3 0.01/0.1ppm, mg/m3 ≤20s
Hydrogen phosphide PH3 0~5/10/20/50/100 ppm 0.01ppm ≤30s
Ethylene C2H4 0~50/100/200/500/1000 ppm 0.01/0.1/1ppm ≤15s
Hydrogen Chloride HCL 0~20/50/100 ppm 0.01/0.1ppm ≤25s
Chlorine Gas CL2 0~10/20/50/100/200 ppm 0.01/0.1ppm ≤20s
Chlorine Dioxide CLO2 0~20/50/100/500/1000 ppm 0.01/0.1/1ppm ≤30s
Trichloroethylene CYAN 0~20/50/100 ppm 0.01/0.1ppm ≤25s
Cyanide Compounds CYNA 0~20/100/200 ppm 0.01/0.1ppm ≤30s
Hydrogen Cyanide HCN 0-20/100/200 ppm 0.01/0.1ppm ≤30s
Ethylene Oxide ETO 0~50/100/200/500/1000 ppm 0.01/0.1/1ppm ≤30s
Hydrogen Peroxide H2O2 0~20/50/100/200/1000 ppm 0.01/0.1/1ppm ≤30s
Hydrogen Arsenide ASF3 0~5/10/20ppm ppm 0.01ppm ≤30s
Hydrogen Fluoride HF 0~5/10/20ppm ppm 0.01ppm ≤30s
Fluorine Gas F2 0~5/10/20ppm ppm 0.01ppm ≤30s
The details

Specifications

Model
BK-MGA4
Gas Unit
Ppm, mg/m³
Detection Mode
Pumping type
Alarm Mode
Sound and light alarm, vibration alarm
Precision
≤±2%(F.S)
Repeatability
≤±1%
Linear Error
≤±1%
Zero Drift
≤±1%(F.S/year)
Response Time
≤20s
Recovery Time
≤30s
Protection Rating
IP65
Battery Capacity
3.7VDC, 1800mAh(with charge)
Working Temperature
-20℃～+70℃
Relative Humidity
10%~95%RH(non-condensating)
Data Preservation
USB export(standard storage 10000pcs)
Pressure Limitation
86~106 KPa
Maximum Power Consumption
2.5W
Power Supply
AC110~220V, 50/60Hz
External Size(W*D*H)
110*190*180mm
Package Size(W*D*H)
500*370*200mm
Net Weight
1kg
Gross Weight
4kg
