Biological Safety Cabinet

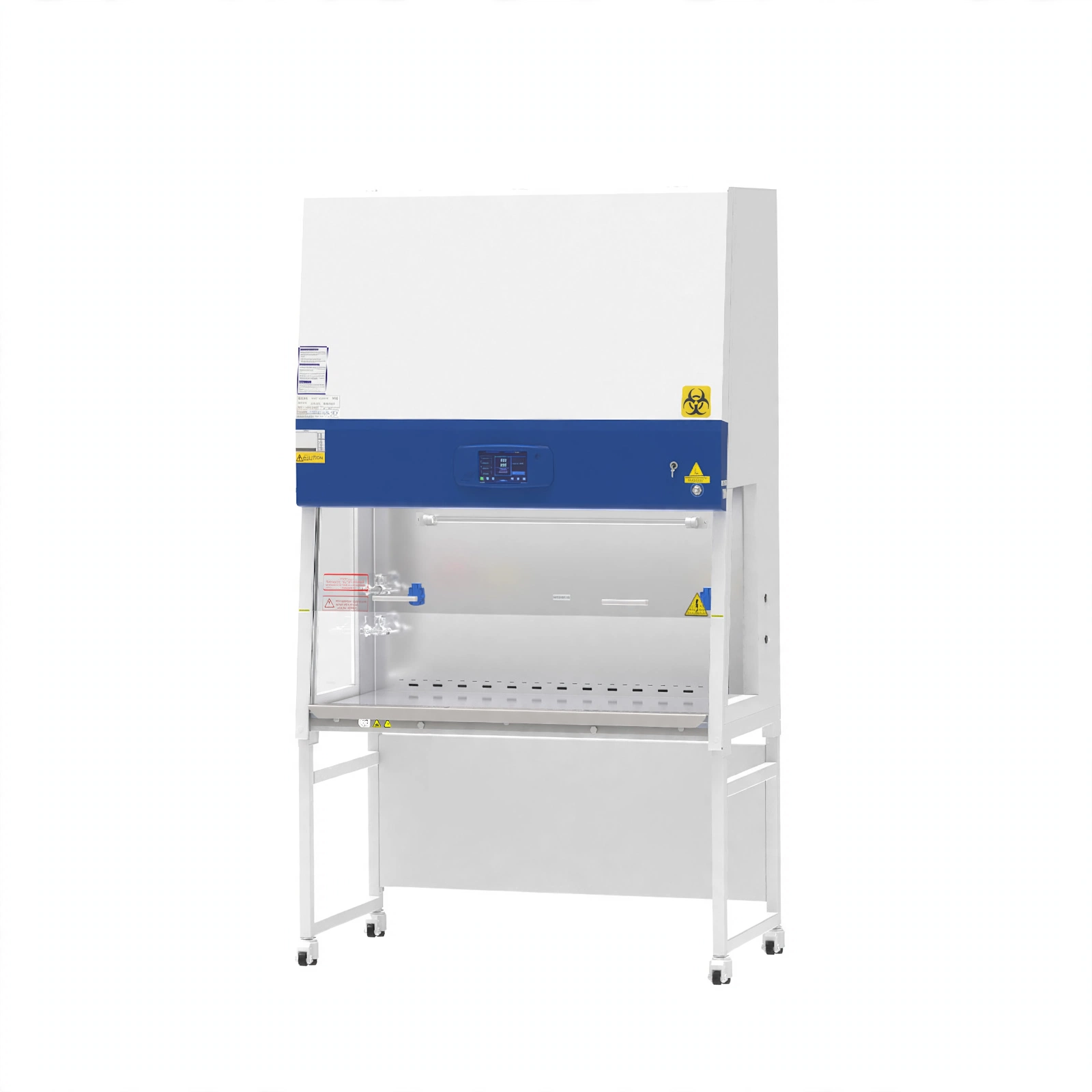

New EN Certified Biological Safety Cabinet BSC-3FA2-HA BSC-4FA2-HA

Model BSC-3FA2-HA BSC-4FA2-HA

This cabinet defined as class II A2 type microbiological safety cabinet. It totally meets that international standard for biological cabinet EN 12469:2000 standard. Microbiological safety cabinet is a kind of negative pressure filtration system for protecting operator, the laboratory environment and work material.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Technical Parameters:

Model

 BSC-3FA2-HA BSC-4FA2-HA

External Size(W*D*H)

 1087*800*2260mm 1383*800*2260mm

Internal Size(W*D*H)

 980*600*650mm 1280*600*650mm

Work Surface Height

750mm

Max Opening

500mm

Tested Opening

200mm

Airflow Volume

 Inflow 370m³/h(218cfm) 490m³/h(289cfm)
Down Flow 65%: 690m³/h(406cfm) 65%: 910m³/h(536cfm)
Exhaust 35%: 370m³/h(218cfm) 35%: 490m³/h(289cfm)

Front Window

Manual and electric, glass thickness>5mm, anti-ultraviolet

ULPA Filter

2pcs, filtration efficiency for 0.12μm, particles≥99.9995%

Illumination

≥1000Lux

Noise

EN12469≤65dB

Display

Color touch screen

European Standard Socket

230V, 3A

Power Supply

AC230V, 50/60HZ

Rated Power

 1100W 1200W

Alarm

Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure

Motor

AC motor, 230V acceptable, adjustable speed, high efficiency, low power

Material

Working area: 304 stainless steel, side window glass;

Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating

LED Lamp

 12W*2 14W*2

UV Lamp

 20W 30W

Standard Accessory

Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, S.S. water tap*1, S.S. gas tap*1, Drain ball valve*1, European standard socket*2, Remote control

Optional Accessory

Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, S.S. water tap*1, S.S. gas tap*1, Foot switch

Package Size(W*D*H)

 1240*1060*1880mm 1530*1060*1880mm

Gross Weight

 270kg 345kg
The details

Specifications

Ask our team for the full specification sheet for this model.
