Biological Safety Cabinet

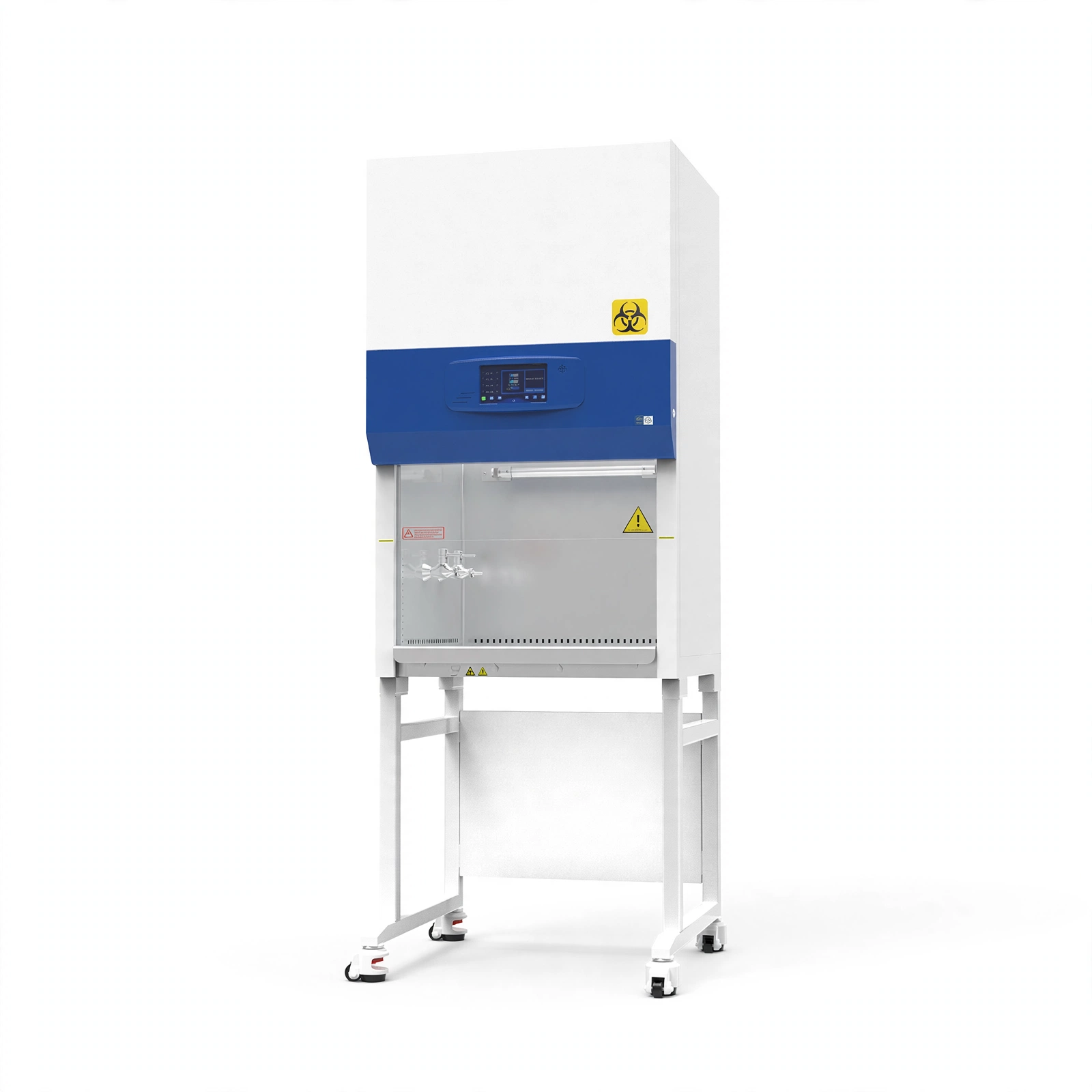

NSF Certified Class II A2 Biological Safety Cabinet BSC-2FA2

Model BSC-2FA2

The cabinet is separated from the base. The height of the adjustable base can be customized.

Power
≤500W
Noise
NSF 49≤67 dB
Net weight
Armrest, Airflow test…
Dimensions
700*650*1920mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

ADVANTAGE

1. Motorized front window.

2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

3. The power-on password can be set to prevent mis-operation by irrelevant personnel.

2. EC Fan, automatically adjust the wind speed.

3. With power-off memory function, the state before power-off will be restored after power-on and there will be visual prompts and alarms.

4. The integrated design of the operation area makes it easy to disassemble and clean.

5. The cabinet is separated from the base. The height of the adjustable base can be customized.

6. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets.

8. The front window closes the trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.

9. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable.air speed adjustable with filter block.

TECHNICAL PARAMETERS

Model BSC-2FA2
External Size（W*D*H） 700*650*1920mm
Internal Size（W*D*H） 600*500*540mm
Work Surface Hight 750mm
Max Opening 370mm
Tested Opening Safety height 254mm（10″）
Inflow 290m³/h  (170cfm）
Downflow 55%: 360m³/h  (211cfm）
Exhaust 45%: 290m³/h  (170cfm）
Front Window Two-layer laminated toughened glass>6mm, Anti UV
ULPA Filter ≥99.9995% efficiency at 0.12μm
Filter Guard Type Aluminum alloy frame
Noise NSF 49≤67 dB
Illumination ≥1000Lux
Display Capacitive touch screen
Waterproof Socket Two, Total consumption≤500W
Ground Resistance ≤0.1Ω
Power Supply AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption ≤500W
Alarm Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Motor One EC fan, 115V＆230V acceptable, Speed adjustable, High efficiency and low power consumption
Material Working area: 304 stainless steel
UV Lamp Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
LED Lamp 15W
Standard Accessory 10W*2
Optional Accessory LED Lamp*2, UV lamp, Base stand, Drain valve, Waterproof sockets
Net Weight Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, SS water tap*1& gas tap*1
Package Size（W*D*H） 150kg
Gross Weight Carton: 800*850*1350mm
External Size（W*D*H） 170kg
The details

Specifications

Model
BSC-2FA2
External Size（W*D*H）
700*650*1920mm
Internal Size（W*D*H）
600*500*540mm
Work Surface Hight
750mm
Max Opening
370mm
Tested Opening
Safety height 254mm（10"）
Inflow
290m³/h (170cfm）
Downflow
55%: 360m³/h (211cfm）
Exhaust
45%: 290m³/h (170cfm）
Front Window
Two-layer laminated toughened glass>6mm, Anti UV
ULPA Filter
≥99.9995% efficiency at 0.12μm
Filter Guard Type
Aluminum alloy frame
Noise
NSF 49≤67 dB
Illumination
≥1000Lux
Display
Capacitive touch screen
Waterproof Socket
Two, Total consumption≤500W
Ground Resistance
≤0.1Ω
Power Supply
AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption
≤500W
Alarm
Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Motor
One EC fan, 115V＆230V acceptable, Speed adjustable, High efficiency and low power consumption
Material
Working area: 304 stainless steel
UV Lamp
Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
LED Lamp
15W
Standard Accessory
10W*2
Optional Accessory
LED Lamp*2, UV lamp, Base stand, Drain valve, Waterproof sockets
Net Weight
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, SS water tap*1& gas tap*1
Package Size（W*D*H）
150kg
Gross Weight
Carton: 800*850*1350mm
External Size（W*D*H）
170kg
