Biological Safety Cabinet

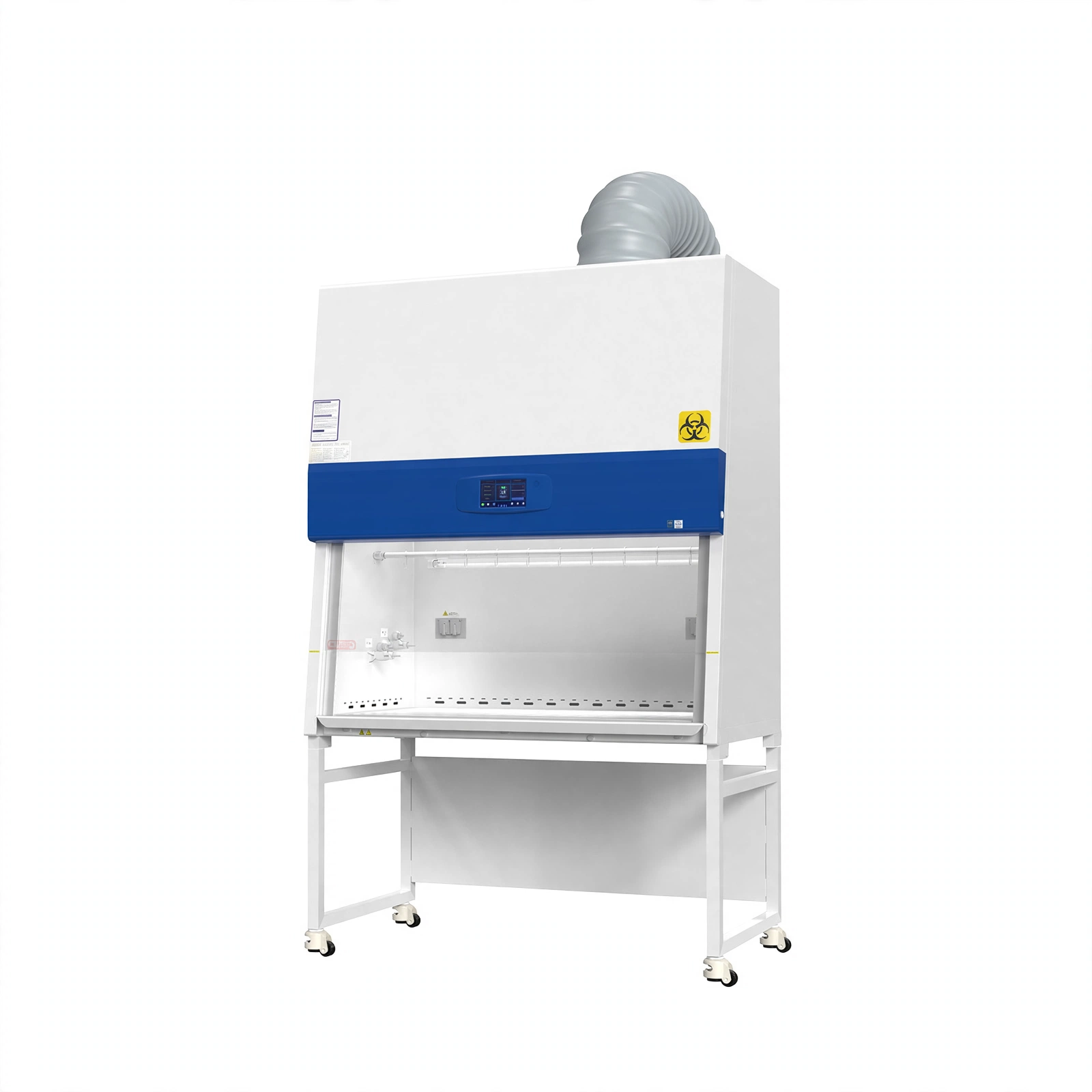

NSF Certified Class II B2 Biological Safety Cabinet BSC-4FB2-NA BSC-4FB2-GL

Model BSC-4FB2-NA BSC-4FB2-GL

This product belong to Class II B2 Biosafety Cabinet(BSC) which fully meets the requirements of US Standard ANSI/NSF49:2016. BSC is a kind of negative pressure filtration system for protecting operator, laboratory environment and experiment materials.

Power
400W
Noise
NSF49≤67dB/EN12469≤65…
Dimensions
1383*775*2250mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.

2. The power-on password can be set to prevent mis-operation by irrelevant personnel.

3. Automatically adjust the wind speed.

4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.

5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.

6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.

Technical Parameters:

Model                 BSC-4FB2-NA BSC-4FB2-GL
External Size(W*D*H)

1383*775*2250mm
Internal Size(W*D*H)

1210*600*660mm
Tested Opening

Safety height 200mm(8″)
Max Opening

470mm
Exhaust Airflow Volume

100%: 1320m³/h(776cfm)
Front Window

Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
ULPA Filter

Two, 99.995% efficiency at 0.12μm, filter life indicator
Filter Guard Type

Aluminum alloy frame
Noise

NSF49≤67dB/EN12469≤65dB
Illumination

≥1000Lux
Display

Color touch screen
Waterproof Socket

2, Total consumption: ≤500W
Tap

Water tap*1, Gas tap *1
Ground Resistance

≤ 0.10Ω
Power Supply

AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption

400W
Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Motor

EC motor, 115V&230V acceptable, Speed adjustable, high efficiency and low power consumption
Material

Working area: 304 stainless steel

Frame and decorative plate: cold-rolled steel with anti-bacteria power coating

UV Lamp

30W

Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination

Illuminating Lamp

20W*2

LED lamp
Standard Accessory

LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control
Optional Accessory

Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Exhaust duct
Package Size(W*D*H)

1540*1080*1900mm
Gross Weight

340kg

Note: Customers need to prepare an external exhaust fan or exhaust system by themselves.

The details

Specifications

Model
BSC-4FB2-NA / BSC-4FB2-GL
External Size(W*D*H)
1383*775*2250mm
Internal Size(W*D*H)
1210*600*660mm
Tested Opening
Safety height 200mm(8")
Max Opening
470mm
Exhaust Airflow Volume
100%: 1320m³/h(776cfm)
Front Window
Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
ULPA Filter
Two, 99.995% efficiency at 0.12μm, filter life indicator
Filter Guard Type
Aluminum alloy frame
Noise
NSF49≤67dB/EN12469≤65dB
Illumination
≥1000Lux
Display
Color touch screen
Waterproof Socket
2, Total consumption: ≤500W
Tap
Water tap*1, Gas tap *1
Ground Resistance
≤ 0.10Ω
Power Supply
AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption
400W
Alarm
Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Motor
EC motor, 115V&230V acceptable, Speed adjustable, high efficiency and low power consumption
Material
Working area: 304 stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp
30W
UV Lamp
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp
20W*2
Illuminating Lamp
LED lamp
Standard Accessory
LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control
Optional Accessory
Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, Exhaust duct
Package Size(W*D*H)
1540*1080*1900mm
Gross Weight
340kg
