New Products

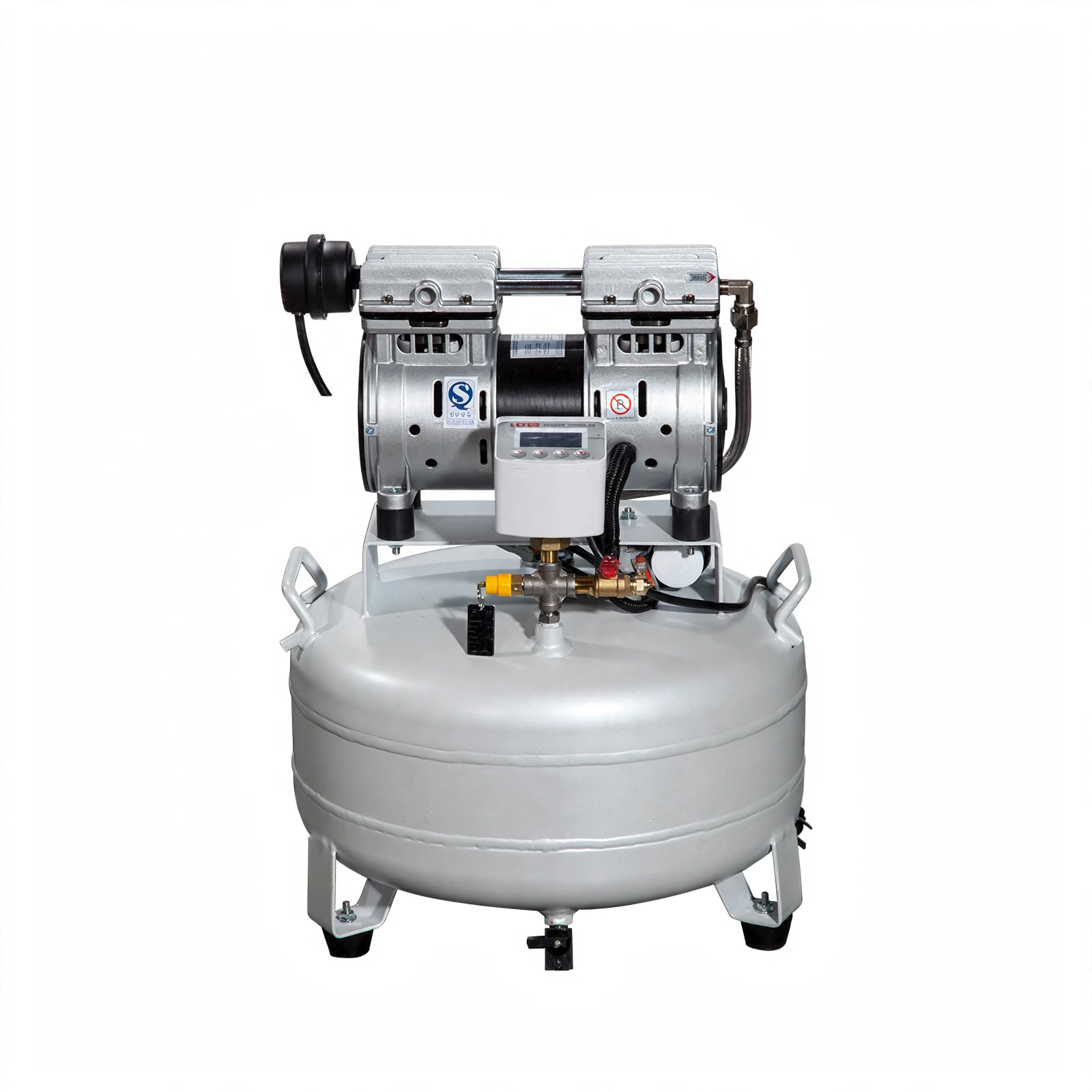

Oil Free Air Compressor

Model HY-100 / HY-200 / HYT-200

Features Pure oil-free: pure oil-free design, the output gas does not contain oil, and protects the terminal gas equipment. Anti-rust of tank body: After finishing the inner wall of the storage tank, spray plastic treatment, anti-corrosion and anti-bacterial, to ensure the safety of gas equipment. Automatic control: The pressure switch automatically controls the start and stop of the machine. Easy to operate: it can be used after power on. Simple maintenance: easy maintenance and easy to use. Muffler box, drying system and filtration system can be added according to user needs to reduce noise, increase pressure dew point and improve filtration accuracy.

Power
550W / 750W / 1500W
Net weight
24kg / 37kg / 70kg
Dimensions
420*420*600mm / 450*4…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters

Model HY-100 HY-200 HYT-200
Max Pressure

0.75MPa

Max Gas Output 100L/min 150L/min 300L/min
Rotation Speed

1450rpm

Gas Tank Capacity 24L 38L 60L
Gas Outlet

φ8mm

Power 550W 750W 1500W
Power Supply

Standard: 220V 50Hz, optional: 110V 60Hz

Dimension 420*420*600mm 450*450*750mm 690*390*660mm
Net Weight 24kg 37kg 70kg
Packing Size 470*470*650mm 470*470*800mm 850*480*870mm
Gross Weight 26kg 40kg 78kg
The details

Specifications

Model
HY-100 / HY-200 / HYT-200
Max Pressure
0.75MPa
Max Gas Output
100L/min / 150L/min / 300L/min
Rotation Speed
1450rpm
Gas Tank Capacity
24L / 38L / 60L
Gas Outlet
φ8mm
Power
550W / 750W / 1500W
Power Supply
Standard: 220V 50Hz, optional: 110V 60Hz
Dimension
420*420*600mm / 450*450*750mm / 690*390*660mm
Net Weight
24kg / 37kg / 70kg
Packing Size
470*470*650mm / 470*470*800mm / 850*480*870mm
Gross Weight
26kg / 40kg / 78kg
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.

Talk to our team
Request a quote
