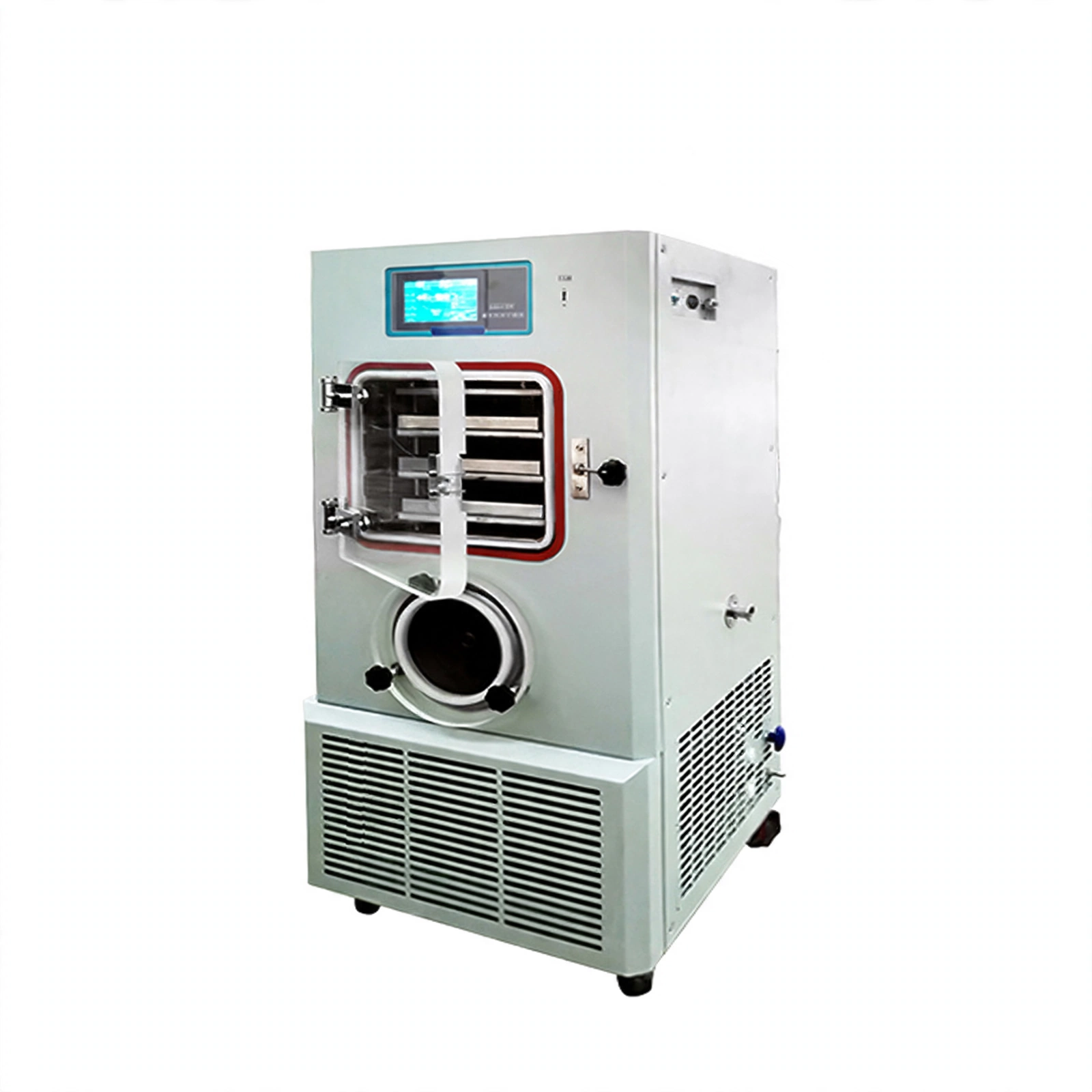

With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BK-FD20S(Standard) | BK-FD20T(Stoppering) | BK-FD30S(Standard) | BK-FD30T(Stoppering) | |
|
Freeze Drying Area |
0.3m² | 0.2m² | 0.4m² | 0.3m² | |
|
Shelf Temperature |
-55℃~+70℃(no-loading) |
||||
|
Cold Trap Temperature |
<-80℃(no-loading) |
||||
|
Vacuum Degree |
≤1Pa(no-loading) |
||||
|
Water Capture Capacity |
≥6 |
≥8 |
|||
|
Cold Trap Volume |
14L |
/ | 26L | ||
|
Cold Trap Size(Diameter*H) |
Φ200*460mm |
/ | Φ320*520mm | ||
|
Drying Chamber Size(W*D*H) |
330*325*470mm |
340*500*420mm | 480*380*540mm | ||
|
Shelf&Tray Size(W*D*H) |
Shelf: 400*270*18mm |
Shelf: 300*340*18mm |
|||
|
Qty. of Shelf&Tray |
Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | |
|
Sample Loading Capacity(Liquid) |
3L | 2L | 4L | 3L | |
|
Height Between Trays |
70mm | 100mm | 50mm | 70mm | |
|
Tray Temperature Difference |
±1℃ |
||||
|
Refrigerant |
R404A+R23 |
||||
|
Condenser Cooling Mode |
Air cooling |
||||
|
Defrost Mode |
Electric defrosting |
Natural defrosting(optional electric defrosting) | Electric defrosting | ||
|
Stoppering Mode |
/ | Automatic | / | Automatic | |
|
Total Qty. of Vial |
Φ22mm | / | 440 | / | 654 |
| Φ16mm | / | 868 | / | 1200 | |
| Φ12mm | / | 1554 | / | 2187 | |
|
Vacuum Pump |
4L/S(14.4m³/h) |
6L/S(22m³/h) |
|||
|
Electric Defrosting Consumption |
800W | 800W | / | 1000W | |
|
Silicone Oil Heating Rods Consumption |
800W | 800W | 1000W | 1000W | |
|
Hydraulic Pressure Station Consumption |
/ | 500W | / | 1000W | |
|
Total Consumption |
3KW | 4KW | 4.5KW | 5.5KW | |
|
Power Supply |
AC220V, 50Hz/60Hz(single phase) |
||||
|
Main Body Weight |
300kg |
400kg |
|||
|
External Size(W*D*H) |
1033*781*1580mm |
928*825*1366mm | 1272*853*1679mm | ||
|
Packing Size(W*D*H)/Gross Weight |
Main Body | 1150*900*1780mm/400kg | 1150*900*1905mm/400kg | 1050*945*1570mm/450kg | 1392*995*1880mm/651kg |
| Vacuum Pump |
950*420*500mm(37kg) |
790*340*460mm(57kg) | 790*300*470(52kg) | ||
Optional: Import vacuum pump, Vacuum pump anti-return value, Eutectic point tester, Oil mist filtration system, Vacuum adjustment device.
Standard: USB port.
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
