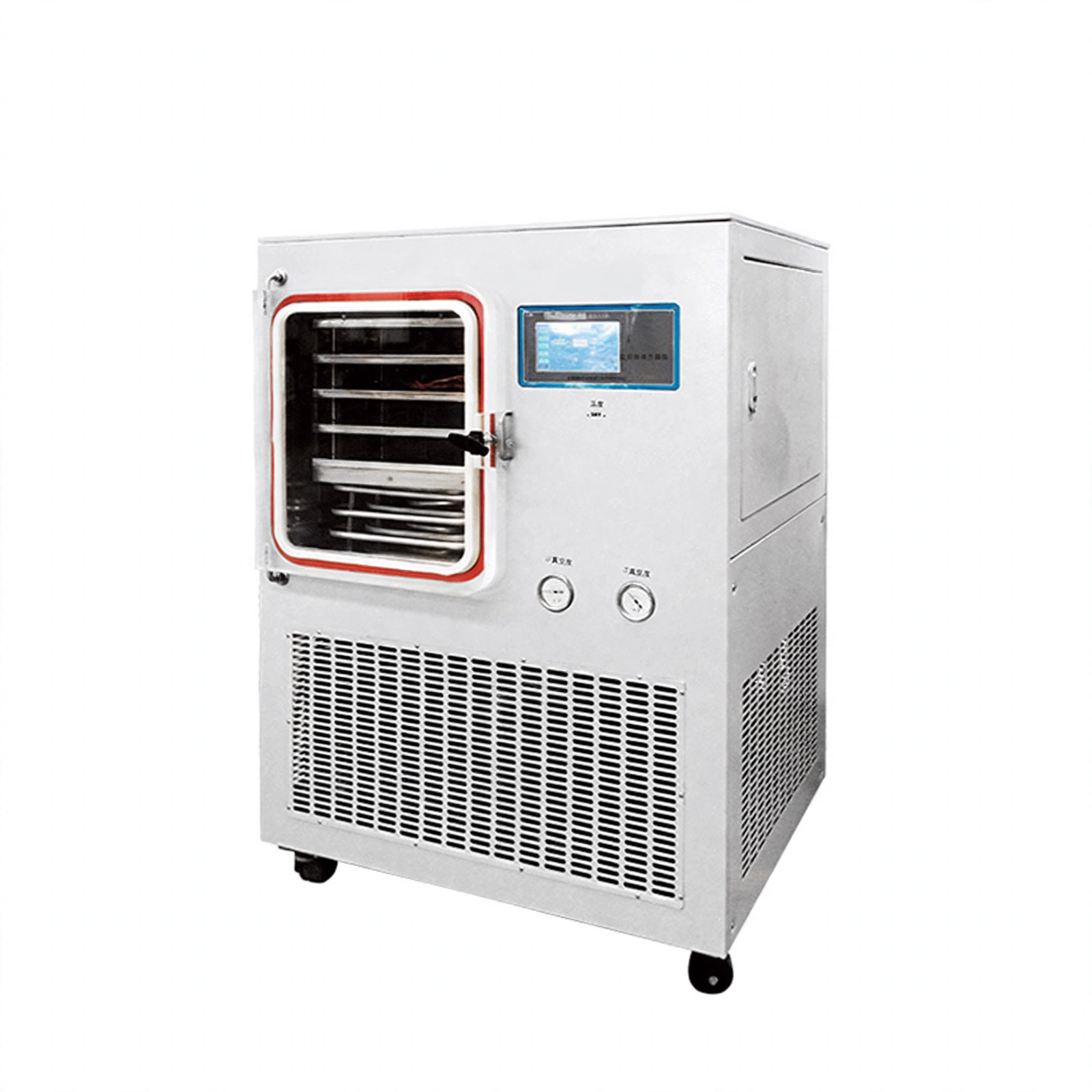

With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BK-FD50S(Standard) | BK-FD50T(Stoppering) | BK-FD100S(Standard) | BK-FD100T(Stoppering) | |
|
Freeze Drying Area |
0.7m² | 0.5m² | 1.03m² | 1.15m² | |
|
Shelf Temperature |
-55℃~+70℃(no-loading) |
||||
|
Cold Trap Temperature |
<-80℃(no-loading) |
||||
|
Vacuum Degree |
≤1Pa(no-loading) |
||||
|
Water Capture Capacity |
≥10kg |
≥15kg |
|||
|
Cold Trap Volume |
/ |
70L |
|||
|
Cold Trap Size(Diameter*H) |
/ |
Φ400*560mm |
|||
|
Drying Chamber Size(W*D*H) |
410*510*590mm | 620*510*580mm | 410*580*520mm | 700*590*760mm | |
|
Shelf&Tray Size(W*D*H) |
Shelf: 480*360*18mm Tray: 475*355*25mm |
Shelf: 410*410*18mm Tray: 405*405*25mm |
Shelf: 480*360*18mm Tray: 475*355*25mm |
Shelf: 480*600*18mm Tray: 475*595*25mm |
|
|
Qty. Of Shelf&Tray |
Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | Shelf: 6+1; Tray: 6 | Shelf: 4+1; Tray: 4 | |
|
Sample Loading Capacity(Liquid) |
7L | 5L | 10L | 11L | |
|
Height Between Trays |
50mm/70mm(Optional) | 100mm | 70mm | 100mm | |
|
Tray Temperature Difference |
±1℃ |
||||
|
Refrigerant |
R404A+R23 |
||||
|
Condenser Cooling Mode |
Air cooling |
||||
|
Defrost Mode |
Natural defrosting(optional electric defrosting) | Electric defrosting | Electric defrosting | Electric defrosting | |
|
Stoppering Mode |
/ | Automatic | / | Automatic | |
|
Total Qty. of Vial |
Φ22mm | / | 1050 | / | 2460 |
| Φ16mm | / | 2058 | / | 4788 | |
| Φ12mm | / | 3075 | / | 8624 | |
|
Vacuum Pump |
8L/S(29m³/h) |
15L/S(54m³/h) |
|||
|
Electric Defrosting Consumption |
/ | 1000W |
1500W |
||
|
Silicone Oil Heating Rods Consumption |
1000W |
1600W |
|||
|
Hydraulic Pressure Station Consumption |
/ | 1000W | / | 1500W | |
|
Total Consumption |
5.5KW | 6.5KW | 6.5KW | 7.5KW | |
|
Power Supply |
AC380V, 50Hz/60Hz(three phase); BK-FD50S: AC220V, 50Hz/60Hz(single phase) |
||||
|
Main Body Weight |
600kg | 800kg | 700kg | 1000kg | |
|
External Size(W*D*H)mm |
1008*823*1420 | 1405*911*1983 | 1190*876*1727 | 1823*1144*2104 | |
| Packing Size(W*D*H)mm | Main Body | 1130*950*1620mm/700kg | 1530*1030*2190mm/900kg | 1310*1000*1930mm/850kg | 1940*1270*2220mm/1200kg |
| Gross Weight | Vacuum Pump | 790*330*445mm(73kg) | 830*370*600mm(88kg) | 785*455*300mm(95kg) | 800*500*500mm(70kg) |
Optional: Import vacuum pump, Vacuum pump anti-valve, Eutective point tester, Oil mist filtration system, Vacuum adjustment device.
Standard: USB port.
